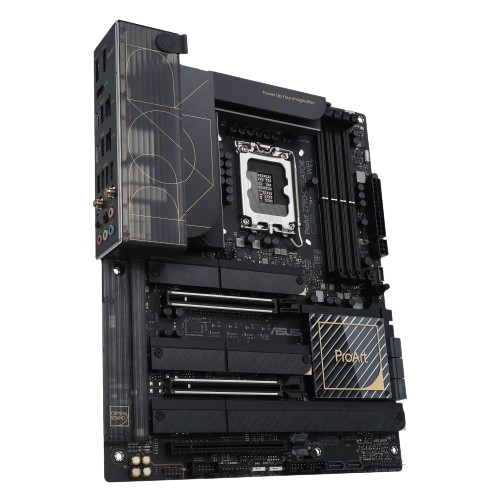

ASUS PROART B760-CREATOR

0ASUS PROART B760-CREATOR
 Intel Socket LGA1700 for 13th Gen Intel Core Processors & 12th Gen Intel Core
 Pentium Gold and Celeron Processors
 Intel B760 Chipset
 Memory: 4 x DIMM
 Max. 192GB
 DDR5 Non-ECC
 Dual Channel Memory Architecture
 Graphics: 1 x HDMTM port
 1 x DisplayPort port
 Expansion Slots: Intel 13th & 12th Gen Processors: 1 x PCIe 5.0/4.0/3.0 x16 slot
 Intel B760 Chipset: 1 x PCIe 4.0 x16 slot (supports x4 mode)
 1 x PCIe 3.0 x1 slot
 Storage: Total supports 3 x M.2 slots and 4x SATA 6Gb/s ports
 Intel 13th & 12th Gen Processors: M.2_1 slot (Key M)
 type 2242/2260/2280/22110
 Intel 13th & 12th Gen processors support PCIe 4.0 x4 mode
 Intel B760 Chipset: M.2_2 slot (Key M)
 type 2242/2260/2280/22110 (supports PCIe 3.0 x4 mode)
 M.2_3 slot (Key M)
 type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
 Ethernet: 1 x Realtek 2.5Gb Ethernet
 1 x Intel 1Gb Ethernet
 Wireless & Bluetooth: M.2 slot only (Key E
 CNVi & PCIe)-Wi-Fi module is sold separately
 USB: Rear USB (Total 9 ports)
 1 x USB 3.2 Gen 2 (10G) Type-C port
 4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A)
 4 x USB 2.0 ports (4 x Type-A)
 Front USB (Total 7 ports)
 1 x USB 3.2 Gen 2x2 (20G) connector (supports USB Type-C with 60W PD/QC4+)
 1 x USB 3.2 Gen 1 (5G) header supports additional 2 x USB 3.2 Gen1 ports
 2 x USB 2.0 headers support additional 4 USB 2.0 ports
 Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC
 Back Panel I/O Ports: 1 x USB 3.2 Gen 2 (10G) port (1 x USB Type-C)
 4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A)
 4 x USB 2.0 ports (4 x Type-A)
 1 x DisplayPort 1 x HDMI port
 1 x Realtek 2.5Gb Ethernet port
 1 x Intel 1Gb Ethernet port
 5 x Audio jacks
 1 x Optical S/PDIF out port
 Miscellaneous: 3 x Addressable Gen 2 headers
 1 x AURA RGB header
 1 x Clear CMOS header
 1 x COM Port header
 1 x Front Panel Audio header (AAFP)
 1 x M.2 slot (Key E)
 1 x SPI TPM header (14-1pin)
 1 x 20-5 pin System Panel header
 1 x Thermal Sensor header
 1 x Thunderbolt header
 90MB1F20-M0EAY0
