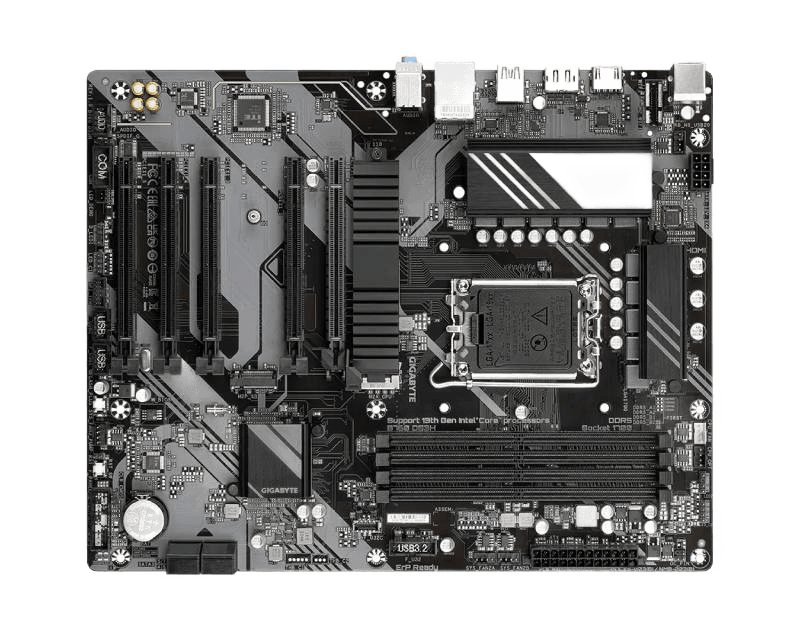

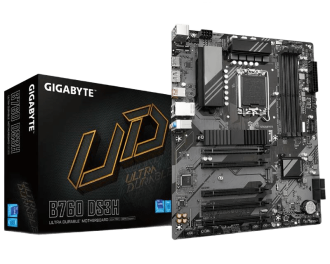

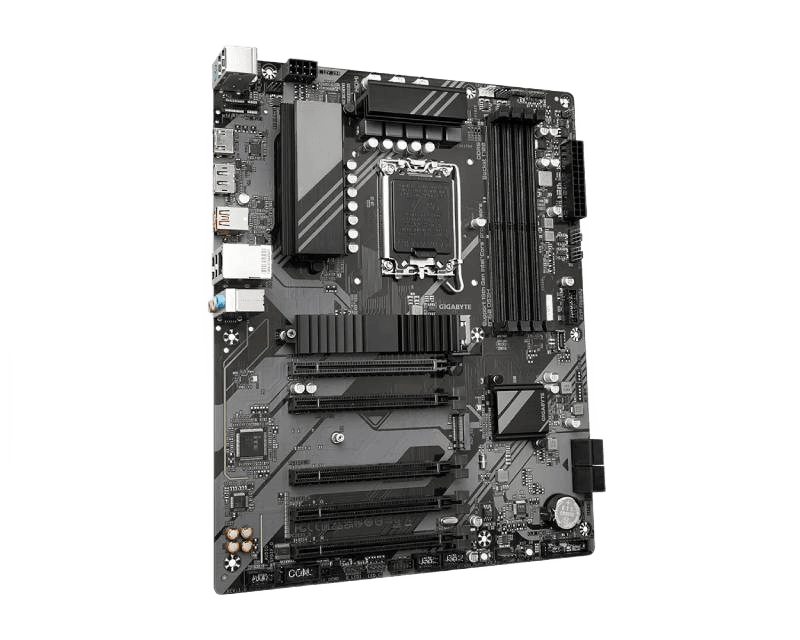

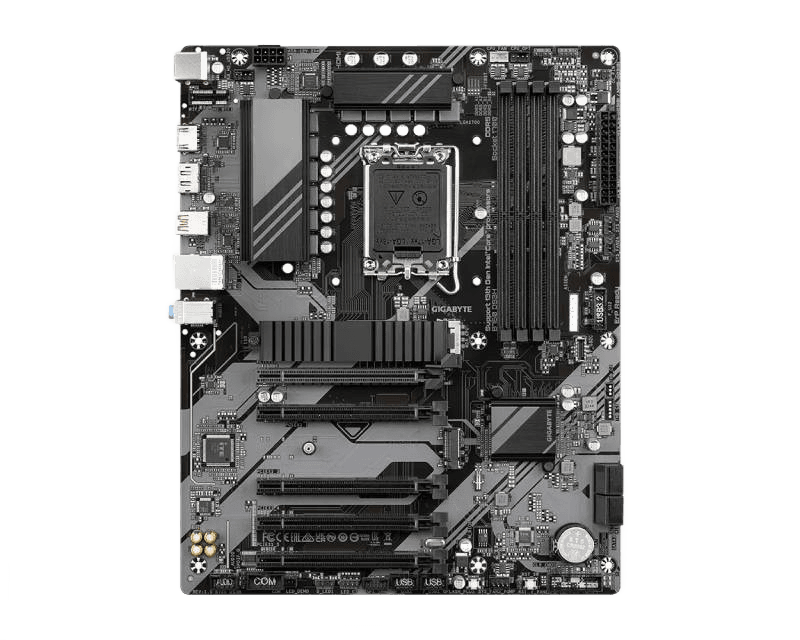

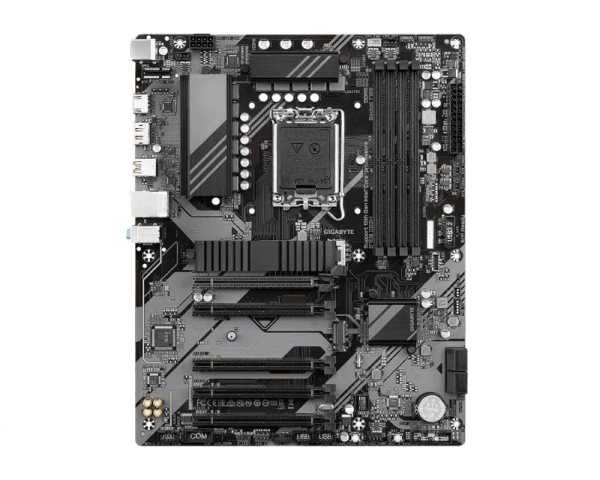

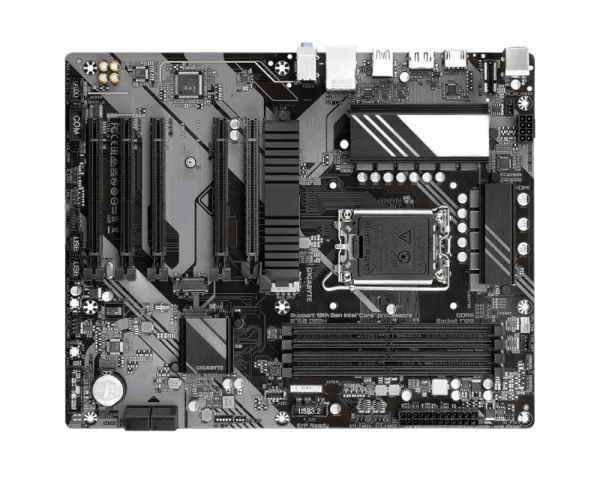

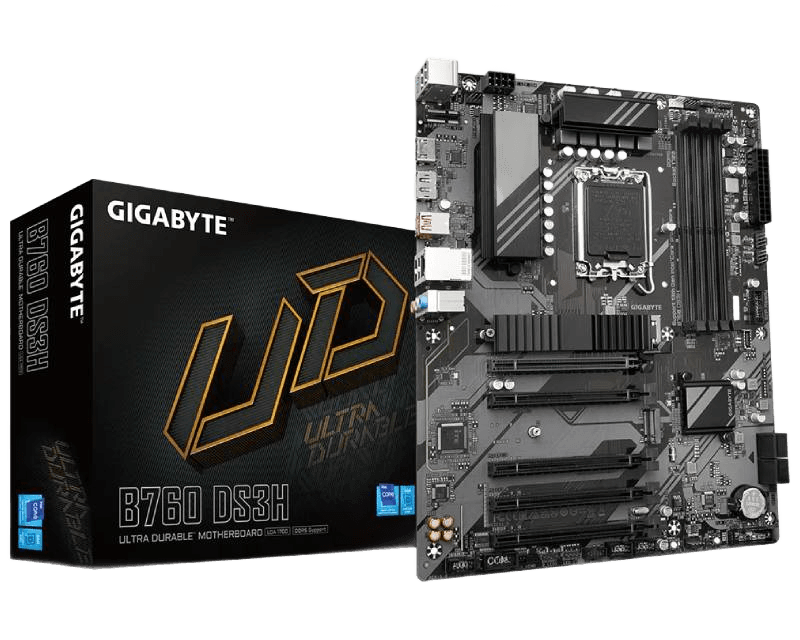

B760 DS3H REV. 1.x

Варијанта:

− +

7 550 ден.

0 ден.

Не е достапен

Бренд:

Gigabyte
Шифра:

INS-38-3281-E
Достапен за порачка:

Не е достапен

Да
Chipset:

Intel B760
RAM type:

DDR5
RAM DIMMs:

2
m.2:

5
USB Type-C ports:

1
Dimensions:

305mm x 244mm
Note:

To use certain internal connectors, additional brackets or connectors on the housing are required
Warranty:

36 months
Supported technologies:

Q-FLASH PLUS, GIGABYTE CONTROL CENTER
DisplayPort ports:

1x DisplayPort 1.2
HDMI connectors:

1x HDMI 2.0
Condition:

Unused
Package:

Norton Internet Security, Lan Bandwidth Management Software
Graphics:

Using the processor graphics
Model:

Realtek
Processor bearing (Socket):

Intel 1700

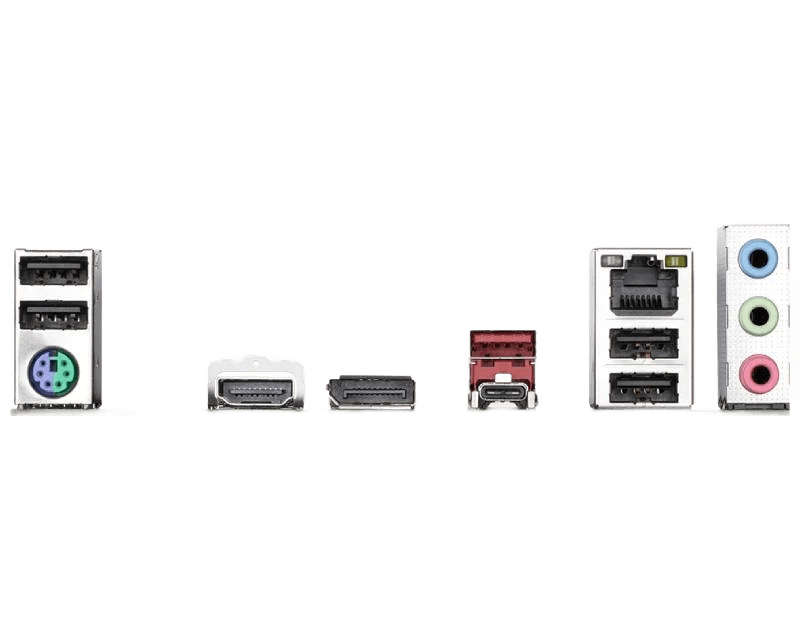

USB ports:

1x USB 5GBPS (3.2 GEN 1), 4x USB 2.0
Audio:

1x Front Panel Audio, 1x S / PDIF output
Other connections:

1 x Front Panel Header, 1 x Clear CMOS Jumper, 1 x Trusted Platform PLUS button, 2 x RGB LED Headers, 1 x Reset Jumper, 2x Address Fan Headers, 1 x Reset Button, 1x CPU Fan / Water Cooling Pump Header, 3x System Fan Header, 1x System Fan / Water Cooling Pump Header
USB:

2 x Support for 1 USB 2.0 port, 1 x Support for 1 USB 5Gbps port
USB-C ports:

1x USB 20GBPS (3.2 GEN 2x2)
Maximum total memory:

192GB
PCI Express x16 slot:

1x PCI Express 4.0 (X16 Mode), 4x PCI Express 3.0 (X1 Mode)
SATA ports:

SATA III 6GBPS
Raid:

Raid 0, Raid 1, Raid 5, Raid 10
Channel number:

8 (7.1)
PS / 2:

1 (keyboard or mouse)
Voltage connections:

1 x 24 PIN Main Power Connector, 1 x 8-pin ATX 12V Power Connector
USB-C:

1 x Support for 1 USB 5Gbps port
Other slots:

2x M.2 Slot, 4x SATA III

Начин на испорака

Бесплатна достава во градско подрачје на Скопје за нарачка со вредност поголема од 10000 денари
Подигнување од нашата продавница

Начин на плаќање

Плаќање при подигнување
Фактурно плаќање

Сподели:

Basic characteristics - Socket: Intel 1700 Chipset: Intel B760 Graphics: Using the memory type: DDR5 Memory slots: 4 Supported memory: 4.000mt / s, 4.800mt / s, 5,200mt / s (o.c.), 5.600mt / s (O.c.), 5.800mt / s (o.c.), 6,000mt / s (o.c.), 6,200mt / s (o.c.), 6.600mt / s (o.c.), 7.000mt / s (o.c.), 7.3.00mt / s (O.c.), 7.400mt / s (o.c.), 7.600mt / s (O.C.) Maximum Memory: 192GB Memory mode, ECC Support, Extreme Memory Profile (XMP), Unbuffered ECC memory support - PCI Express X16 Slot: 1x PCI Express 4.0 (x16 mode), 4x PCI Express 3.0 (X1 Mode) PCI Slot: 5 SATA Connections: SATA III 6GBPS Number M.2, RAID 1, RAID 10, RAID 5 Network - Wired network (LAN): 1000Base-T (Gigabit) Model: Realtek Model: Realtek Note: High Definition, Number of DisplayPort ports: 1 DISPLAYPORT 1.2 HDMI ports: 1 HDMI ports: 1x HDMI 2.0 PS / 2: 1 (keyboard or Mouse) Total USB ports: 6 Total USB-C connections: 1 USB USB 2.0 USB-C Connections: 1x USB 20Gbps (3.2 Gen 2x2) RJ-45 (LAN): 1 Audio: 3x 3.5mm Interior connectors - Voltage connections: 1 x 24 PIN Main Power Connector, 1 x 8-pin ATX 12V Power Connector USB: 1 USB 5GBPS port, 1 USB 5GBPS port audio: 1x S / PDIF output Serial port: 1 Other connections: 1 x Clear CMOS Jumper, 1 x CPU Fan Header, 1 x Front Panel Header, 1 x Reset Button, 1 x RESET Jumper, 1 x Trusted Platform Module (TPM), 1x CPU Fan / Water Cooling Pump Header, 1x Header, 2 x RGB LED Strip Headers, 2x Addressable LED Strip Headers, 3x System Fan Header Note: For use of certain internal connectors, additional brackets or accessories are required: Gigabyte Control Center, Q-Flash, Q-Flash Plus Physical Features - Format: ATX Dimensions: 305mm x 244mm Packaging: LAN Bandwidth Management Software, Norton Internet Security Condition: Unused Complaint Period - Commercial Period: 36 months
