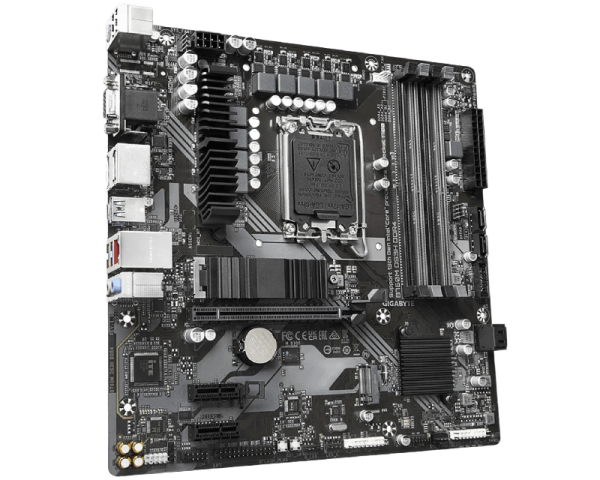

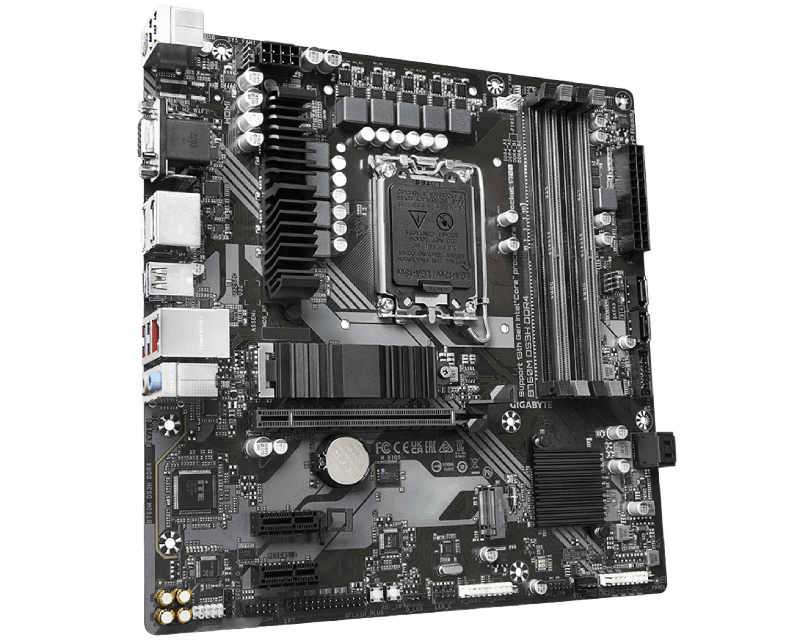

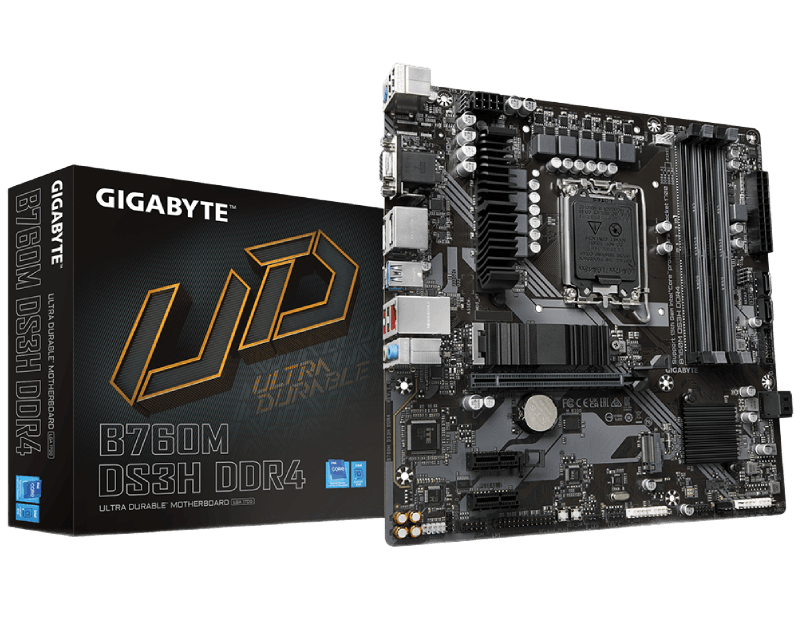

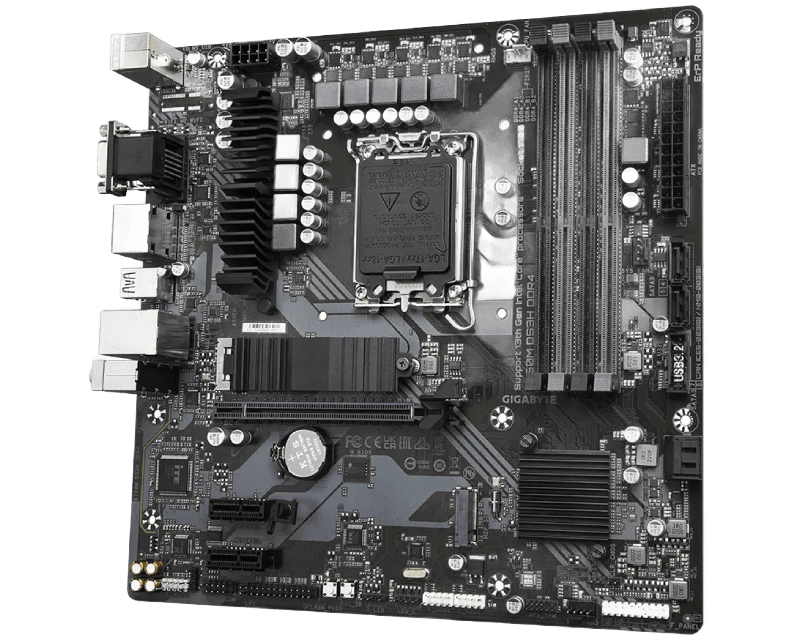

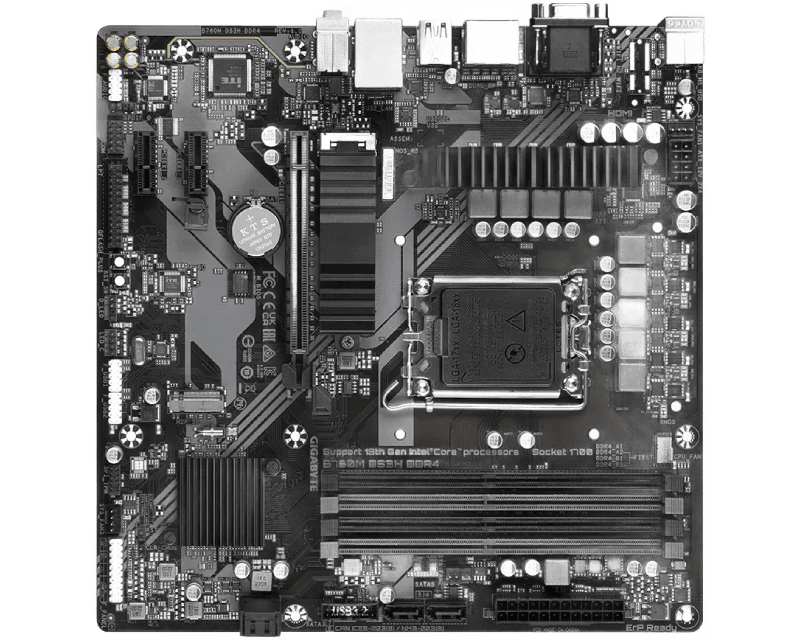

B760M DS3H REV. 1.x

Варијанта:

− +

7 090 ден.

0 ден.

Не е достапен

Бренд:

Gigabyte
Шифра:

INS-38-435-E
Достапен за порачка:

Не е достапен

Да
Chipset:

Intel B760
RAM type:

DDR5
RAM DIMMs:

2
USB Type-C ports:

1
Dimensions:

244mm x 244mm
Format:

Microatx
Note:

To use certain internal connectors, additional brackets or connectors on the housing are required
Warranty:

36 months
Supported technologies:

Q-Flash Plus
Condition:

Unused
Model:

Realtek
Processor bearing (Socket):

Intel 1700
USB ports:

2x USB 2.0, 3x USB 5Gbps (3.2 Gen 1)
Other traits:

Support for Unbuffered ECC memory, Extreme Memory Profile Support (XMP), Dual Channel
Audio:

1x Front Panel Header
Wired network (LAN):

2.5GBASE-T (Gigabit), 1x Realtek 2.5GB Ethernet
Other connections:

1 x Front Panel Header, 1 x Clear CMOS Jumper, 1 x Trusted Platform PLUS button, 4 x SATA 6GB, 1 x Reset Jumper, 1 x CPU Fan Header, 1 x Reset Button, 1 x Addressable LED Strip Headers, 2 X M.2 Socket 3, 3x System Fan Header, 1x SPDIF Out Connector
USB:

2 x Support for 1 USB 2.0 port, 1 x Support for 1 USB 5Gbps port
Supported memory:

3.200mt / s, 3.000mt / s, 2.933mt / s, 2.666mt / s, 2.400mt / s, 2.133mt / s, 5.333mt / s (O.C.), 5.8mt / s (O.C.), 4.600mt / s (O.C.), 4.400mt / s (O.C.), 4.266mt / s (O.C.), 4.000mt / s (O.C.), 3.733mt / s (O.C.), 3.400mt / s (O.C.), 3,333mt / s (O.C.), 4,133mt / s (O.C.), 3.800mt / s (O.C.), 4.933mt / s (O.C.), 4,300mt / s (O.C.), 5,100mt / s (O.C.), 3.800mt / s (O.C.), 4,500mt / s (O.C.), 3.66mt / s (O.C.), 4.700mt / s (O.C.)
PCI Express x16 slot:

1x PCI Express
SATA ports:

SATA III 6GBPS
Raid:

Raid 0, Raid 1, Raid 5, Raid 10
Channel number:

2/4 / 5.1 / 7.1
PS / 2:

1 (keyboard or mouse)
Voltage connections:

1x 24-pin ATX Main Power Connector, 1 x 8-pin ATX 12V Power Connector

Начин на испорака

Бесплатна достава во градско подрачје на Скопје за нарачка со вредност поголема од 10000 денари
Подигнување од нашата продавница

Начин на плаќање

Плаќање при подигнување
Фактурно плаќање

Сподели:

Basic characteristics - Processoring tray (Socket): Intel 1700 Chipset: Intel B760 Memory: DDR5 Memory slots: 4 Supported memory: 2.133mt / s, 2.400mt / s, 2.66mt / s, 2.933mt / s, 3.000mt / s, 3.200mt / s, 3.300mt / s (O.c.), 3,333mt / s (o.c.), 3,400mt / s (Åc.), 3,600 mt / s (o.c.), 3,666mt / s (o.c.), 3.800mt / s (o.c.), 3.866mt / s (O.c.), 4.000mt / s (Å.c.), 4,13 mt / s (o.c.), 4.300mt / s (o.c.), 4.400mt / s (o.c.), 4.600mt / s (o.c.), 4.700mt / s (O.c.), 4.800mt / s (o.c.), 5.000mt / s (o.c.), 5.33mt / s (o.c.) Maximum total memory: 128GB Other features: Dual Channel, Extreme Memory Profile (XMP), Support for Unbuffered ECC memory slots - PCI Express x16 slot: 1x Express storage interface - SATA Accessories: SATA III 6GBPS Number M.2, RAID 1, RAID 10, RAID 5 Network - Wired network (LAN): 1x Realtek 2.5GB Ethernet, 2.5GBASE-T (Gigabit) Model: Realtek Audio - Channel number: 2/4 / 5.1 / 7.1 Model: 2 HDMI ports: 1 VGA D-Sub: 1 PS / 2: 1 (Keyboard or Mouse) Total USB ports: 6 Total USB-C connections: 1 USB ports: 2x USB 2.0,3x USB 5GBPS (3.2): 1 Audio: 3x 3.5mm Internal connectors - Voltage connections: 1 x 8-pin ATX 12V Power Connector, 1x 24-pin ATX Main Power Connector USB 5GBPS port, 2 x Support for 1 USB 2.0 Port Audio: 1x Front Panel Header Serial port: 1 Other connections: 1 x Addressable LED CMOS Headers, 1 x Front Panel Header, 1 x Q-Flash Plus Button, 1 X Reset Button, 1 x Reset Jumper, 1 x RGB LED Strap Header, 1 x Trusted Platform Module (TPM), 1x SPDIF Out Connector, 2 x SATA 6GB / S Note: Additional brackets or Accessories on housing - Supported technologies: Q-Flash, Q-Flash Plus Physical Characteristics - Format: MicroATX Dimensions: 244mm x 244mm Condition: Unused reclivative period - Complaint period: 36 months
