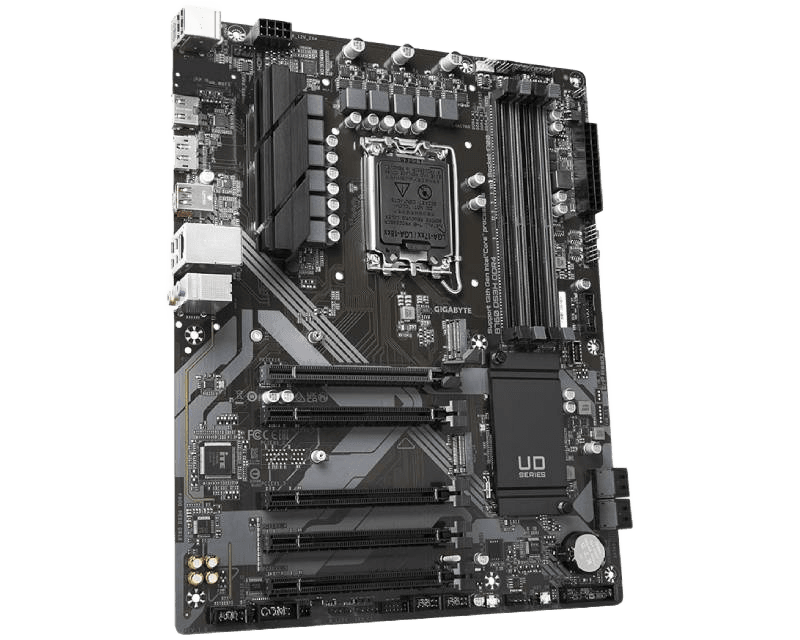

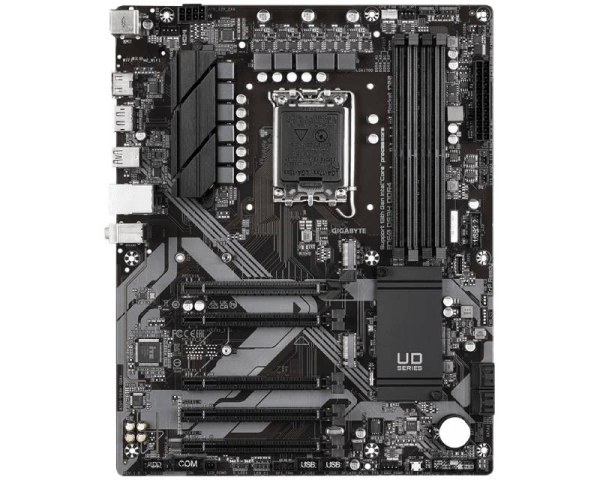

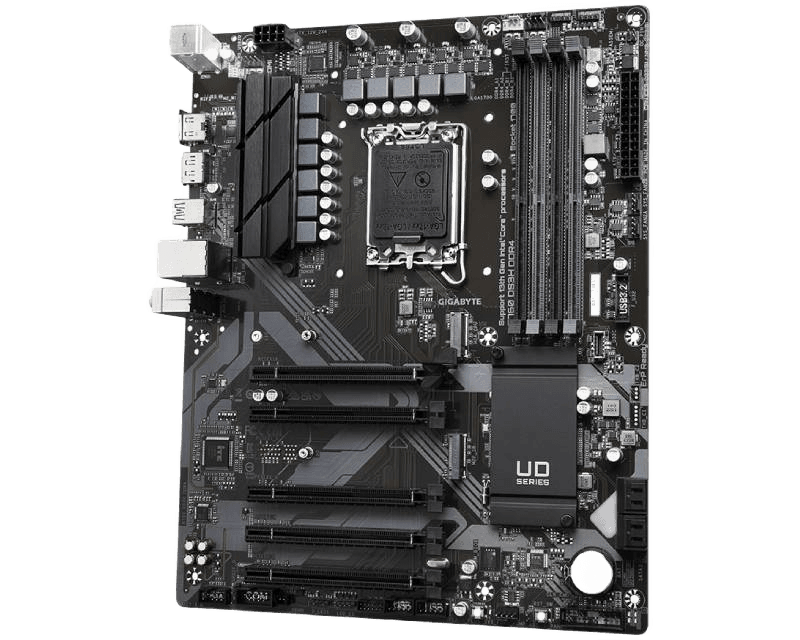

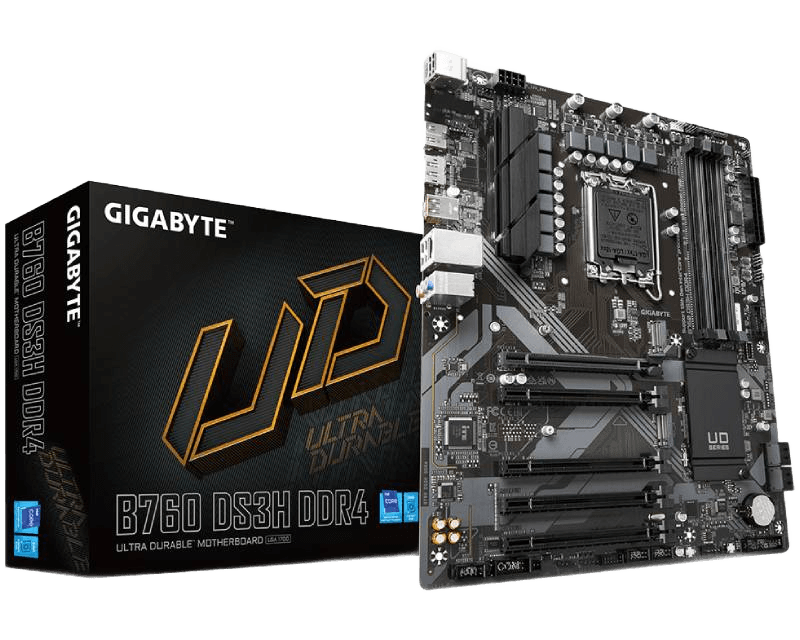

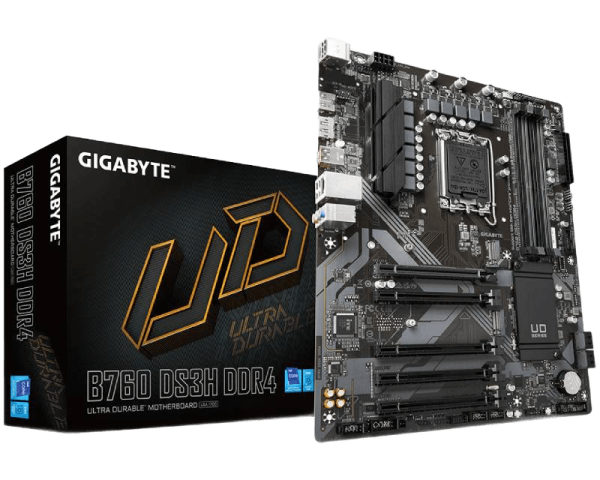

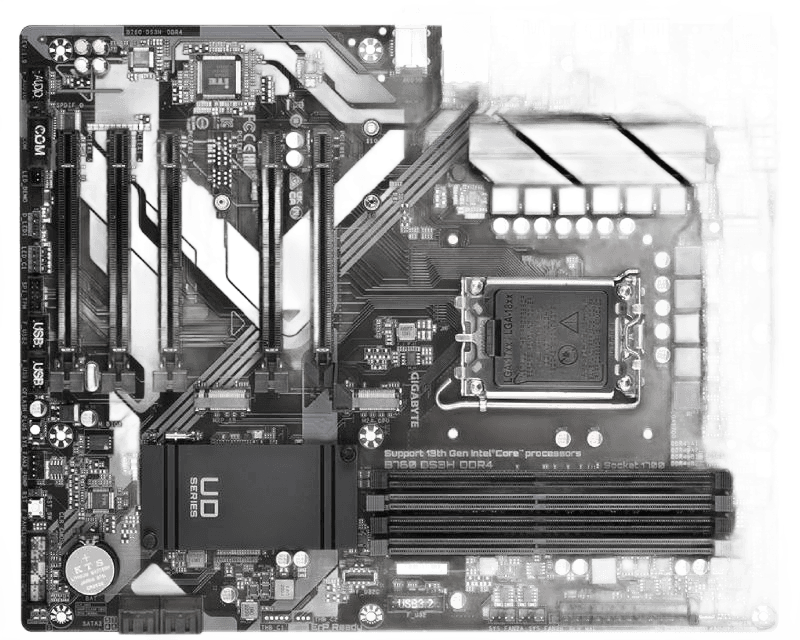

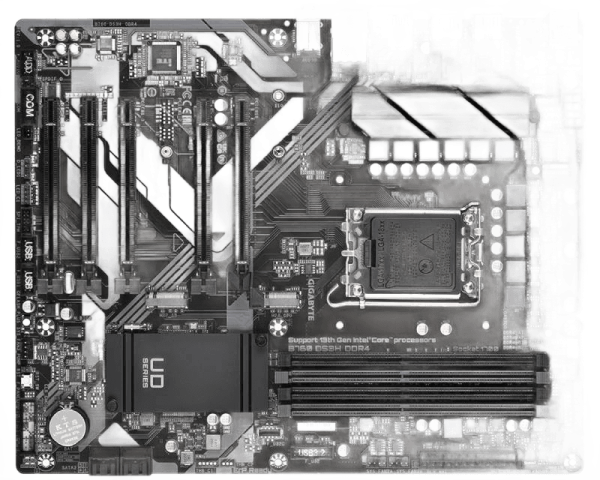

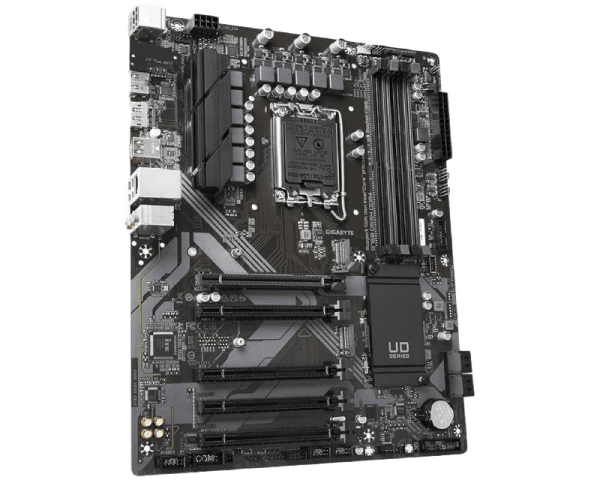

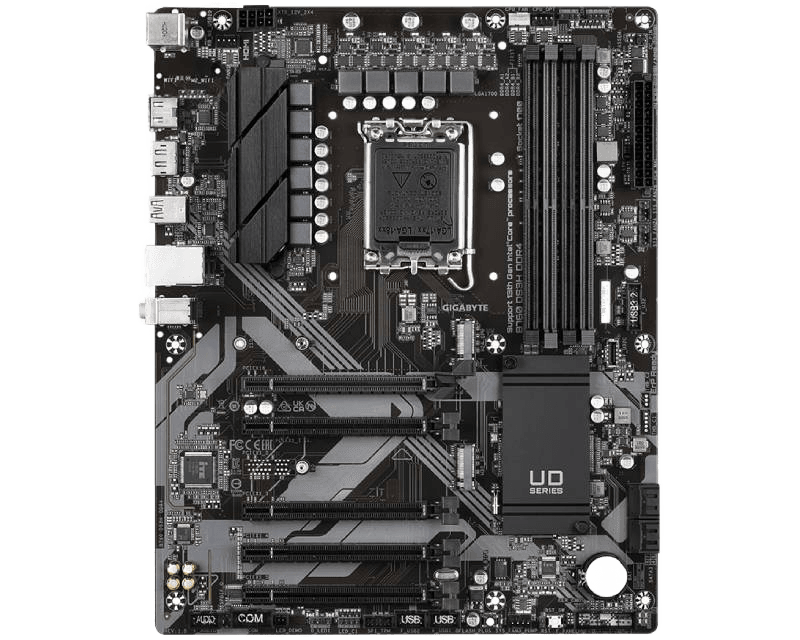

B760 DS3H DDR4 Rev. 1.x

Варијанта:

− +

7 190 ден.

0 ден.

Не е достапен

Бренд:

Gigabyte
Шифра:

INS-38-3250-E
Достапен за порачка:

Не е достапен

Да
Тип на меморија:

DDR4
Chipset:

Intel B760
USB Type-C ports:

1
Dimensions:

305mm x 244mm
Note:

To use certain internal connectors, additional brackets or connectors on the housing are required
Warranty:

36 months
Supported technologies:

Q-Flash Plus, UEFI BIOS, GIGABYTE CONTROL CENTER
DisplayPort ports:

1x DisplayPort 1.2
HDMI connectors:

1x HDMI 2.0
Condition:

Unused
Model:

Realtek
Processor bearing (Socket):

Intel 1700
USB ports:

4x USB 2.0, 1x USB 10GBPS (3.2 GEN 2)
Other traits:

Support for Extreme Memory Profile (XMP), Non-ECC support Udimm Memory, ECC Support Udimm Memory, Dual Channel
Audio:

1x Front Panel Audio, 1x Front Panel Header
Other connections:

Reset Button, 1x CPU Fan Header, 1 x Clear CMOS Jumper, 1 x Trusted Platform Module (TPM), 1 x Q-Flash Plus Button, 1 X Reset Jumper, 2x Addressable V2 RGB LED Connector (JARGB_V2), 1 x System Fan / Water Cooling Pump Headers, 3x System Fan Header, 2x M.2 Socket 3, 2x RGB LED Strip Headers
USB:

2 x Support for 1 USB 2.0 port, 1 x Support for 1 USB 5Gbps port
USB-C ports:

1x USB 20GBPS (3.2 GEN 2x2)
Supported memory:

2.133MHz, 3,333MHz (O.C.), 2.400MHz, 3,600MHz (O.C.), 3,436MHz (O.C.), 3.400MHz (O.C.), 3,866MHz (O.C.), 4,000MHz (O.C.), 4,133MHz (O.C.), 2.666MHz, 4,266MHz (O.C.), 4.500MHz (O.C.), 2.933MHz, 4,600MHz (O.C.), 3.000MHz, 5.000MHz (O.C.), 3.200MHz, 4.700MHz (O.C.), 5.133MHz (O.C), 5.333MHz (O.C.), 4,800MHz, 3,300MHz (O.C.), 4,300MHz (O.C.), 3,600MHz (O.C.), 4,933MHz (O.C.)
PCI Express x16 slot:

1x PCI Express 4.0 (X16 Mode), 4x PCI Express 3.0 (X1 Mode)
SATA ports:

SATA III 6GBPS
Raid:

Raid 0, Raid 1, Raid 5, Raid 10
Channel number:

8 (7.1)
PS / 2:

1 (keyboard or mouse)
Voltage connections:

1 x 24 PIN ATX Power Connector, 1 x 8-pin ATX 12V Power Connector
USB-C:

1 x Support for 1 USB 5Gbps port

Начин на испорака

Бесплатна достава во градско подрачје на Скопје за нарачка со вредност поголема од 10000 денари
Подигнување од нашата продавница

Начин на плаќање

Плаќање при подигнување
Фактурно плаќање

Сподели:

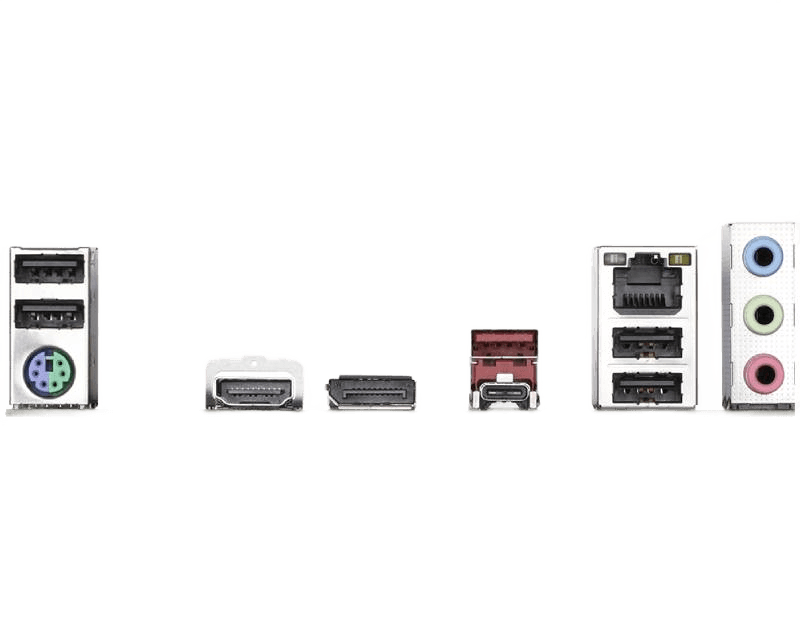

Basic characteristics - Socket: Intel 1700 Chipset: Intel B760 Memory: DDR4 Memory Slots: 4 Supported memory: 2.133MHz, 2.400MHz, 2.666MHz, 3.200MHz, 3.300MHz (O.c.), 3.300MHz (O.c.), 3.400MHz (O.C.), 3.600MHz (O.C.), 3,600MHz (O.C.), 3,800MHz (O.C.), 3,866MHz (O.C.), 4,333MHz (O.c.), 4,266MHz (O.C.), 4.400MHz (O.C.), 4,500MHz (O.C.), 4,700MHz (O.C.), 4.800MHz, 4,933MHz (O.C.), 5.000MHz (O.c.), 5.133MHz (O.C), 5,333MHz (O.C.) Maximum total memory: Dual Channel, Extreme Memory Support, Support for Extreme Memory Profile (XMP), Non-ECC Support Udimm Memory Slots - PCI Express X16 Slot: 1x PCI Express 4.0 (x16 MODE), 4x PCI Express 3.0 (X1 MODE): 4 SATA Accessories: SATA III 6GBPS: RAID 0, RAID 1, RAID 10, RAID 5 Network - Wired Network (Gigabit) Model: Realtek Audio - Channel number: Realtek Note: High Definition, S / PDIF output Connections in the last panel: 1 DisplayPort ports: 1x DISPLAYPORT 1.2 HDMI 2.0 PS / 2: 1 Total USB ports: 1 USB ports: 1x USB 10GBPS (3.2 GEN 2), 4x USB 2.0 USB-C ports: 1x USB 20GBPS (3.2): 1 Audio: 2x 3.5mm Internal connectors - Voltage connections: 1 x 24 PIN ATX Power Connector, 1 x 8-pin ATX 12V Power Connector USB: 1 x Support for 1 USB 5Gbps Port, 2 x Support for 1 USB 2.0 Port USB-C: 1 x Panel Header Serial port: 1 Other connections: 1 x Clear CMOS Jumper, 1 x Q-Flash Plus Button, 1 X Reset Jumper, 1 X System Fan / Water Cooling Pump Headers, 1 X TRUSTED PLATFORM Module (TPM), 1x CPU Fan Headers, 2x Addressable V2 RGB LED Connector (JARGB_V2), 2x M.2 Socket 3.2x RGB LED Strip Headers, 3x System Fan Header, Reset Key Note: To use certain internal The connector needs additional brackets or connectors on the housing Other characteristics - supported technologies: Q-Flash Plus, UEFI BIOS Physical characteristics - Format: ATX Dimensions: 305mm x 244mm Condition: Unused Commercial Period - Commercial Period: 36 months
