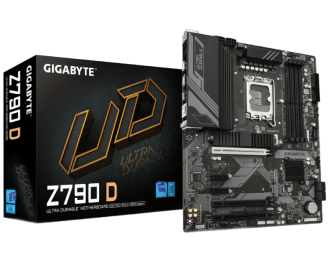

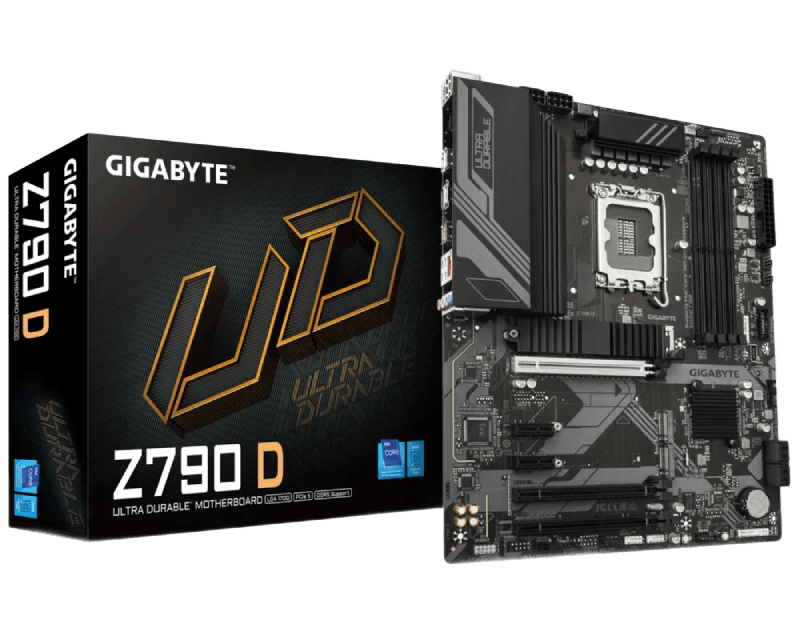

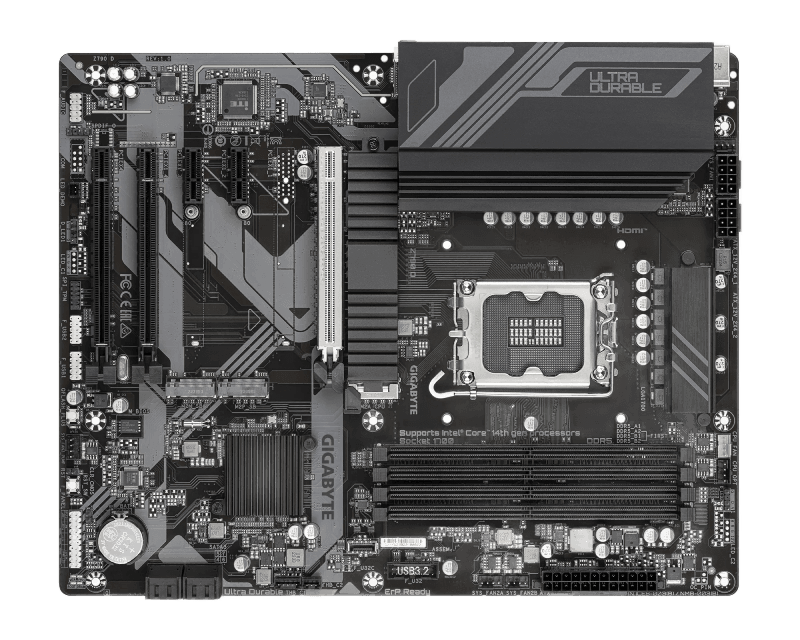

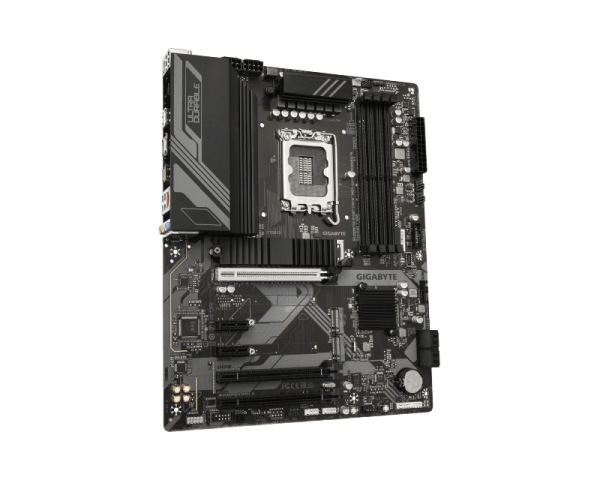

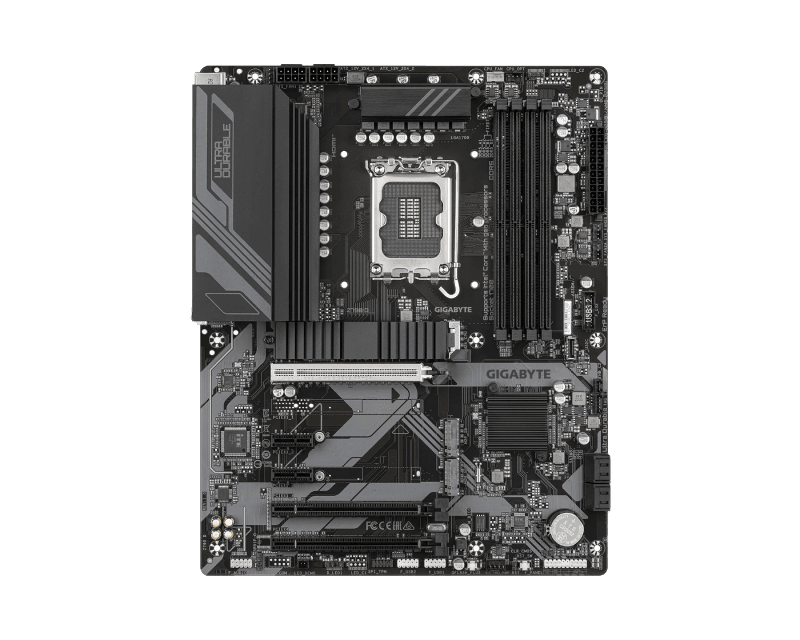

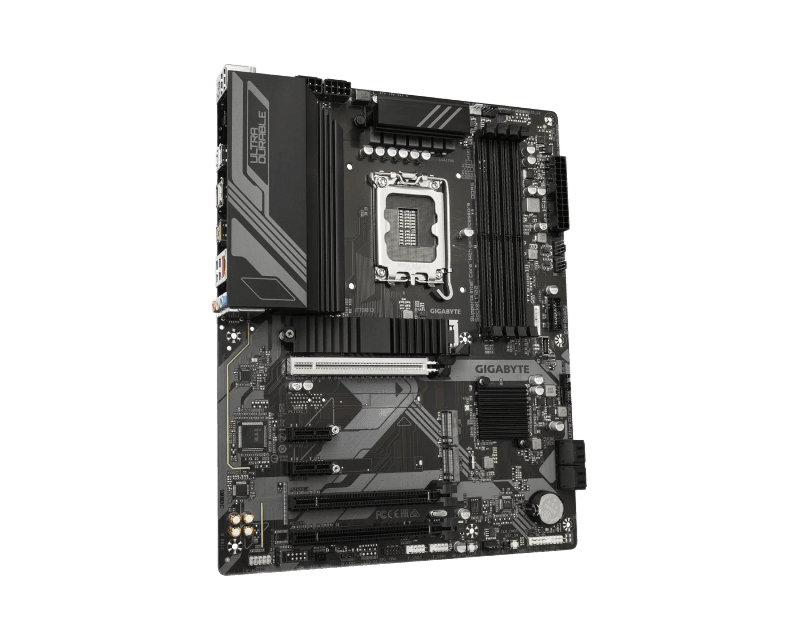

Gigabyte Z790 D REV. 1.x

Варијанта:

9 790 ден.

0 ден.

Не е достапен

Бренд:

Gigabyte
Шифра:

INS-38-2008-E
Достапен за порачка:

Не е достапен

Да
Chipset:

Intel Z790
RAM type:

DDR5
USB Type-C ports:

3 , 1
Dimensions:

305mm x 244mm
Note:

To use certain internal connectors, additional brackets or connectors on the housing are required
Warranty:

36 months
Supported technologies:

Smart Backup, Q-Flash Plus, Gigabyte Control Center
Model:

Realtek
Processor bearing (Socket):

Intel 1700
USB ports:

2x USB 2.0, 4x USB 5GBPS (3.2 Gen 1), 1x USB 10Gbps (3.2 Gen 2)
Other traits:

Support for Unbuffered ECC memory, Extreme Memory Profile (XMP), Support for Non-ECC Udimm Memory, Dual Channel
Audio:

1x Front Panel Audio
Other connections:

1x TPM Header, 1 x Front CMOS Jumper, 1 x Water Cooling CPU Fan Headers, 1 x Q-Flash Plus Button, 1 X S / PDIF Out Header, 2 x Thunderbolt Add-in Card Connectors, 2 x RGB LED Strip Headers, 1 x Reset Jumper, 1 x Reset Button, 3 x M.2 Socket 3 Connectors, 1 x System Fan / Water Cooling Pump Headers, 3x System Fan Header, 6 x SATA 6GB / s Connectors
PCI Express X1 Slot:

2x PCI Express 3.0
USB:

2 x Support for 1 USB 2.0 port, 1 x Support for 1 USB 5Gbps port
USB-C ports:

1x USB 10GBPS (3.2 GEN 2)
PCI Express x16 slot:

1x PCI Express 3.0, 1x PCI Express 4.0, 1x PCI Express 5.0
SATA ports:

SATA III 6GBPS
Raid:

Raid 0, Raid 1, Raid 5, Raid 10
Channel number:

2/4 / 5.1 / 7.1
PS / 2:

1 (keyboard or mouse)
Voltage connections:

2x 8 PIN 12V Power Connector, 1x 24-pin ATX Main Power Connector
USB-C:

1 x Support for 1 USB 5Gbps port

Начин на испорака

Бесплатна достава во градско подрачје на Скопје за нарачка со вредност поголема од 10000 денари
Подигнување од нашата продавница

Начин на плаќање

Плаќање при подигнување
Фактурно плаќање

Сподели:

Basic characteristics - Socket: Intel 1700 Chipset: Intel Z790 Memory: DDR5 Memory slots: 4 Supported memory: 4.400mt / s, 4.800mt / s, 5.200mt / s, 5.400mt / s, 5.600mt / s, 5.800mt / s (o.c.), 6,000mt / s (O.c.), 6-200mt / s (o.c.), 6.400mt / s (o.c.), 6.800mt / s (o.c.), 7.00mt / s (o.c.), 7.400mt / s (O.C.) Maximum Total Memory: 256GB Other features: Dual Channel, Extreme Memory Profile (XMP), Unbuffered ECC memory support - PCI Express X16 Slot: 1x Express 4.0,1X PCI Express 5.0 PCI Express X1 Slot: 2x PCI Express 3.0 Storage Interface - SATA Accessories (Total): SATA III 6GBPS Number M.2, RAID 1, RAID 10, RAID 5 Network - Wired Audio - Channel Number: 2/4 / 5.1 / 7.1 Model: Realtek Note: High Definition, Support for S / PDIF output connections on the back panel - Number of DisplayPort ports: 1 PS / 2: 1 (keyboard or mouse) Total USB ports: 1 USB ports: 1x USB 10GBPS (3.2 GEN 2) USB 5GBPS (3.2 GEN 1) USB-C Connections: 1x USB 10GBPS (3.2 GEN 2) RJ-45 (LAN): 1 Audio: 3x 3.5mm Internal connections - Voltage connections: 1x 24-pin ATX Main Power Connector USB: 1 USB 5GBPS port, 2 x Support for 1 USB 2.0 port USB-C: 1 x Support for 1 USB 5GBPS Port Audio: 1x Front Panel Audio Serial port: 1 Other connections: 1 x FAN Header, 1 x Q-Flash Plus Button, 1 x Reset Button, 1 x Reset Jumper, 1 x S / PDIF Out Header, 1 x System Fan / Water Cooling Pump Headers, 1 X Water Cooling CPU Fan Header, 1x TPM Headers, 2 x RGB LED Strip Headers, 2 x Thunderbolt Add-in Card Connectors, 3 x M.2 Socket 3 Connectors, 3x System Fan Header, 6 x SATA 6GB / s Connectors Note: For use of certain internal connectors, additional brackets or connections on the housing, the technology, Q-Flash Plus, Smart Backup Physical Features - Format: ATX Dimensions: 305mm x 244mm Commercial period - Commercial period: 36 months
