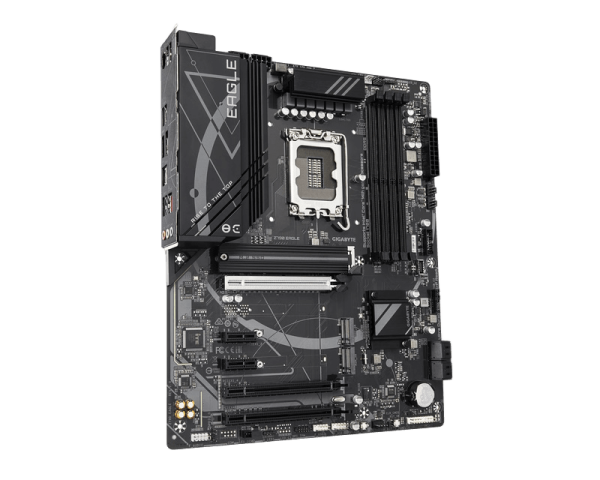

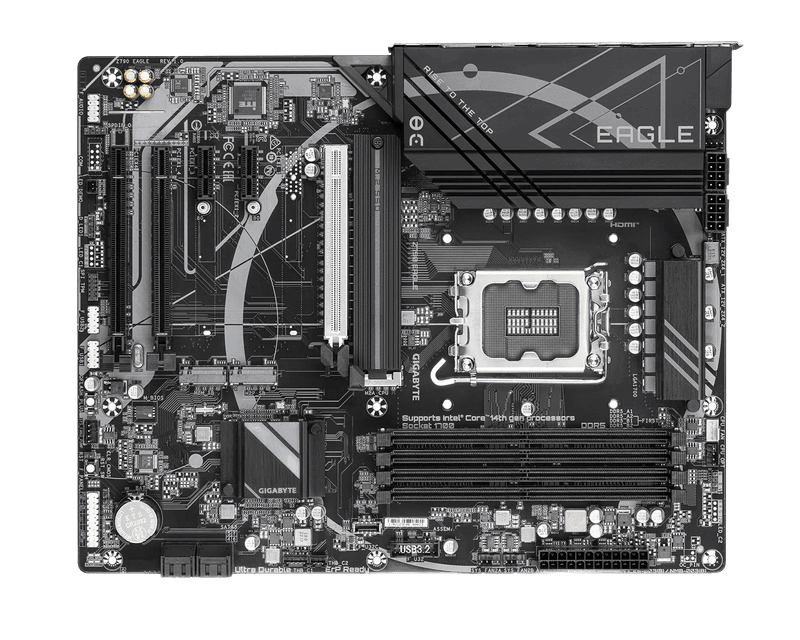

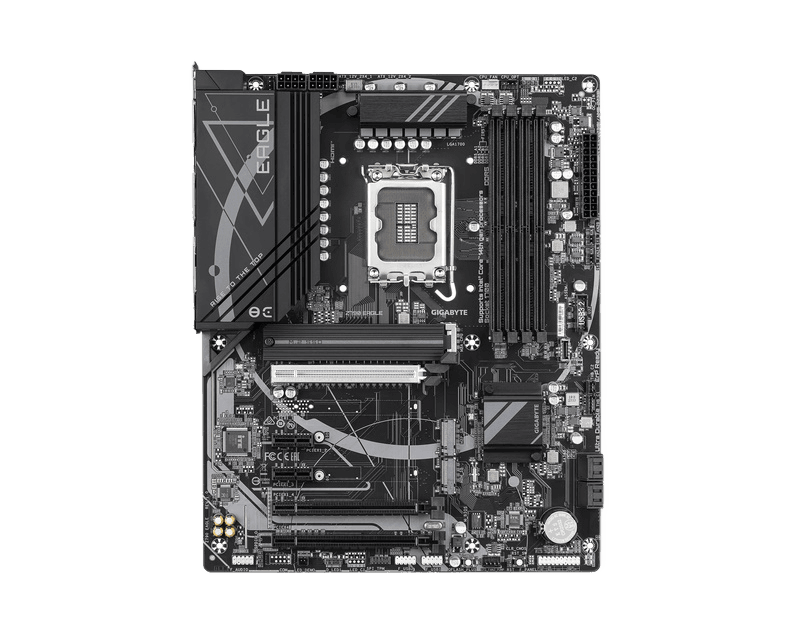

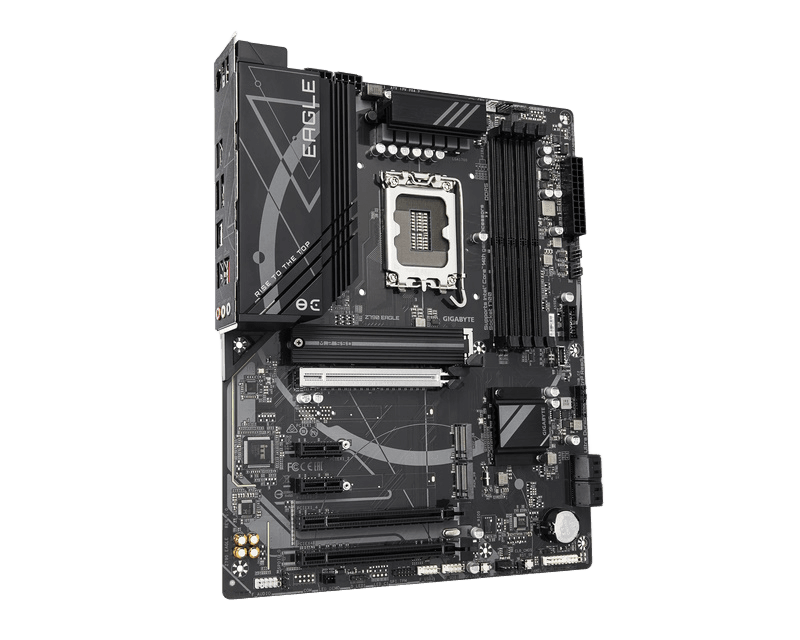

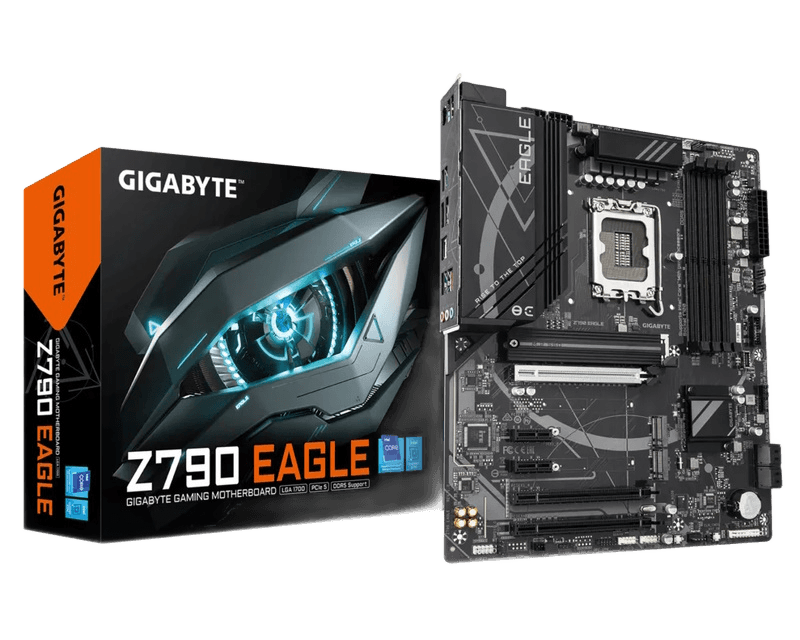

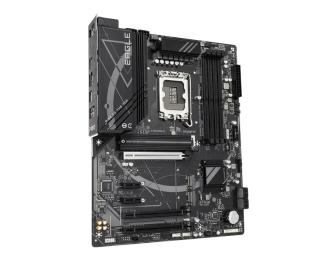

MB Z790 Eagle Rev. 1.0

Варијанта:

− +

0 ден.

Не е достапен

Бренд:

Gigabyte
Шифра:

INS-38-7703-E
Достапен за порачка:

Не е достапен

Да
Број на физички јадра:

8 , 4
Chipset:

Intel Z790
RAM type:

DDR5
Капацитет:

256GB
USB Type-C ports:

3 , 1
Form Factor:

ATX
Dimensions:

305mm x 244mm
Note:

High Definition
Warranty:

36 months
Supported technologies:

Smart Backup, Q-Flash Plus
DisplayPort ports:

1x DisplayPort 1.2
HDMI connectors:

1x HDMI 2.1
Model:

Realtek
Processor bearing (Socket):

Intel 1700
USB ports:

2x USB 2.0, 4x USB 5GBPS (3.2 Gen 1), 1x USB 10Gbps (3.2 Gen 2)
Other traits:

Support for Unbuffered ECC memory, Extreme Memory Profile Support (XMP), Dual Channel (Dual-Channel) Memory mode, Support for non-ECC Udimm Memory
Audio:

1x Front Panel Header, 1x S / PDIF output
Wired network standards:

2.5GBASE-T (Gigabit)
PCI Express X1 Slot:

2x PCI Express 3.0
USB:

2 x Support for 1 USB 2.0 port, 1 x Support for 1 USB 5Gbps port
USB-C ports:

1x USB 10GBPS (3.2 GEN 2)
PCI Express x16 slot:

1x PCI Express 5.0 (X16 Mode), 1x PCI Express 4.0 (X4 Mode), 1x PCI Express 3.0 (X1 Mode)
SATA ports:

SATA III 6GBPS
Raid:

Raid 0, Raid 1, Raid 5, Raid 10
Channel number:

8 (7.1)
PS / 2:

1 (keyboard or mouse)
Voltage connections:

1x 24-pin ATX Main Power Connector, 2x 8 PIN ATX 12V Power Connector
USB-C:

1 x Support for 1 USB 5Gbps port
Supported M.2 formats:

1x 2280/22110 (PCIE 4.0 x4 / X2 mod), 1x 2280 (PCIE 4.0 x4 / X2 mode), 1x 2280 (PCIE 4.0 x4 / X2 and SATA mods)

Начин на испорака

Бесплатна достава во градско подрачје на Скопје за нарачка со вредност поголема од 10000 денари
Подигнување од нашата продавница

Начин на плаќање

Плаќање при подигнување
Фактурно плаќање

Сподели:

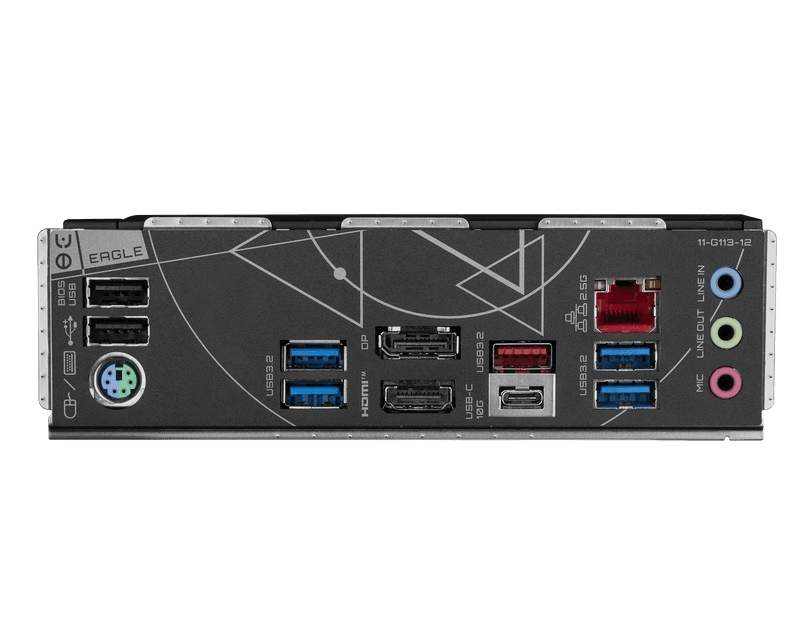

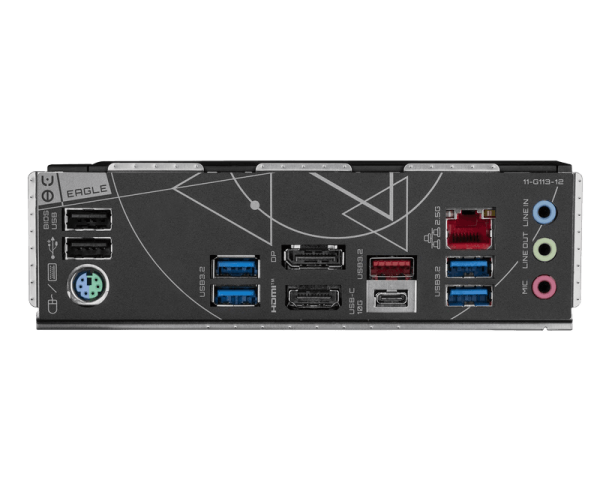

Basic characteristics - Socket: Intel 1700 Chipset: Intel Z790 Memory: DDR5 Memory slots: 4 Supported memory: 4.400mt / s, 4.800mt / s, 5.200mt / s, 5.400mt / s, 5.600mt / s, 5.800mt / s (o.c.), 6,000mt / s (O.c.), 6-200mt / s (o.c.), 6.400mt / s (o.c.), 6.800mt / s (o.c.), 7.00mt / s (o.c.), 7.400mt / s (O.C.) Maximum Total Memory: 256GB Other features: Double-channel (Dual-Channel) Support for Extreme Memory Profile (XMP), Unbuffered ECC memory support - PCI Express X16 Slot: 1x PCI Express 3.0 (X1 Mode), 1x Express 4.0 (X4 MODE), 1x PCI Express 5.0 (X16 MODE) PCI Express X1 Slot: 2x PCI Express 3.0 SATA 6GBPS Number M.2 Slots: 3 Supported M.2 Formats: 1x 2280 and SATA mods), 1x 2280 (PCIE Support 4.0 X4 / X2 MOD), 1x 2280/22110 (PCIE) RAID: RAID 10, RAID 1, RAID 10, RAID 5: 2.5GBASE-T (Gigabit) Model: Realtek Audio - Channel number: realtek Note: High Definition Connections in the back panel - Number DisplayPort Connections: 1 DisplayPort ports: 1x DisplayPort 1.2 HDMI ports: 1x HDMI 2.1 PS / 2: 1 USB USB connectors: 1 USB ports: 1x USB 10GBPS (3.2 GEN 2), 2x USB 2.0,4x USB 5GBPS (3.2 Gen 1) USB-C Accessories: 1x USB 10GBPS (3.2 GEN 2) RJ-45 (LAN): 1 Audio: 3x 3.5mm Internal connectors - Voltage connections: 1x 24-pin ATX Main Power Connector, 2x 8 PIN ATX: 1 x Support for 1 USB 5Gbps port, 2 x Support for 1 USB 2.0 port USB-C: 1 x Support for 1 USB 5GBPS port Header, 1x S / PDIF output, 1 x CPU Fan Header, 1 x Q-Flash Plus Button, 1 x Reset Button, 1 x Reset Jumper, 1 x System Fan / Water Cooling Pump Headers, 1 x Thunderbolt ™ Add-in Card Connector, 1 x Trusted Platform Module (TPM), 1x CPU Fan / Water Cooling Pump Headers, 3 x M.2 Socket 3 Connectors, 3 X System Fan Headers, 4 X SATA 6GB / S Other Characteristics - Supported technologies: Q-Flash, Q-Flash Plus, Smart Backup Physical Features - Format: ATX Dimensions: 305mm x 244mm Commercial period - Complaint period: 36 months
