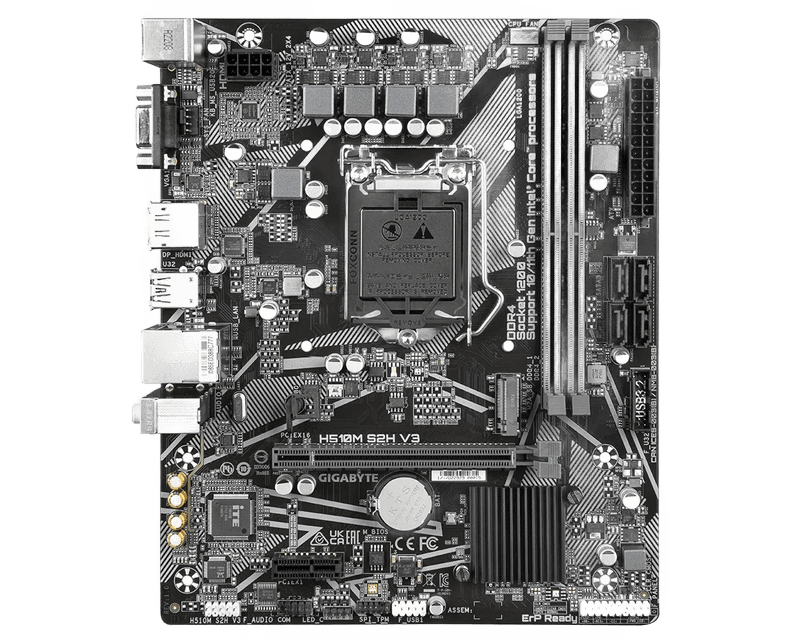

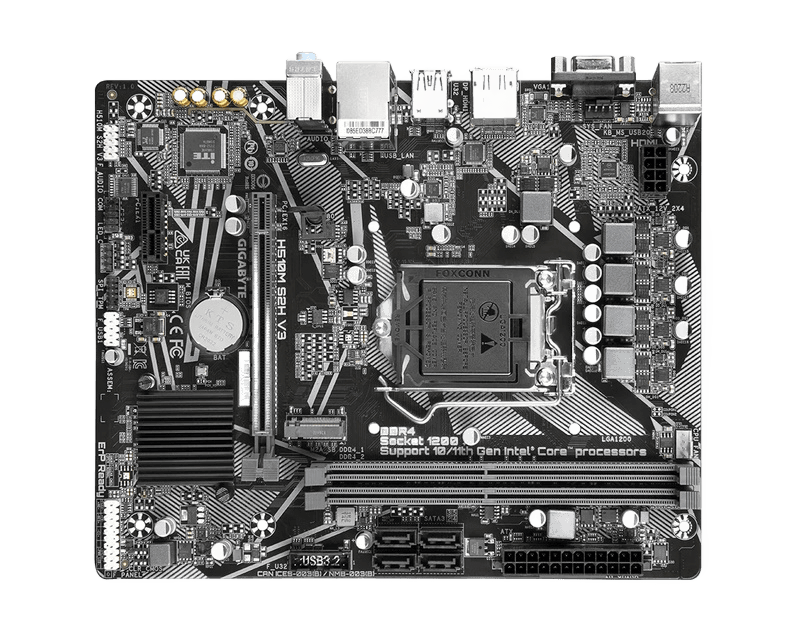

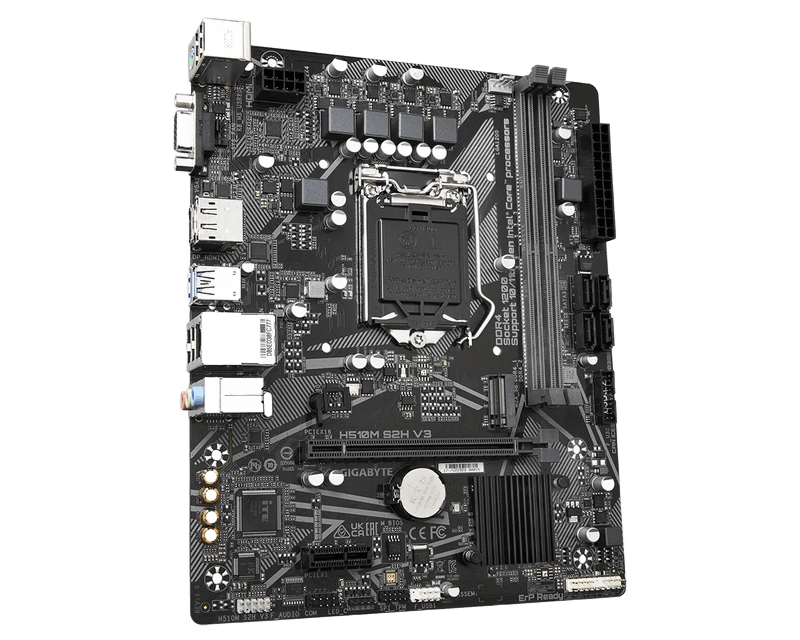

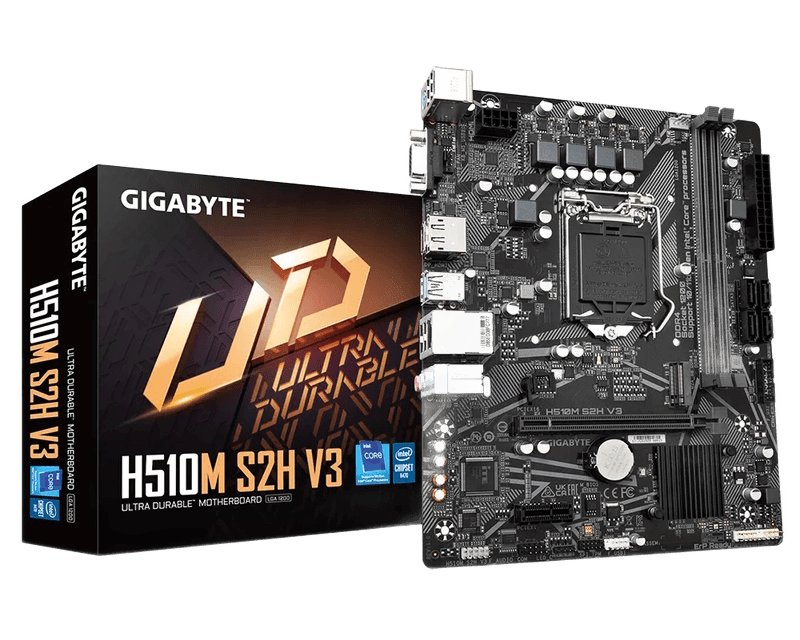

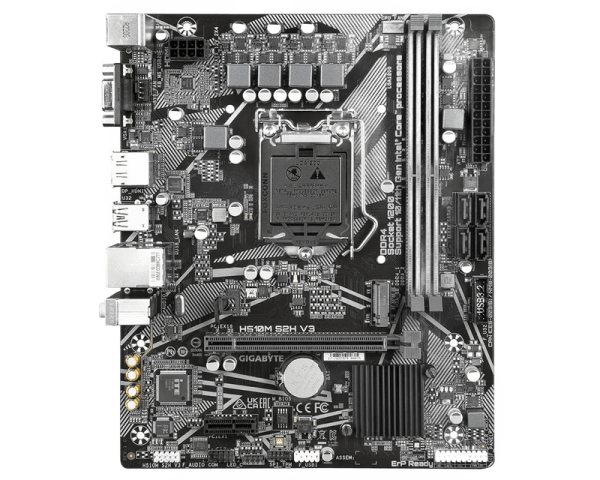

MB GIGABYTE H510M S2H V3 REV. 1.0

MB GIGABYTE H510M S2H V3 REV. 1.0

Варијанта:

− +

4 290 ден.

0 ден.

Не е достапен

Бренд:

Gigabyte
Артикл:

INS-38-6451-E
Достапен за порачка:

Не е достапен

Да
Тип на меморија:

DDR4
Капацитет:

64GB
Број на физички јадра:

6 , 4
Chipset:

Intel H470
RAM DIMMs:

2
USB Type-C ports:

1
Dimensions:

226mm x 185mm
Format:

Microatx
Note:

High Definition
Warranty:

36 months
Supported technologies:

Ambient Led, Easy Tune, Smart Backup, Xpress Install, Q-Flash
DisplayPort ports:

1x DisplayPort 1.2
HDMI connectors:

1x HDMI 1.4
Model:

Realtek
Processor bearing (Socket):

Intel 1200
USB ports:

4x USB 2.0, 2x USB 5GBPS (3.2 Gen 1)
Other traits:

Support for Unbuffered ECC memory, Extreme Memory Profile Support (XMP), Dual Channel (Dual-Channel) Memory mode, Support for non-ECC Udimm Memory
Audio:

1x Front Panel Audio, 1x Front Panel Header
Wired network standards:

1000Base-T (Gigabit)
Other connections:

1 x Clear CMOS Jumper, 1 x Trusted Platform Module (TPM), 1x System Fan Header, 4 x SATA 6GB / s, 1 x M.2 Socket 3, 1 x RGB LED Header, 1 x CPU Fan Header
PCI Express X1 Slot:

1x PCI Express 3.0
USB:

1 x Support for 1 USB 2.0 port, 1 x Support for 1 USB 5Gbps port
Supported memory:

2.133MHz, 2.400MHz, 2.666MHz, 2.933MHz, 3.000MHz, 3.200MHz
PCI Express x16 slot:

1x PCI Express 3.0 (X16 Mode)
SATA ports:

SATA III 6GBPS
Raid:

Raid 0, Raid 1, Raid 5, Raid 10
Channel number:

8 (7.1)
PS / 2:

1 (keyboard or mouse)
Voltage connections:

1x 24-pin ATX Main Power Connector, 1 x 8-pin ATX 12V Power Connector
Supported M.2 formats:

1x 2280 (PCIE 3.0 X4 / X2 MOD support)

Начин на испорака

Бесплатна достава во градско подрачје на Скопје за нарачка со вредност поголема од 10000 денари
Подигнување од нашата продавница

Начин на плаќање

Плаќање при подигнување
Фактурно плаќање

Сподели:

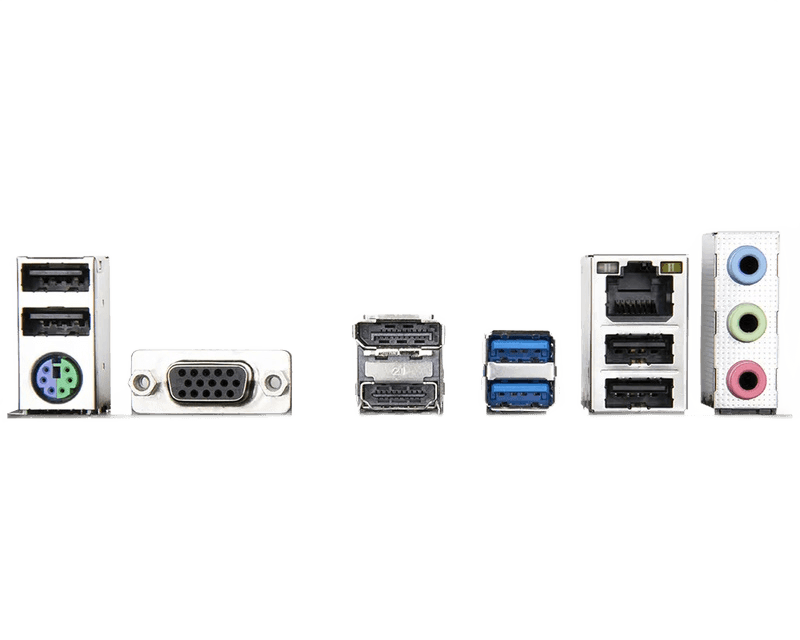

Basic characteristics - Socket: Intel 1200 Chipset: Intel H470 Memory: DDR4 Memory slots: 2 Supported memory: 2.133MHz, 2.400MHz, 2.666MHz, 2.933MHz, 3.000MHz, 3.200MHz Maximum Total Memory: 64GB Other features: Double-channel (Dual-Channel) Memory mode, Extreme Memory Profile (XMP), Unbuffered ECC memory support - PCI Express X16 Slot: 1x PCI Express 3.0 (X16 Mode) PCI Express 3.0 Storage Interface - SATA Accessories (Total): 4 hours Connections: SATA III 6GBPS Number M.2 Support: 1x 2280, RAID 1, RAID 10, RAID 5 Network - Wired Model: Realtek Audio - Channel: 8 (7.1) Model: realtek Note: High Definition Connections in the last panel - DisplayPort ports: 1 DISPLAYPORT 1.2 HDMI ports: 1x HDMI 1.4 PS / 2: 1 (keyboard or mouse) Total USB ports: 2x USB 5GBPS (3.2 GEN 1), 4x USB 2.0 RJ-45 (LAN): 1 Audio: 3x 3.5mm Other ports: 1 x D-SUB PORT INTERIOR POWER CONNECTOR, 1x 24-pin ATX Main Power Connector USB 2.0 port, 1 x Support for 1 USB 5Gbps Port Audio: 1x Front Panel Audio, 1x Front Panel Header Serial Port: 1 Other connections: 1 x CPU Fan Header, 1 x M.2 Socket Header, 1 x Trusted Platform Module (TPM), 1x System Fan Header, 4 x SATA 6GB / s Other features - Supported technologies: Ambient LED, Easy Tuna, Q-Flash, Smart Backup, Xpress Install Physical Features - Format: Microatx Dimensions: 226mm x 185mm Complaints - Commercial Period: 36 months
