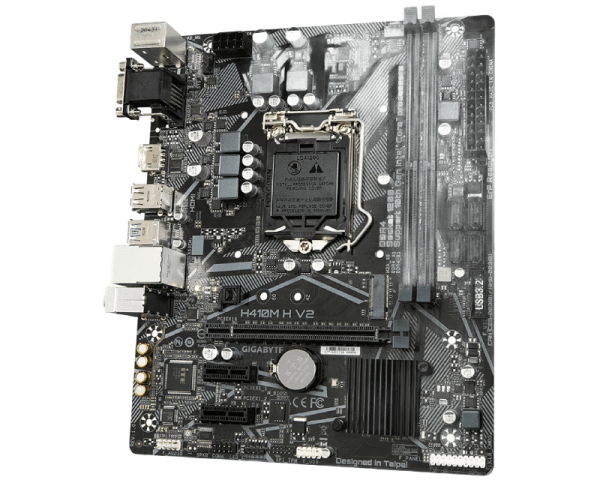

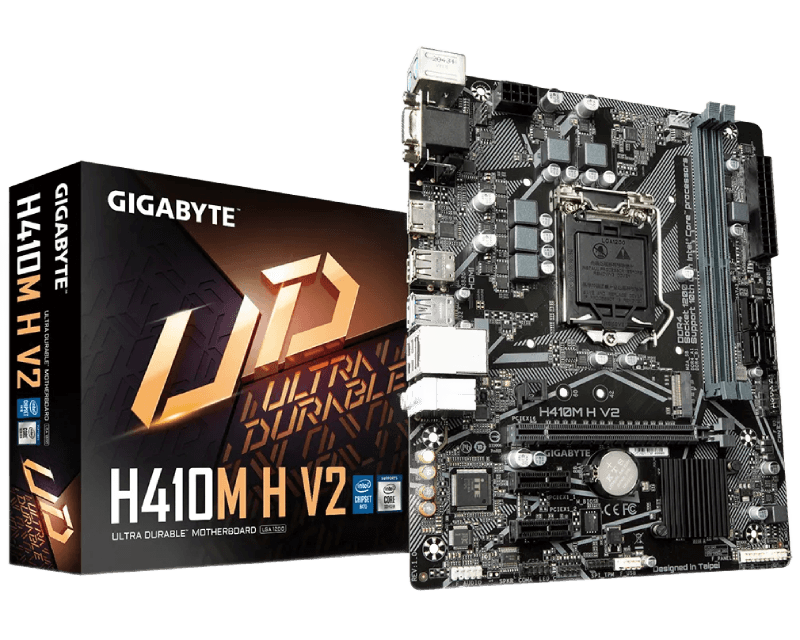

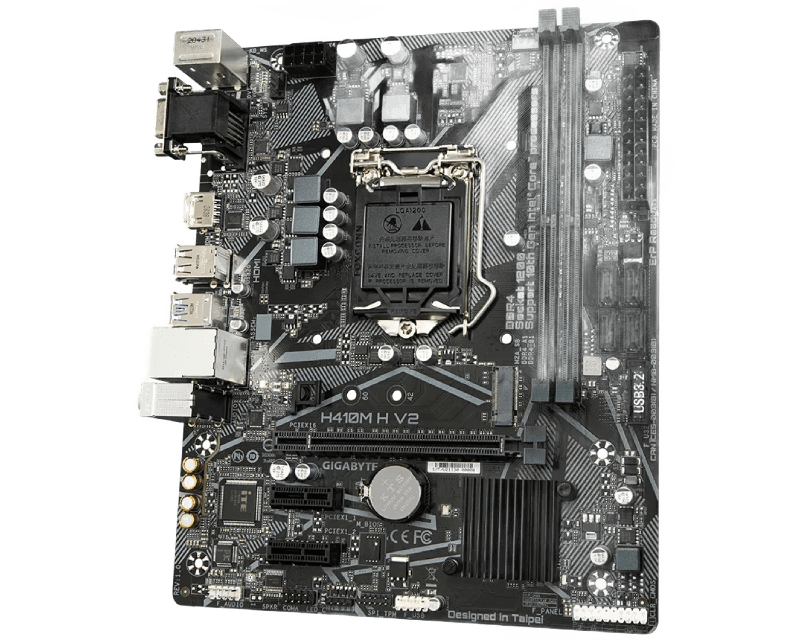

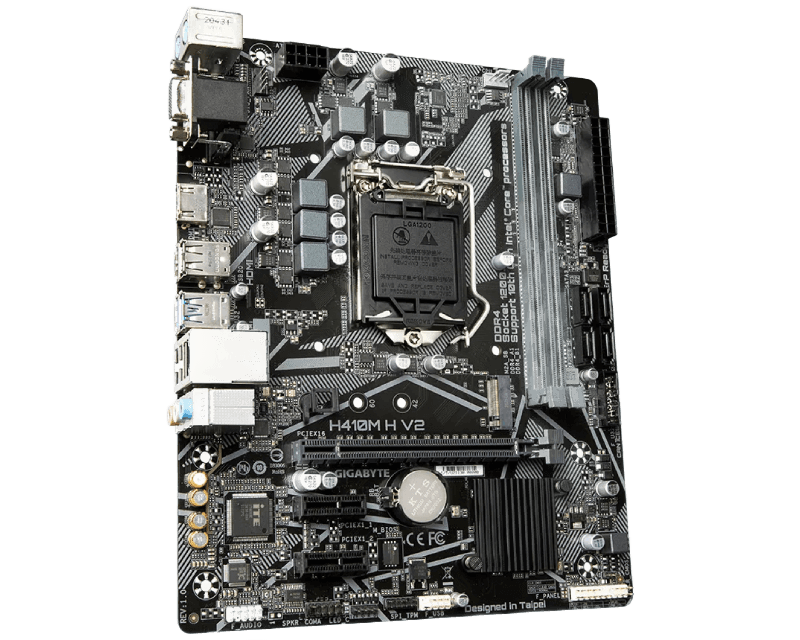

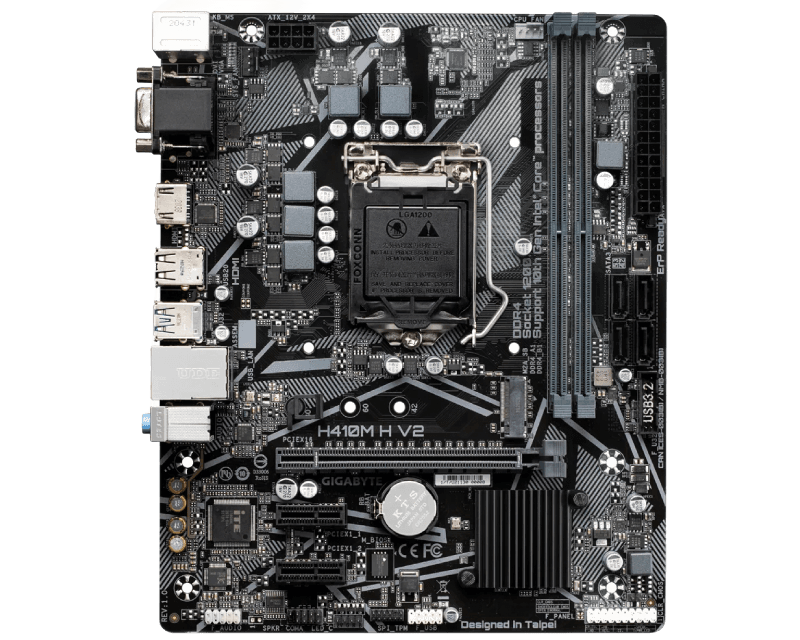

MB GIGABYTE H410M H V2 REV. 1.x

MB GIGABYTE H410M H V2 REV. 1.x

Варијанта:

− +

3 590 ден.

0 ден.

Не е достапен

Бренд:

Gigabyte
Артикл:

INS-38-455-E
Достапен за порачка:

Не е достапен

Да
Тип на меморија:

DDR4
Капацитет:

64GB
Број на физички јадра:

6 , 4
Chipset:

Intel H470
RAM DIMMs:

2
USB Type-C ports:

3 , 1
Dimensions:

226mm x 185mm
Format:

Microatx
Note:

To use certain internal connectors, additional brackets or connectors on the housing are required
Warranty:

36 months
Supported technologies:

Ambient Led, Easy Tune, Smart Backup, Xpress Install, Q-Flash, Fast Boot, Game Boost
Model:

Realtek
Processor bearing (Socket):

Intel 1200
USB ports:

4x USB 2.0, 2x USB 5GBPS (3.2 Gen 1)
Other traits:

Support for Unbuffered ECC memory, Extreme Memory Profile (XMP), Support for Non-ECC Udimm Memory, Dual Channel
Audio:

1x Front Panel Audio
Wired network standards:

1000Base-T (Gigabit)
Other connections:

1x TPM Header, 1 x Front Panel Header, 1 x Clear CMOS Jumper, 1x System Fan Header, 4 x SATA 6GB / s, 1 x RGB LED Strip Header, 1 x CPU Fan Header
PCI Express X1 Slot:

2x PCI Express 3.0
USB:

1 x Support for 1 USB 2.0 port, 1 x Support for 1 USB 5Gbps port
Supported memory:

2.133MHz, 2.400MHz, 2.666MHz, 2.933MHz
PCI Express x16 slot:

1x PCI Express
SATA ports:

SATA III 6GBPS
Raid:

Raid 0, Raid 1, Raid 5, Raid 10
Channel number:

2/4 / 5.1 / 7.1
PS / 2:

1 (keyboard or mouse)
Voltage connections:

1x 24-pin ATX Main Power Connector, 1 x 8-pin ATX 12V Power Connector

Начин на испорака

Бесплатна достава во градско подрачје на Скопје за нарачка со вредност поголема од 10000 денари
Подигнување од нашата продавница

Начин на плаќање

Плаќање при подигнување
Фактурно плаќање

Сподели:

Basic characteristics - Processor bay (socket): Intel H470 Memory: DDR4 Memory Slots: 2,133MHz, 2.400MHz, 2.666MHz, 2.933MHz Maximum Total Memory: 64GB Other features: Dual Channel, Extreme Memory Profile (XMP), Support for Non-ECC Udimm Memory, Unbuffered ECC memory Support - PCI Express X16 Slot: 1x Express 3.0 PCI SLOT: 3 Storage Interface - SATA Connections (Total): SATA III 6GBPS Number M.2 Slots: 1 RAID: RAID 0, RAID 1, RAID 10, RAID 5 Network - Wired network (LAN): 1000Base-T (Gigabit) Model: Realtek Note: HDMI connections: 1 VGA D-Sub: 1 PS / 2: 1 (Keyboard or Mouse) Total USB ports: 6 USB ports: 2x USB 5GBPS (3.2 GEN 1), 4x USB 2.0 RJ-45 (LAN): 1 Audio: 3x 3.5mm Internal connections - Voltage connections: 1 x 8-pin ATX 12V Main Power Connector USB: 1 x Support for 1 USB 5Gbps port audio: 1x Front Panel Audio Serial Port: 1 Other connections: 1 x CPO Fan Header, 1 x RGB LED Header, 1x System Fan Header, 1x TPM Header, 4 x SATA 6GB / S Note: For utilization of certain internal connectors, additional Bracket or connectors on the housing Other characteristics - Supported technologies: Ambient LED, Easy tuna, Q-Flash, Smart Backup, Xpress Install Physical Features - Format: MicroTX Dimensions: 226mm x 185mm Complaints - Complaint period: 36 months
