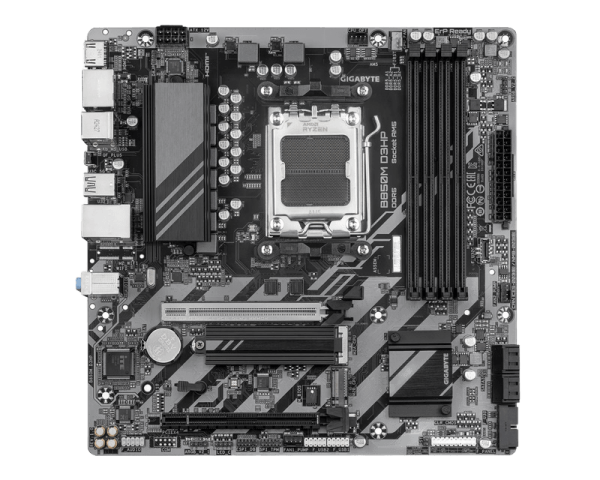

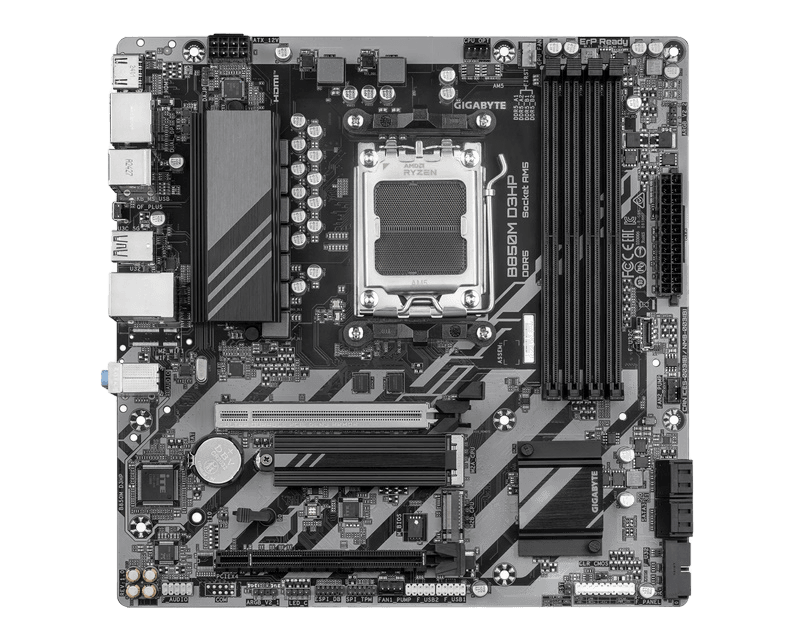

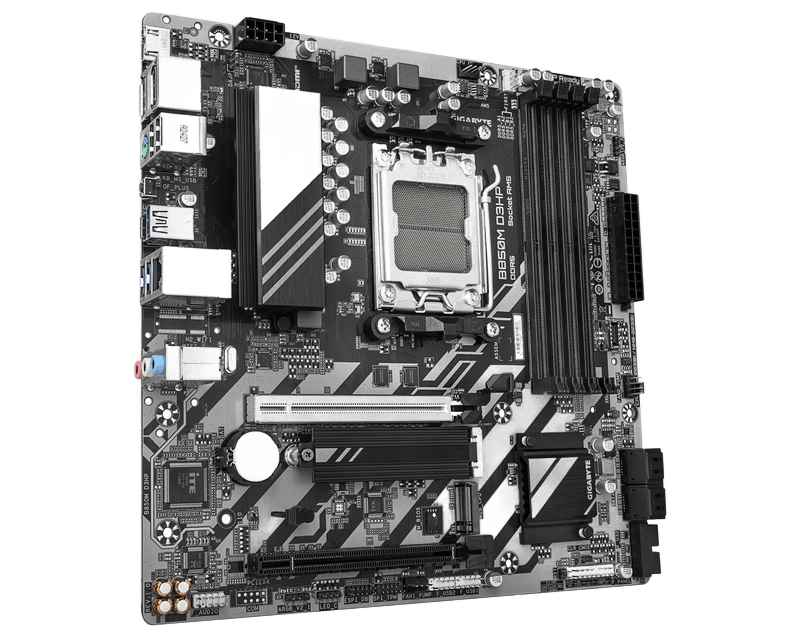

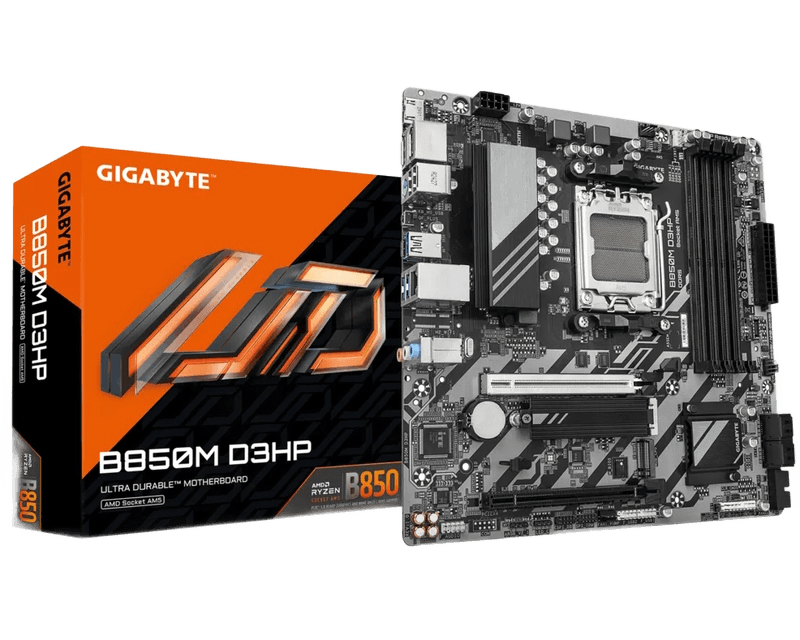

MB GIGABYTE B850M D3H P REV. 1.0

MB GIGABYTE B850M D3H P REV. 1.0

Варијанта:

− +

9 090 ден.

0 ден.

Не е достапен

Бренд:

Gigabyte
Артикл:

INS-38-6450-E
Достапен за порачка:

Не е достапен

Да
Број на физички јадра:

6 , 4
Chipset:

AMD B850
RAM type:

DDR5
RAM DIMMs:

2
Капацитет:

256GB
USB Type-C ports:

1
Dimensions:

244mm x 244mm
Format:

Microatx
Note:

High Definition
Warranty:

36 months
Supported technologies:

Q-Flash Plus, Smart Backup, UEFI BIOS

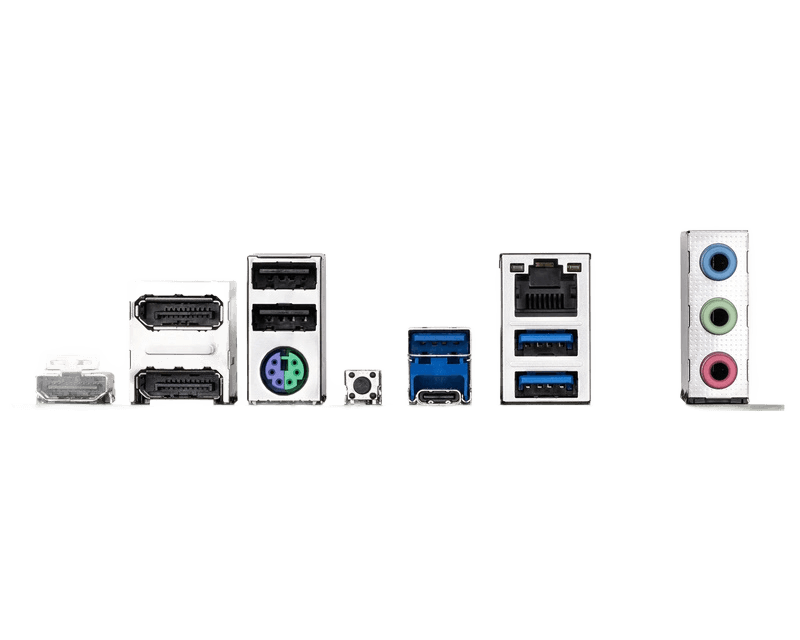

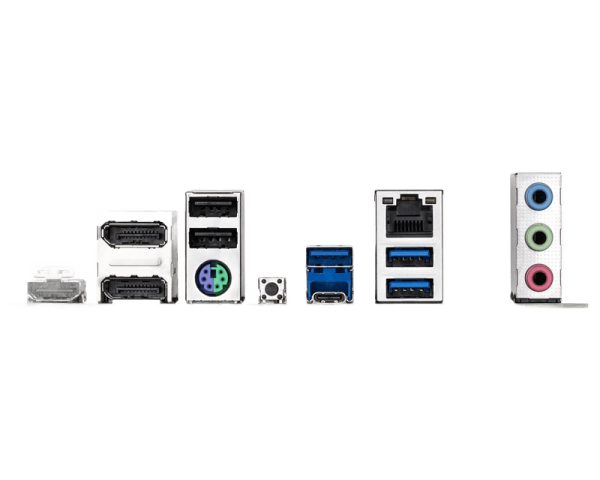

DisplayPort ports:

2x DisplayPort 1.4
HDMI connectors:

1x HDMI 2.1
Model:

Realtek
Processor bearing (Socket):

AMD AM5
USB ports:

2x USB 2.0, 3x USB 5Gbps (3.2 Gen 1)
Other traits:

Support for Unbuffered ECC memory, Extreme Memory Profile (XMP), Dual Channel (Dual-Channel) Memory mode, Non-ECC Support Udimm Memory, AMD Extended Profiles for Overclocking (Expo)
Audio:

1x Front Panel Audio, 1x Front Panel Header
Wired network standards:

1000Base-T (Gigabit)
Other connections:

1 x Clear CMOS Jumper, 1 x Trusted Platform Module (TPM), 4 x RGB LED Strip Header, 1 x Fan Header, 2 x M.2 Socket 3, 1x System Fan Header, 1x CPU Fan / Water Cooling Pump Header, 1 X System Fan / Water Cooling Pump Headers, 2x Addressable RGB Gen2 LED Strip Headers
USB:

2 x Support for 1 USB 2.0 port, 1 x Support for 1 USB 5Gbps port
USB-C ports:

1x USB 5Gbps (3.2 Gen 1)
PCI Express x16 slot:

1x PCI Express 3.0 (X4 Mode), 1x PCI Express 5.0 (X16 Mode)
SATA ports:

SATA III 6GBPS
Raid:

Raid 0, Raid 1, Raid 10
Channel number:

8 (7.1)
PS / 2:

1 (keyboard or mouse)
Voltage connections:

1x 24-pin ATX Main Power Connector, 1 x 8-pin ATX 12V Power Connector
USB-C:

1 x Support for 1 USB 5Gbps port
Supported M.2 formats:

1x 2280/22110 (PCIE 4.0 x4 / X2 mod), 1x 2280/2580 (PCIE 5.0 x4 / X2 mod)

Начин на испорака

Бесплатна достава во градско подрачје на Скопје за нарачка со вредност поголема од 10000 денари
Подигнување од нашата продавница

Начин на плаќање

Плаќање при подигнување
Фактурно плаќање

Сподели:

Basic characteristics - Processor bolder (Socket): AMD B850 Memory: DDR5 Memory slots: 4 Supported memory: 4.400mt / s, 4.800mt / s, 5,200mt / s, 5.600mt / s (o.c.), 6,000mt / s (o.c.), 6.200mt / s (O.c.), 6.400mt / s (o.c.), 6.600mt / s (o.c.), 6.800mt / s (o.c.), 7.000mt / s (o.c.), 7.600mt / s (o.c.), 7.800mt / s (O.c.), 8.000mt / s (o.c.), 8,200mt / s (O.C.) Maximum total memory: Dual channel (dual-channel) Memory mode, AMD Extended Profiles for Overclocking (EXPO), Extreme Memory Profile (XMP), Non-ECC Support Udimm Memory, Unbuffered ECC memory Support - PCI Express X16 Slot: 1x Express 5.0 (X16 Mode): 4 hours Connections: SATA III 6GBPS M2 Formats: 1x 2280/22110 (PCIE Support 4.0 X4 / X2 MOD), 1x 2280/2580 (PCIE 5.0 x4 / X2 mod) RAID: RAID 10 Network - Wired Network (LAN) Model: Realtek Audio - Channel number: Realtek Note: High Definition Connections in the last panel - Number of DisplayPort ports: 2 DisplayPort ports: 2x DisplayPort 1.4 HDMI ports: 1 HDMI 2.1 PS / 2: 1 Total USB connectors: 1 USB ports: 2x USB 2.0,3x USB 5GBPS (3.2 GEN 1) USB-C Connections: 1x USB 5GBPS (3.2 Gen 1) RJ-45 (LAN): 1 Audio: 3x 3.5mm Other connections: 1x Q-Flash Plus Dashes: 1 x 8-pin ATX 12V Power Connector, 1x 24-pin ATX Main Power Connector 1 USB 5Gbps Port, 2 Support for 1 USB 2.0 port USB-C: 1 x Support For 1 USB 5GBPS Port Audio: 1x Front Panel Header Other connections: 1 x CLEAR CMOS Jumper, 1 x RGB LED, 1 x RGB LED, 1 x System Fan / Water Cooling Pump Headers, 1 x Trusted Platform Module (TPM), 1x CPU Fan / Water Cooling Pump Header, 2 x M.2 Socket 3,2X Addressable RGB Gen2 LED Strip Headers, 4 x SATA 6GB PLUS, Q-Flash, Q-Flash Plus, Smart Backup, UEFI BIOS Physical Features - Format: MicroTX Dimensions: 244mm x 244mm reclamation period - Complaint period: 36 months
