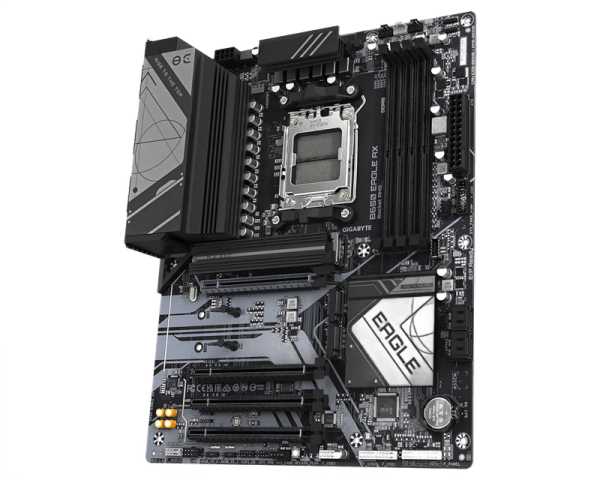

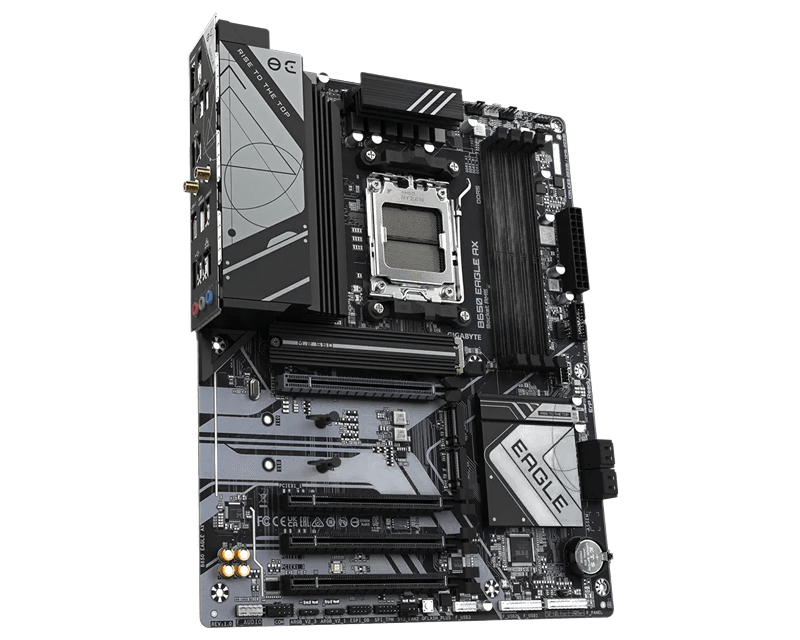

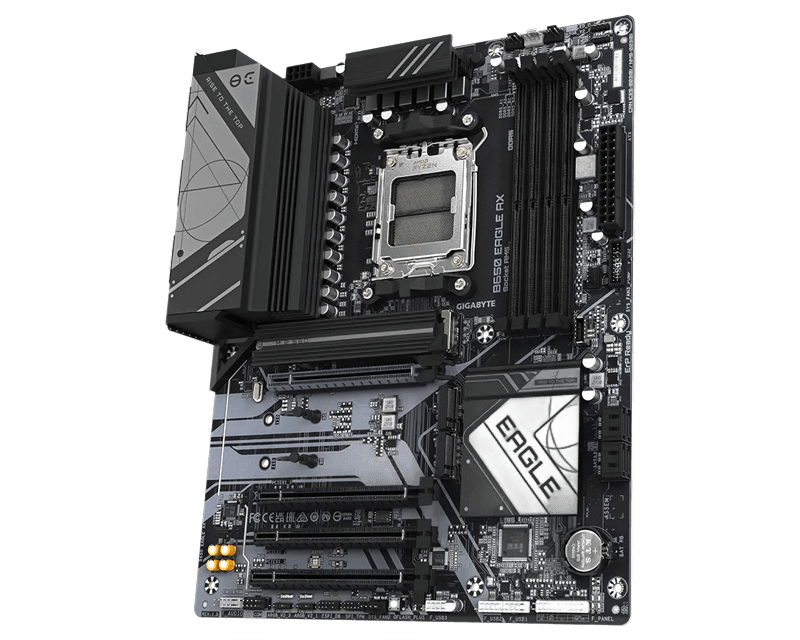

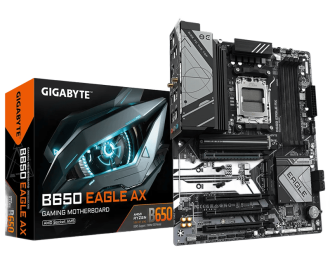

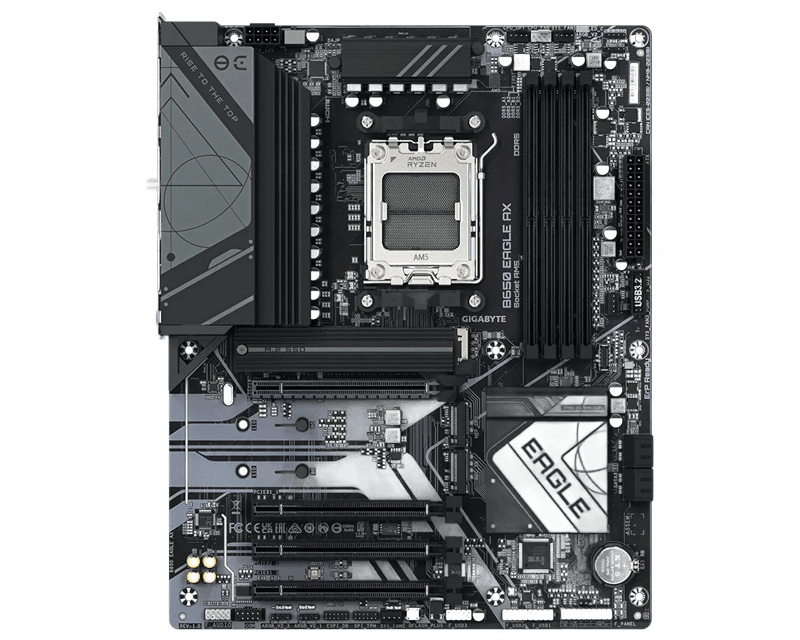

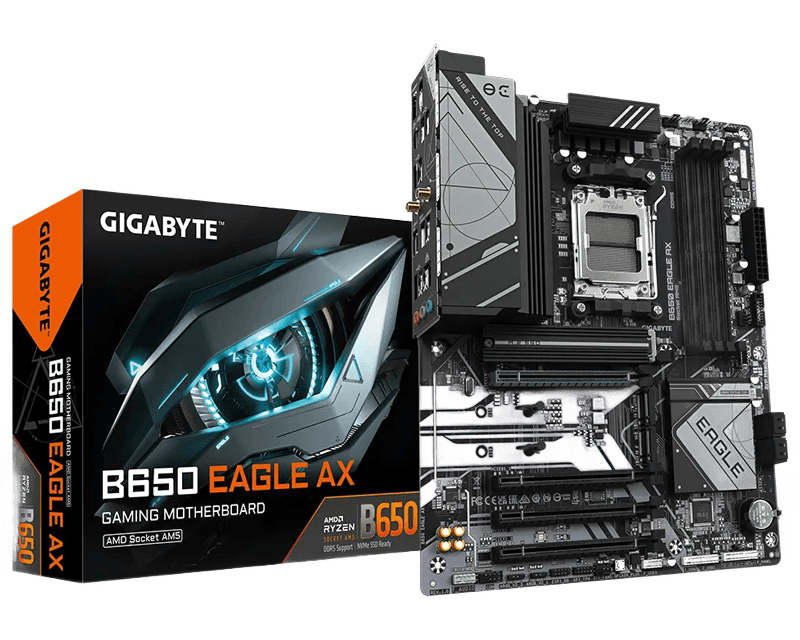

MB GIGABYTE B650 EAGLE AX REV. 1.x

MB GIGABYTE B650 EAGLE AX REV. 1.x

Варијанта:

− +

9 490 ден.

0 ден.

Не е достапен

Бренд:

Gigabyte
Артикл:

INS-38-3399-E
Достапен за порачка:

Не е достапен

Да
Број на физички јадра:

4
Chipset:

AMD B650
RAM type:

DDR5
USB 3.x ports:

9
USB Type-C ports:

3 , 1
Подршка на матични плочи:

ATX
Dimensions:

305mm x 244mm
Note:

To use certain internal connectors, additional brackets or connectors on the housing are required
Warranty:

36 months
Gaming:

Yeah
Model:

Realtek
Processor bearing (Socket):

AMD AM5
USB ports:

2x USB 10GBPS (3.2 GEN 2), 6x USB 2.0
Other traits:

Support for Extreme Memory Profile (XMP), Non-ECC support Udimm Memory, Dual Channel, Support for AMD Extended Profiles for overclocking (EXPO)
Audio:

1x Front Panel Audio
Standards:

Wi-Fi 6 (802.11ax)
Wired network standards:

1000Base-T (Gigabit)
Bluetooth version:

5.3
Other connections:

1x TPM Header, 1 x Clear CMOS Jumper, 2x SYSTEM Fan Header, 1 x 4-pin CPU Fan Header, 1x CPU Fan / Water Cooling Pump Header, 3x M.2 Socket 3, 3x Addressable RGB Gen2 LED Strip Headers, 1x System Fan / Water Cooling Pump Header, 1 x Q-Flash Plus Button, 1x RGB LED Strip Header
USB-C ports:

1x USB 5Gbps (3.2 Gen 1)
Maximum total memory:

192GB
PCI Express x16 slot:

1x PCI Express 4.0 (x16 Mode), 3x PCI Express 3.0
SATA ports:

SATA III 6GBPS
Raid:

Raid 0, Raid 1, Raid 10
Channel number:

8 (7.1)
PS / 2:

1 (keyboard or mouse)
Voltage connections:

1 x 24 PIN ATX Power Connector, 1 x 8-pin ATX 12V Power Connector
USB-C:

1 x Support for 1 USB 5Gbps port

Начин на испорака

Бесплатна достава во градско подрачје на Скопје за нарачка со вредност поголема од 10000 денари
Подигнување од нашата продавница

Начин на плаќање

Плаќање при подигнување
Фактурно плаќање

Сподели:

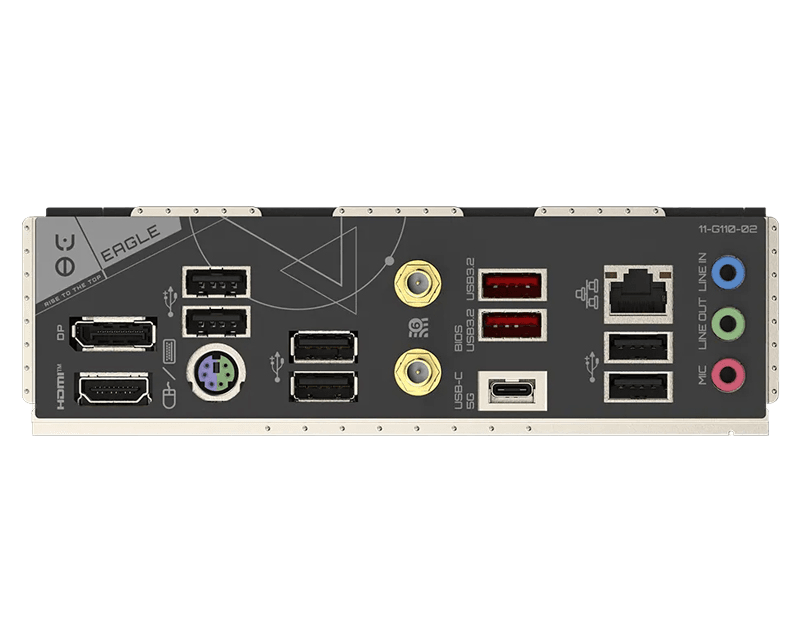

Basic characteristics - Socket: AMD B65 Chipset: AMD B650 Memory: DDR5 Memory slots: 4 Supported memory: 4.400mt / s, 4.800mt / s, 5.200mt / s, 5.600mt / s (o.c.), 6,000mt / s (o.c.), 6.200mt / s (O.c.), 6.400mt / s (o.c.), 6.800mt / s (o.c.), 7.000mt / s (o.c.), 7.600mt Maximum total memory: 192GB Other features: Dual Channel, AMD Extended Support Profiles for overclocking (EXPO), Extreme Memory Profile (XMP), Support for non-ECC Udimm X16 Slots: 1x PCI Express 4.0 (x16 Mode), 3x PCI Express (Total): 4 hours Attachments: SATA III 6GBPS Number M.2 Slots: 3 RAID: RAID 0, RAID 1, RAID 10 Network - Wired network (LAN): 1000Base-T (Gigabit) Model: Realtek RTL8852CE Wi-Fi: Wi-Fi 6 (802.11AX) Bluetooth: Da Bluetooth: 8 (7.1) Model: realtek Note: High Definition Connections at last Panel - Number of DisplayPort ports: 1 HDMI ports: 1 PS / 2: 1 (keyboard or mouse) Total USB ports: 1 USB ports: 2x USB 10x USB 2.0 USB-C ports: 1x USB 5GBPS (3.2 GEN 1) RJ-45 (LAN): 1 Audio: 3x 3.5mm Other connections: 2x SMA Antenna Connectors (2T2R) Internal connectors - Voltage connections: 1 x 24 PIN ATX 12V Power Connector USB: 1 x Support for 1 USB 5GBPS port audio: 1x Front Panel audio Serial port: 1 Other connections: 1 x 4-pin CPU Fan Header, 1 x Front Panel Headon, 1x CPU Fan / Water Cooling Pump Header, 1x RGB LED Strip Header, 1x System Fan / Water Cooling Pump Header, 1x TPM Header, 2x System Fan Header, 3x Addressable RGB Gen2 M.2 Socket 3.4 x SATA 6GB / S Note: Additional bracket-and connections on the physical characteristics - Format: ATX Dimensions: 305mm x 244mm Complastic period - Commercial period: 36 months
