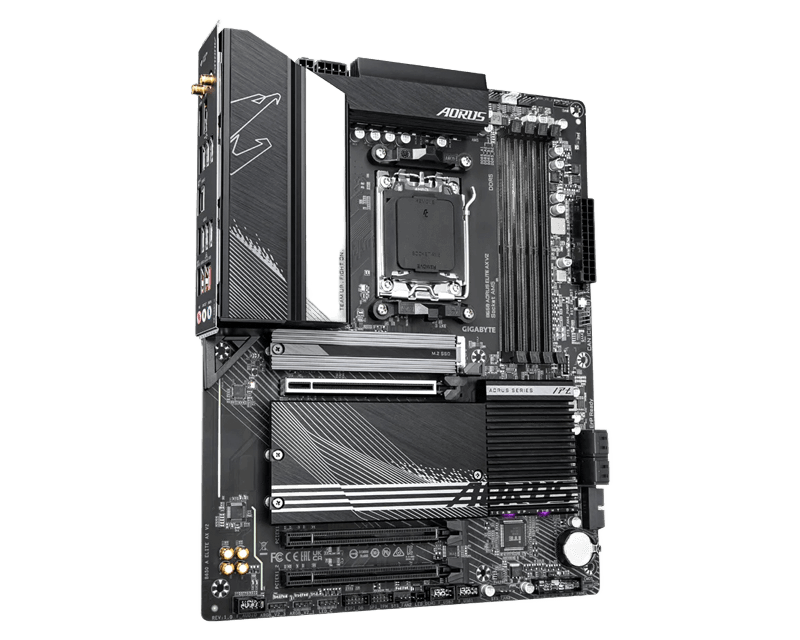

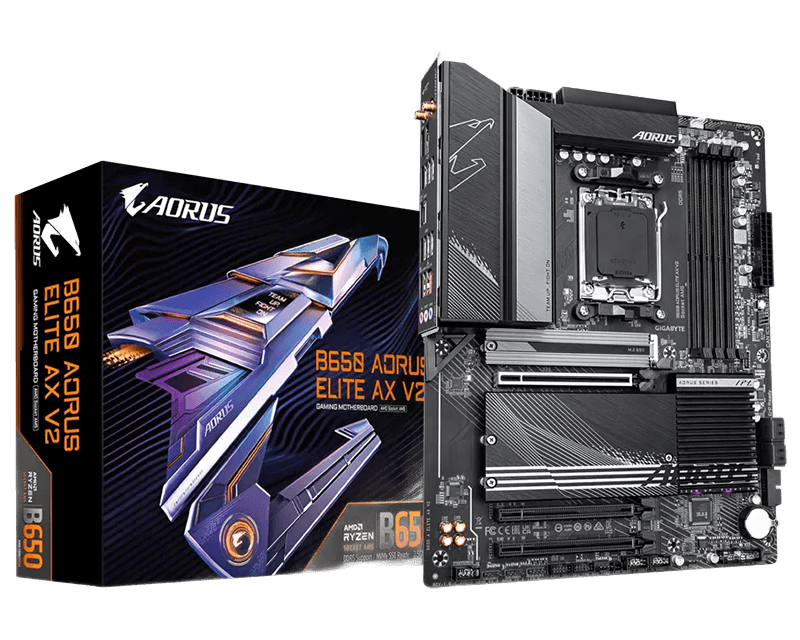

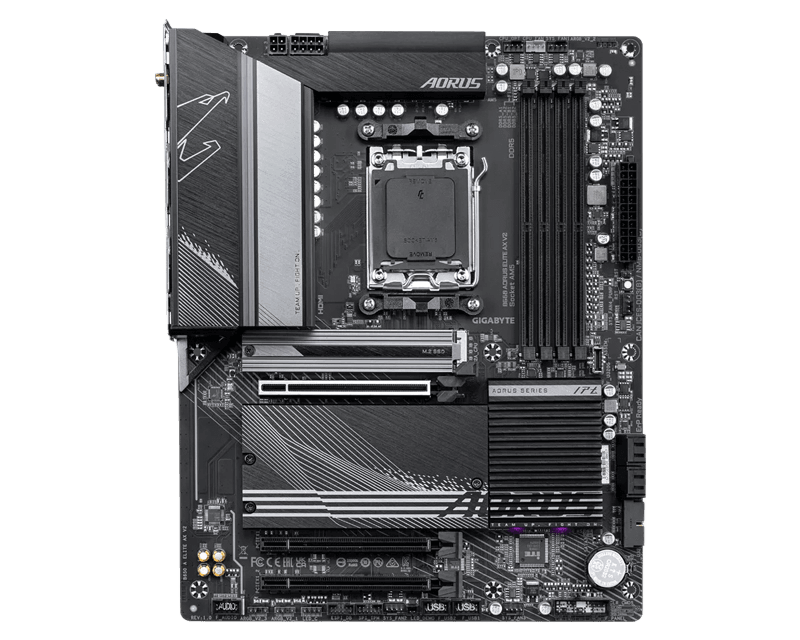

MB GIGABYTE B650 A ELITE AX V2 REV. 1.x

MB GIGABYTE B650 A ELITE AX V2 REV. 1.x

Варијанта:

− +

12 290 ден.

0 ден.

Не е достапен

Бренд:

Gigabyte
Артикл:

INS-38-3398-E
Достапен за порачка:

Не е достапен

Да
Број на физички јадра:

4 , 10
Chipset:

AMD B650
RAM type:

DDR5
USB Type-C ports:

3 , 1
Подршка на матични плочи:

ATX
Dimensions:

305mm x 244mm
Note:

To use certain internal connectors, additional brackets or connectors on the housing are required
Warranty:

36 months
Gaming:

Yeah
Model:

Realtek
Processor bearing (Socket):

AMD AM5

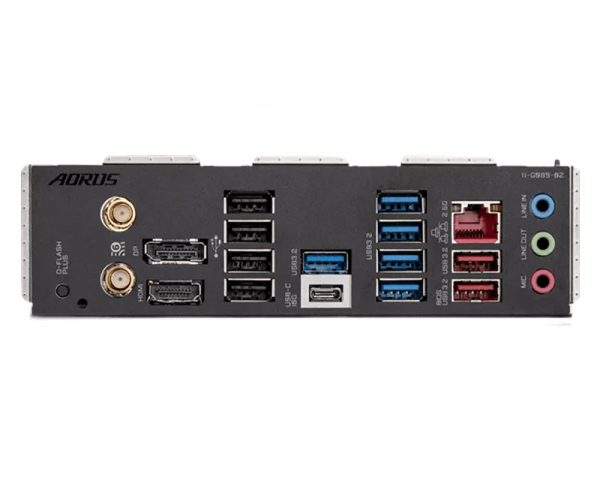

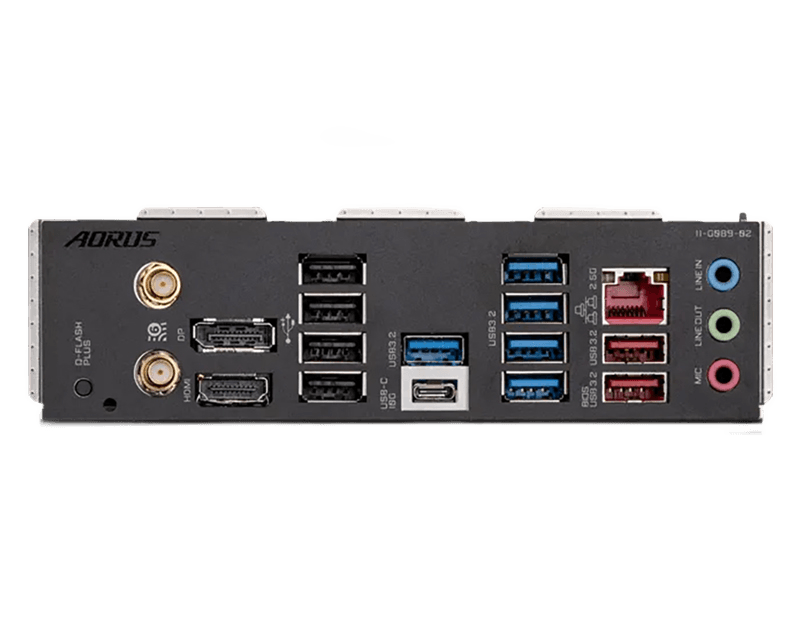

USB ports:

4x USB 2.0, 5x USB 5Gbps (3.2 Gen 1)
Other traits:

Support for Extreme Memory Profile (XMP), Non-ECC support Udimm Memory, Dual Channel, Support for AMD Extended Profiles for overclocking (EXPO)
Audio:

1x Front Panel Audio
Standards:

Wi-Fi 6 (802.11ax)
Wired network standards:

2.5GBASE-T (Gigabit)
Bluetooth version:

5.3
Other connections:

1x TPM Header, 1 x Clear CMOS Jumper, 4 x SATA 6GB, 1 x CPU Fan Header, 3x System Fan Header, 1x CPU Fan / Water Cooling Pump Header, 1 x Reset Button, 3x M.2 Socket 3, 3x Addressable RGB Gen2 LED Strip Headers, 1x System Fan / Water Cooling Pump Header, 1x RGB LED Strip Header
USB:

2 x Support for 1 USB 2.0 port, 1 x Support for 1 USB 5Gbps port
USB-C ports:

1x USB 10GBPS (3.2 GEN 2)
Maximum total memory:

192GB
PCI Express x16 slot:

1x PCI Express 4.0 (X16 Mode), 2x PCI Express 3.0 (X1 Mode)
SATA ports:

SATA III 6GBPS
Raid:

Raid 0, Raid 1, Raid 10
Channel number:

8 (7.1)
Voltage connections:

1x 8 PIN 12V Power Connector, 1x 4 PIN 12V Power Connector, 1 x 24 PIN ATX Power Connector
USB-C:

1 x Support for 1 USB 20Gbps port

Начин на испорака

Бесплатна достава во градско подрачје на Скопје за нарачка со вредност поголема од 10000 денари
Подигнување од нашата продавница

Начин на плаќање

Плаќање при подигнување
Фактурно плаќање

Сподели:

Basic characteristics - Socket: AMD B65 Chipset: AMD B650 Memory: DDR5 Memory slots: 4 Supported memory: 4.400mt / s, 4.800mt / s, 5.200mt / s, 5.600mt / s (o.c.), 6,000mt / s (o.c.), 6.200mt / s (O.c.), 6.400mt / s (o.c.), 6.600mt / s (o.c.), 6.800mt / s (o.c.), 7.000mt / s (o.c.), 7.600mt / s (o.c.), 7.800mt / s (O.c.), 8.000mt / s (O.C.) Maximum total memory: Dual Channel, Support for Extreme Memory Profiles (XMP), Non-ECC Support Udimm Memory Slots - PCI Express X16 Slot: 1x PCI Express 4.0 (x16 MODE), 2x PCI Express 3.0 (X1 MODE): SATA Connections: SATA III 6GBPS: RAID 0, RAID 1, RAID 10 Network - Wired Model: Realtek RTL8852CE Wi-Fi: Da Wi-Fi Standard: Wi-Fi 6 (802.11AX) Bluetooth: Da Bluetooth version: 5.3 Audio - Model number: Realtek Number of DisplayPorts: 1 Total USB ports: 10 Total USB connectors: 1 USB ports: 4x USB 2.0,5x USB 5GBPS (3.2 Gen 1) USB-C ports: 1x USB 10GBPS (3.2 GEN 2) RJ (LAN): 1 Audio: 3x 3.5mm Other connections: 2x SMA Antenna Connectors - Voltage connections: 1 x 24 pin ATX Power Connector, 1x 4 PIN 12V Power Connector, 1x 8 PIN 12V POWER CONNECTOR USB: 1 x Support for 1 USB 5Gbps port, 2 x Support for 1 USB 20Gbps port audio: 1 x Clear CMOS Jumper, 1 x Front Panel Header, 1 x Reset Button, 1 x Reset Button Jumper, 1x CPU Fan / Water Cooling Pump Header, 1x System Fan / Water Cooling Pump Header, 3x Addressable RGB Gen2 LED Strip Headers, 3x M.2 Socket 3,3x System Fan Header, 4 x SATA 6GB / S Note: For The use of certain internal connectors need additional brackets or connectors on the physical characteristics housing - Format: ATX Dimensions: 305mm x 244mm Commercial period - Complamination period: 36 months
