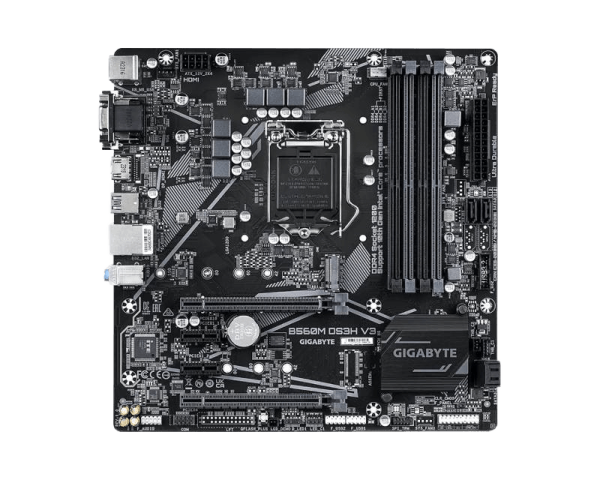

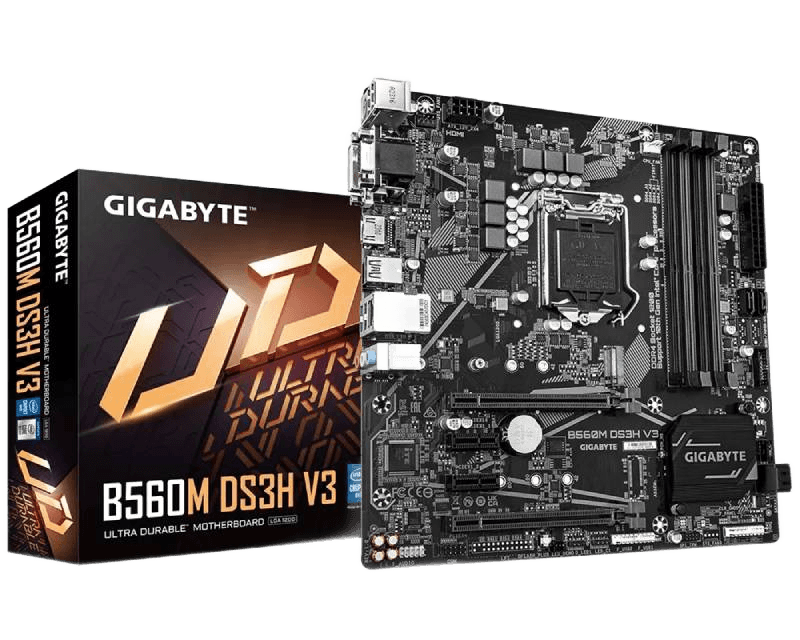

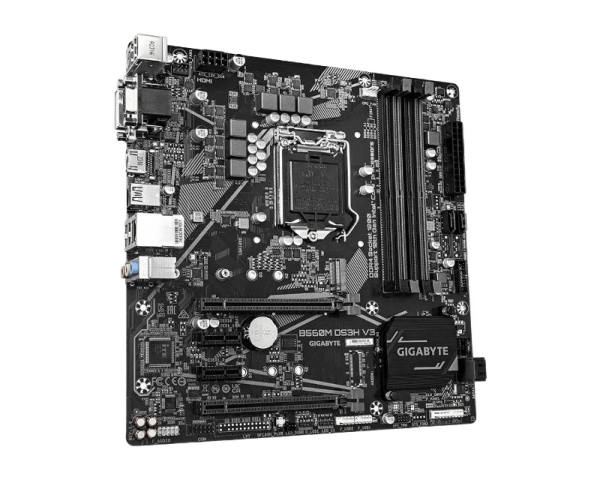

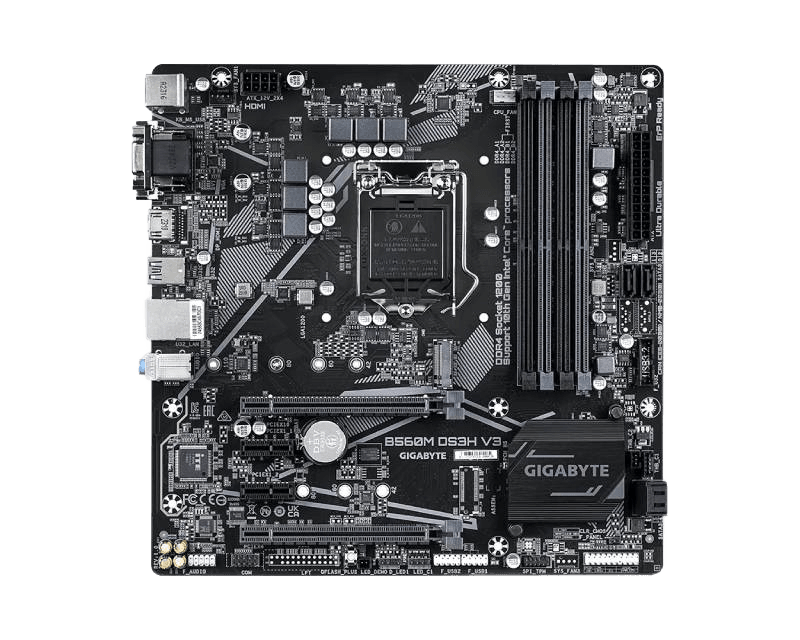

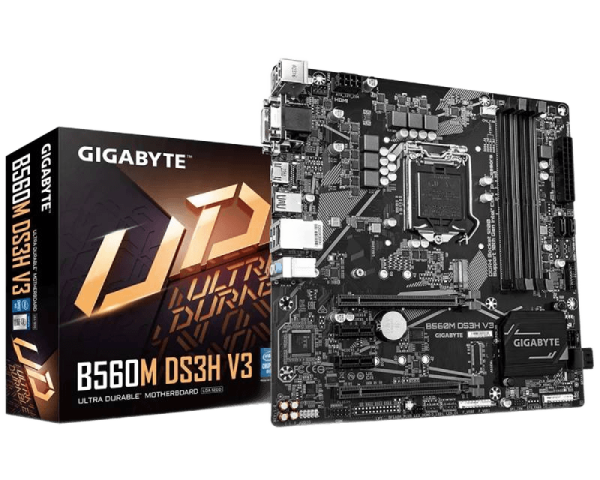

MB GIGABYTE B560M DS3H V3 REV.1.0

MB GIGABYTE B560M DS3H V3 REV.1.0

Варијанта:

− +

4 790 ден.

0 ден.

Не е достапен

Бренд:

Gigabyte
Артикл:

INS-38-440-E
Достапен за порачка:

Не е достапен

Да
Тип на меморија:

DDR4
Број на физички јадра:

4
Chipset:

Intel H470
RAM DIMMs:

2
m.2:

5
Капацитет:

128GB
USB Type-C ports:

1
Dimensions:

244mm x 244mm
Format:

Microatx
Note:

To use certain internal connectors, additional brackets or connectors on the housing are required
Warranty:

36 months
Supported technologies:

Easy tuna, Smart Backup, RGB Fusion, Q-Flash Plus, Xpress Install
Condition:

Unused
Package:

Norton Internet Security, Lan Bandwidth Management Software
Graphics:

Using the processor graphics
Model:

Realtek
Processor bearing (Socket):

Intel 1200
USB ports:

2x USB 2.0, 3x USB 5Gbps (3.2 Gen 1)
Other traits:

Support for Unbuffered ECC memory, two-channel (dual-channel) Memory mode, Support for non-ECC Udimm Memory
Audio:

1x Front Panel Audio
Wired network standards:

1000Base-T (Gigabit)
Other connections:

1 x Front Panel Header, 1x System Fan Header, 1 x Thunderbolt ™ Add-in Card Connector, 1 x Q-Flash Plus Button, 1 x 10-1 Pin System Panel Header, 1 x CPU Fan Header, 1x TPM Module Connector
PCI Express X1 Slot:

2x PCI Express 3.0
USB:

2 x Support for 1 USB 2.0 port, 1 x Support for 1 USB 5Gbps port
Supported memory:

3.200mt / s, 3.000mt / s, 2.933mt / S, 2.666mt / s, 2.400mt / s, 2.133mt / s
PCI Express x16 slot:

1x PCI Express 4.0 (X16 Mode), 1x PCI Express 4.0 (X4 Mode)
SATA ports:

SATA III 6GBPS
Raid:

Raid 0, Raid 1, Raid 5, Raid 10
Channel number:

8 (7.1)
PS / 2:

1 (keyboard or mouse)
Voltage connections:

1 x 24 PIN ATX Power Connector, 1 x 8-pin ATX 12V Power Connector
Other slots:

1x M.2 Connector, 4x SATA III

Начин на испорака

Бесплатна достава во градско подрачје на Скопје за нарачка со вредност поголема од 10000 денари
Подигнување од нашата продавница

Начин на плаќање

Плаќање при подигнување
Фактурно плаќање

Сподели:

Basic characteristics - Socket: Intel 1200 Chipset: Intel H470 Graphics: DDR4 Memory type: 4 Supported memory: 2.133mt / s, 2.400mt / s, 2.666mt, 2.933mt / s, 3.000mt / s, 3.200mt / s Maximum Total Memory: 128GB Other features: Dual Channel Memory Mode, Support for Unbuffered ECC Memory - PCI Express 4.0 (X16 Mode), 1x PCI Express 4.0 (X4 MODE) PCI Express 3.0 PCI Slot: 4 Others Slots: 1x M.2 Connector, 4x SATA III Storage Interface - SATA Accessories: SATA III 6GBPS Number: RAID 5 Network - Wired network (LAN): 1000Base-T (Gigabit) Audio - Channel number: realtek Note: High Definition Last panel connections - Number of HDMI connectors: 1 DVI ports: 1 PS / 2: 1 (keyboard or mouse) Total USB ports: 2x USB 2.0,3x USB 5GBPS (LAN): 1 Audio: 3x 3.5mm Interior connectors - Voltage connections: 1 x 24 pin ATX Power Connector, 1 x 8-pin ATX 12V Power Connector USB 5GBPS port, 2 x Support for 1 USB 2.0 PANEL Audio Serial port: 1 Other connections: 1 x 10-1 Pin System Panel Header, 1 x Clear CMOS Jumper, 1 x CPU Fan Header, 1 x Front Panel Header, 1 x RGB LED Header, 1 x Thunderbolt ™ Add-in Card Connector, 1x TPM Module Connector Note: For use of certain internal connectors, additional brackets or connectors on the housing are required to exploit certain internal connectors Characteristics - Supported technologies: Easy tuna, Q-Flash, Q-Flash Plus, RGB Fusion, Smart Backup, Xpress: Microatx Dimensions: 244mm X 244mm Package: LAN Bandwidth Management Software: Unorified Advertising Period - Complaints: 36 months
