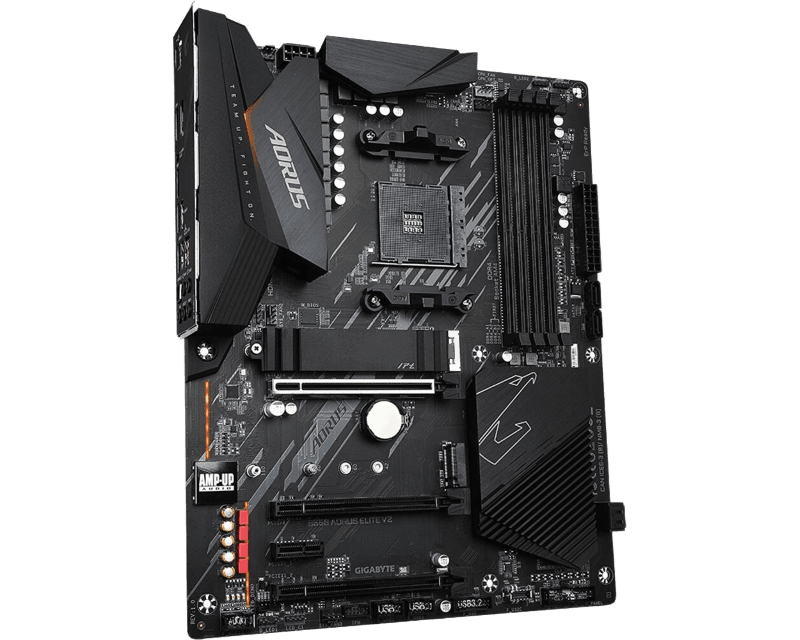

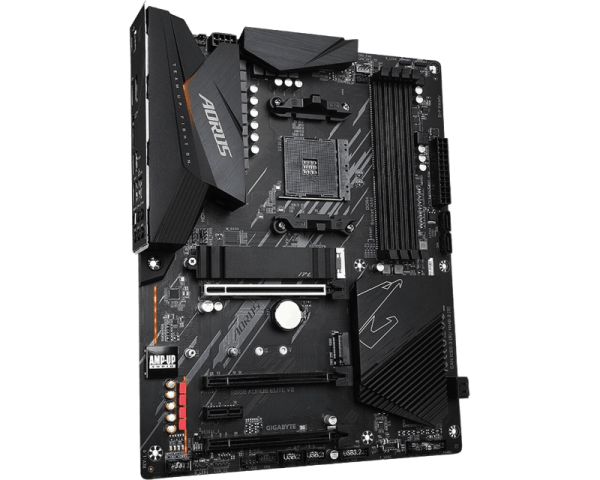

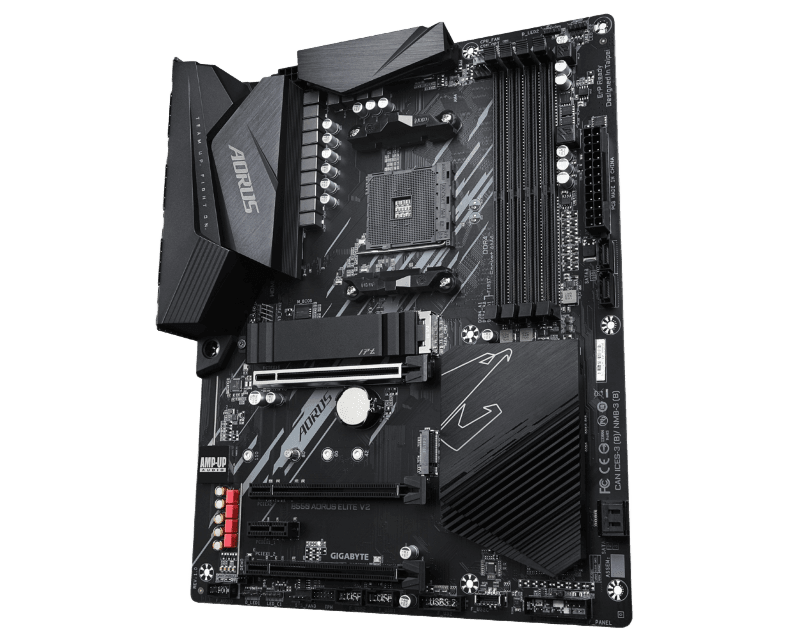

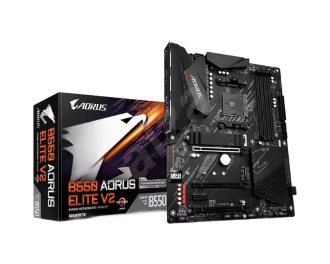

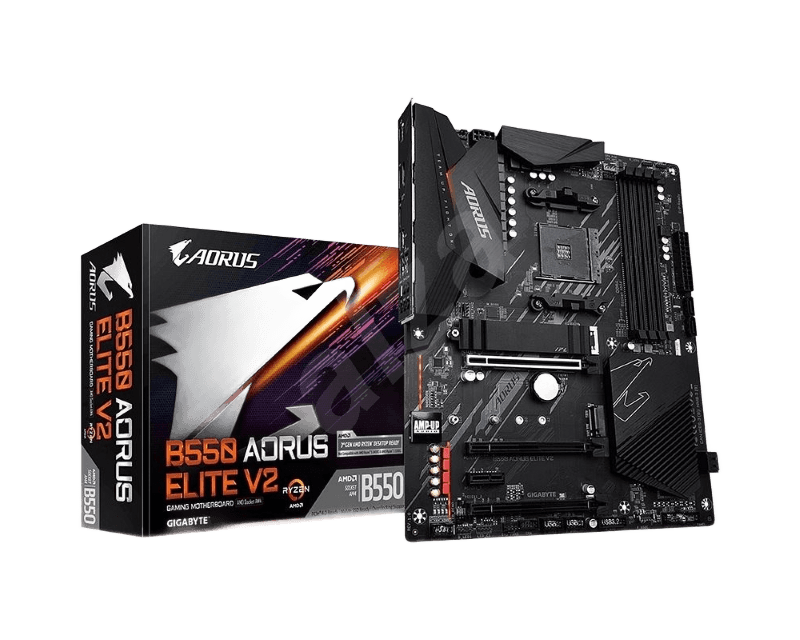

MB GIGABYTE B550 AORUS ELITE V2 REV. 1.x

MB GIGABYTE B550 AORUS ELITE V2 REV. 1.x

MB GIGABYTE B550 AORUS ELITE V2 REV. 1.x

Варијанта:

− +

8 090 ден.

0 ден.

Не е достапен

Бренд:

Gigabyte
Артикл:

INS-38-403-E
Достапен за порачка:

Не е достапен

Да
Тип на меморија:

DDR4
Број на физички јадра:

4
Chipset:

AMD B550
RAM DIMMs:

2
USB 3.x ports:

7
Капацитет:

128GB
USB Type-C ports:

1
Подршка на матични плочи:

ATX
Dimensions:

305mm x 244mm
Note:

To use certain internal connectors, additional brackets or connectors on the housing are required
Warranty:

36 months
Condition:

Unused
Package:

Full Box Retail
Model:

Realtek
Processor bearing (Socket):

AMD AM4
USB ports:

2x USB 2.0, 2x USB 10GBPS (3.2 GEN 2), 3x USB 5GBPS (3.2 GEN 1)
Other traits:

Extreme Memory Profile Support (XMP), Dual Channel Memory mode
Audio:

Front Panel Audio
Wired network standards:

2.5GBASE-T (Gigabit)
Other connections:

1x TPM Header, 1 x Clear CMOS Jumper, 2 x Addressable LED Strip Headers, 1 x Water Pump Connector, 3x System Fan Header, 1x CPU Fan Header, 2 x RGB LED Strip Headers
PCI Express X1 Slot:

1x PCI Express 3.0
USB:

2 x Support for 4 USB 2.0 ports, 1 x Support for 2 USB 5GBPS ports
Supported memory:

2.133MHz, 3,300MHz (O.C.), 3,300MHz (O.C.), 2.400MHz, 3.800MHz (O.C.), 3,733MHz (O.C.), 3,400MHz (O.C.), 3.866MHz (O.C.), 4.000MHz (O.C.), 2,667MHz, 4.400MHz (O.C.), 2.933MHz, 4.733MHz (O.C.), 3.200MHz
PCI Express x16 slot:

3x PCI Express 4.0
SATA ports:

SATA III 6GBPS
Raid:

Raid 0, Raid 1, Raid 10
Channel number:

8 (7.1)
Voltage connections:

ATX 24pin, 1x 8 PIN 12V Power Connector
USB-C:

1 x Support for 1 USB 5Gbps port

Начин на испорака

Бесплатна достава во градско подрачје на Скопје за нарачка со вредност поголема од 10000 денари
Подигнување од нашата продавница

Начин на плаќање

Плаќање при подигнување
Фактурно плаќање

Сподели:

Basic characteristics - Processor bay (socket): AMD B550 Memory: DDR4 Memory slots: 4 Supported memory: 2.133MHz, 2.400MHz, 2.667MHz, 3.300MHz (o.c.), 3.400MHz (O.c.), 3,466MHz (O.c.), 3,600MHz (O.C.), 3.800MHz (O.C.), 4,000MHz (O.C.), 4,400MHz (O.C.) Maximum total memory: 128GB Other features: Double-channel (Dual-Channel) Support for Extreme Memory Profile (XMP) Software - PCI Express 4.0 PCI Express 3.0 Storage Interface - SATA Connections (Total): 4 hours: SATA III 6GBPS Number M.2 Slots: 2 RAID: RAID 0, RAID 1, RAID 10 Network - Wired Network: 2.5GBase-T (Gigabit) Model: Realtek Note: 1 HDMI ports: 1 Total USB ports: 7 USB ports: 2x USB 10Gbps (3.2 GEN 2), 2x USB 2.0,3x USB 5GBPS (3.2): 1 Audio: 1x 3.5mm Other connections: 1 x Q-Flash Plus Button Internal Connections - Voltage connections: 1x 8 PIN 12V Power Connector, ATX 24pin USB: 1 x Support for 2 USB 5GBPS port, 2 x Support for 4 USB 2.0 ports for 1 USB 5GBPS port audio: 1 x Water Pump Connector, 1x CPM Header, 2 x Addressable LED Strip Headers, 2 x RGB LED Strip Headers, 3x System Fan Header Note: For use of certain internal connectors, additional brackets or connections on the physical characteristics are required: ATX Dimensions: 305mm x 244mm Packaging: Full Box Retail Condition: Unused reclivative period - Commercial period: 36 months
