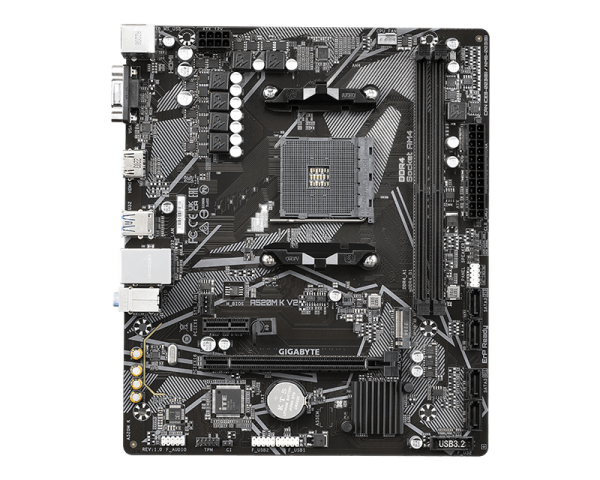

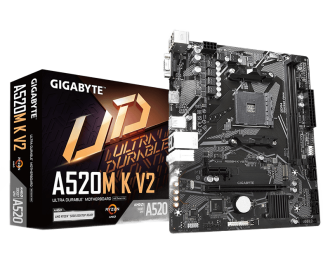

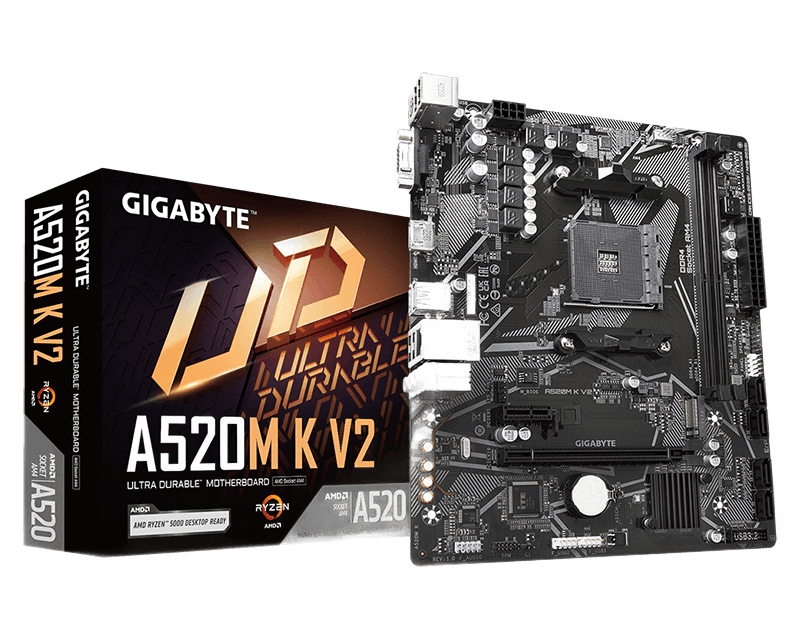

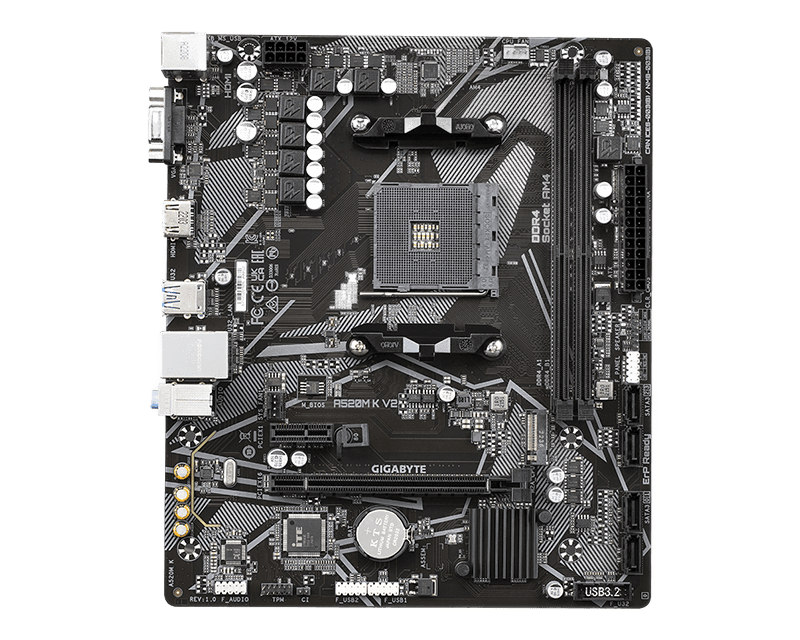

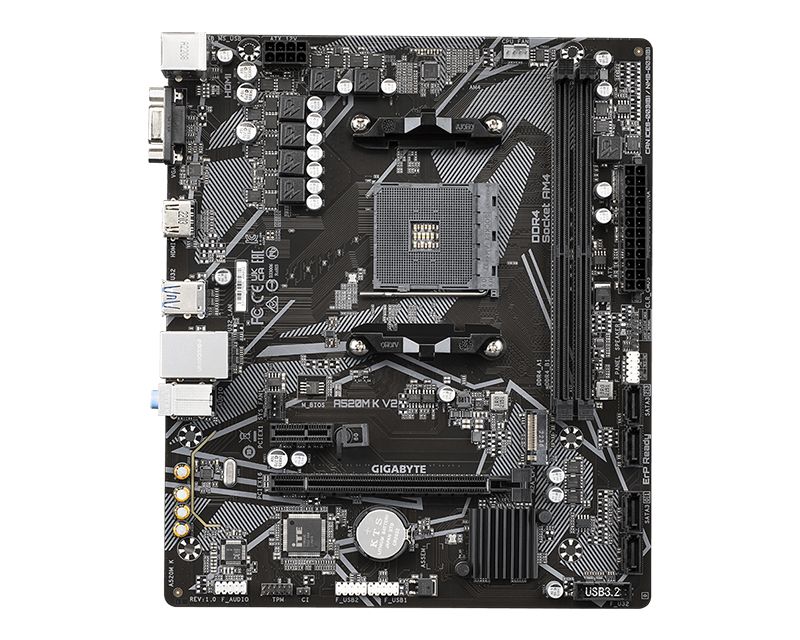

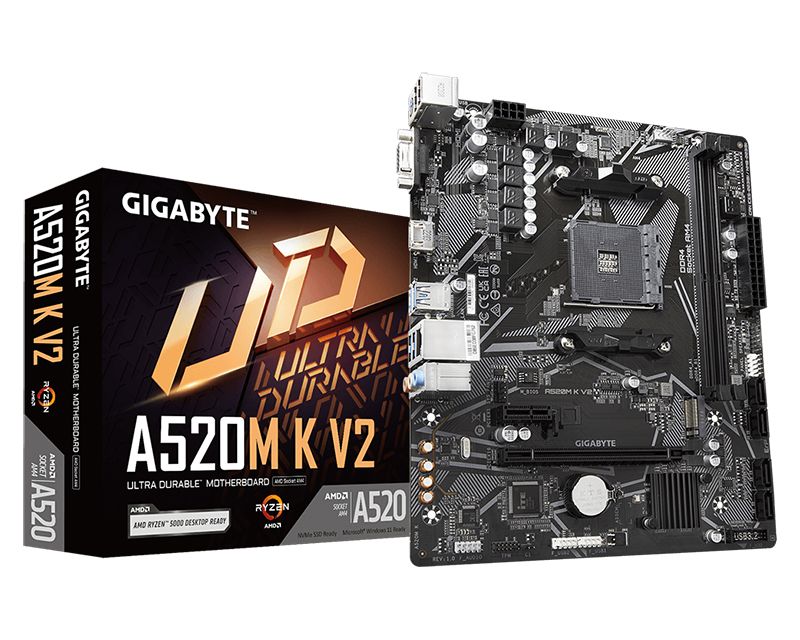

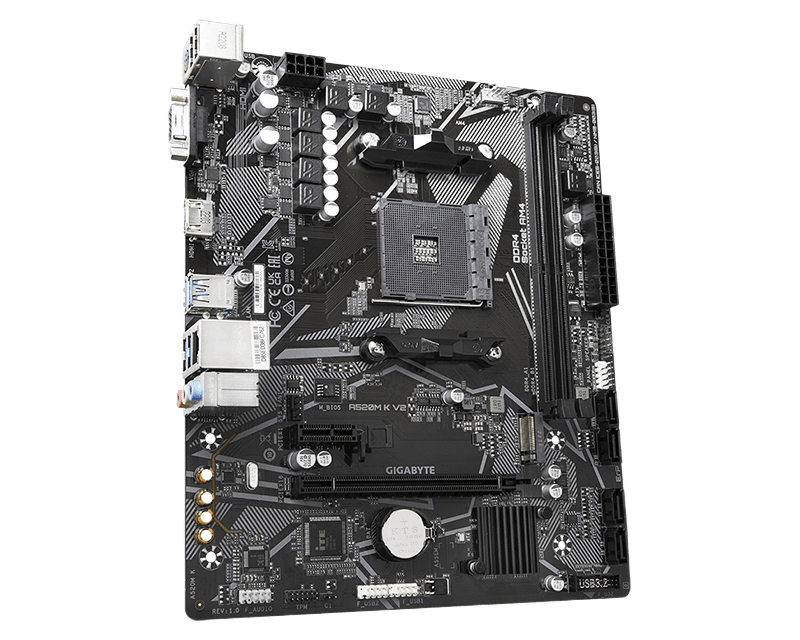

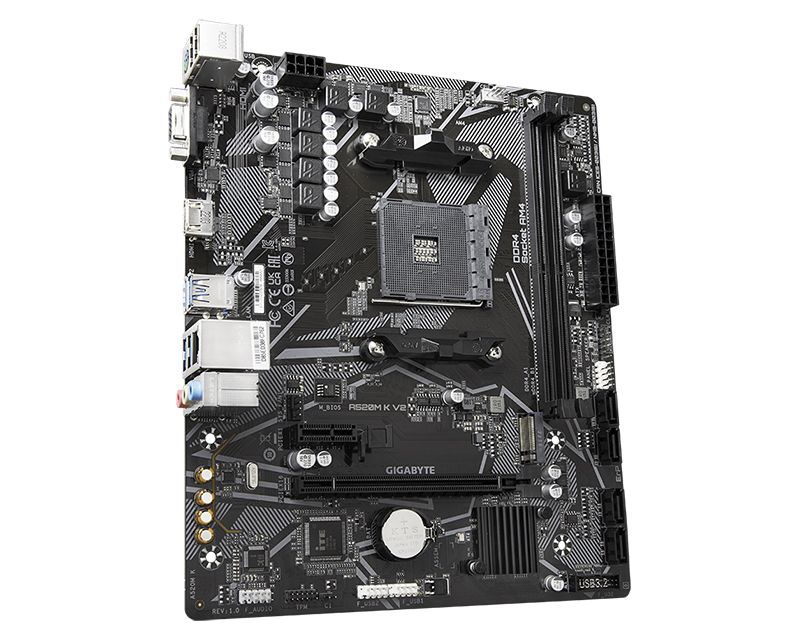

MB GIGABYTE A520M K V2 REV. 1.x AMD AM4

MB GIGABYTE A520M K V2 REV. 1.x AMD AM4

Варијанта:

− +

3 290 ден.

0 ден.

Не е достапен

Бренд:

Gigabyte
Артикл:

INS-38-426-E
Достапен за порачка:

Не е достапен

Да
Тип на меморија:

DDR4
Капацитет:

64GB
Број на физички јадра:

6 , 4
Chipset:

AMD A520
RAM DIMMs:

2
USB Type-C ports:

1
Dimensions:

233mm x 198mm
Format:

Microatx
Note:

To use certain internal connectors, additional brackets or connectors on the housing are required
Warranty:

36 months
Condition:

Unused
Package:

Full Box Retail
Model:

Realtek
Processor bearing (Socket):

AMD AM4
USB ports:

4x USB 5GBPS (3.2 GEN 1), 2x USB 2.0
Other traits:

Support for Unbuffered ECC memory, Extreme Memory Profile Support (XMP), Dual Channel (Dual-Channel) Memory mode, Support for non-ECC Udimm Memory
Audio:

1x Front Panel Audio, 1x Speaker Header
Wired network standards:

1000Base-T (Gigabit)
Other connections:

1x Chassis Intrusion Header, 1x TPM Header, 1 X Front Panel Header, 1 x Clear CMOS Jumper, 4 x SATA 6GB / s, 1 x M.2 Socket 3, 1 x 4-pin CPU Fan Header, 1x System Fan Header
PCI Express X1 Slot:

1x PCI Express 3.0
USB:

2 x Support for 1 USB 2.0 port, 1 x Support for 1 USB 5Gbps port
Supported memory:

2.133MHz, 2.400MHz, 3,600MHz (O.C.), 3,733MHz (O.C.), 3.400MHz (O.C.), 3,866MHz (O.C.), 4,000MHz (O.C.), 4.266MHz (O.C.), 2,667MHz, 4.400MHz (O.C.), 2.933MHz, 4.600MHz (O.C.), 4.800MHz (O.C.), 3.200MHz, 5.100MHz (O.C)
PCI Express x16 slot:

1x PCI Express 3.0 (X16 Mode)
SATA ports:

SATA III 6GBPS
Raid:

Raid 0, Raid 1, Raid 10
Channel number:

8 (7.1)
PS / 2:

1 (keyboard or mouse)
Voltage connections:

1x 24-pin ATX Main Power Connector, 1 x 8-pin ATX 12V Power Connector

Начин на испорака

Бесплатна достава во градско подрачје на Скопје за нарачка со вредност поголема од 10000 денари
Подигнување од нашата продавница

Начин на плаќање

Плаќање при подигнување
Фактурно плаќање

Сподели:

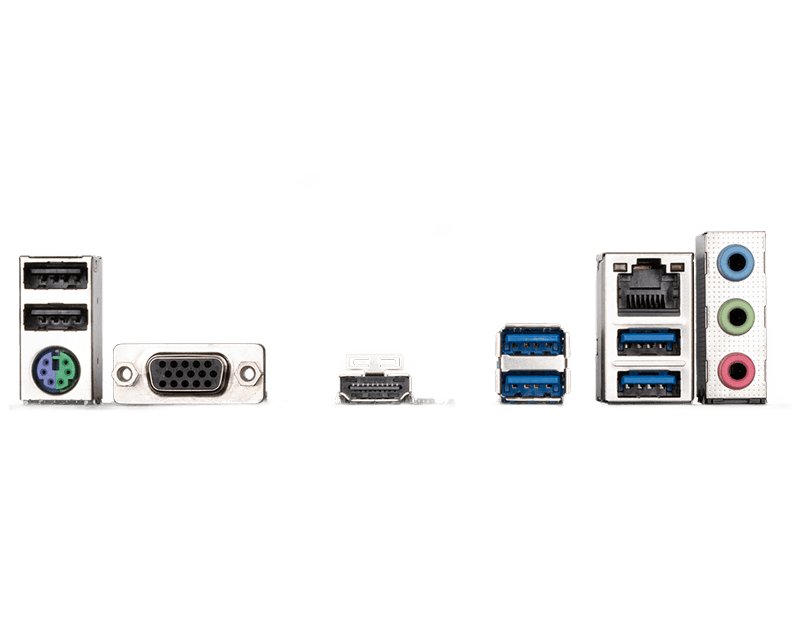

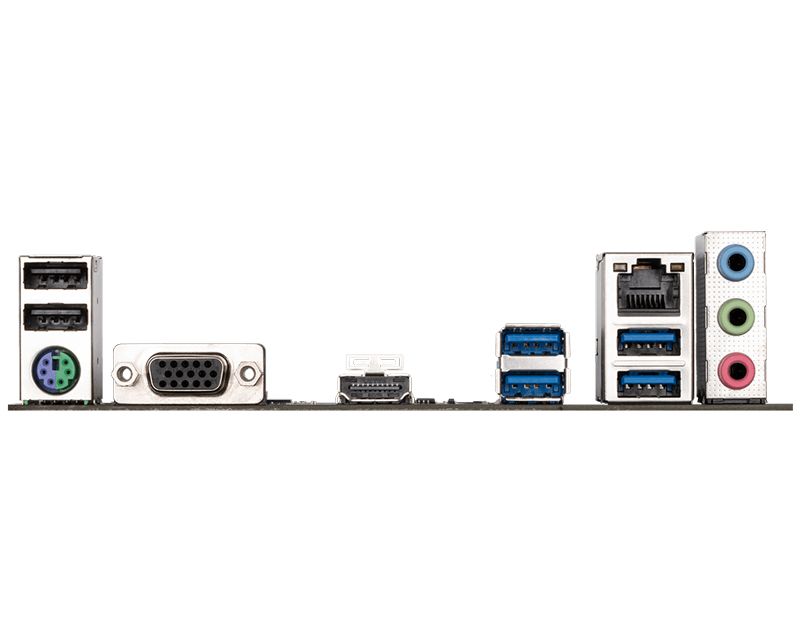

Basic characteristics - Processor - processor deposit: AMD A520 Memory: DDR4 Memory slots: 2 Supported memory: 2.133MHz, 2.400MHz, 2.667MHz, 3.400MHz (o.c.), 3.400MHz (O.c.), 3.600MHz (O.c.), 3.733MHz (O.C.), 3,866MHz (O.c.), 4,133MHz (O.C.), 4.400MHz (O.C.), 4,600MHz (O.C.), 5.100MHz (O.C) Maximum Total Memory: 64GB Other features: Double-channel (Dual-Channel) Support for Extreme Memory Profile, Unbuffered ECC memory - PCI Express X16 Slot: 1x PCI Express 3.0 (X16 Mode) PCI Express X1 Slot: 1x PCI Express 3.0 Storage Interface - SATA Accessories: 4 hours: RAID 0, RAID 1, RAID 10 Network - Wired network: Realtek Audio - Channel: Realtek Accessories on the last panel - Number HDMI Connections: 1 VGA D-Sub: 1 PS / 2: 1 (Keyboard or Mouse) Total USB ports: 6 USB 2.0,4x USB 5GBPS (LAN): 1 Audio: 3x 3.5mm Interior connectors - Voltage connections: 1 x 8-pin ATX 12V Power Connector, 1x 24-pin ATX Main Power Connector USB: 1 x Support for 1 USB 5GBPS port, 2 x Support for 1 USB 2.0 Speaker Header Other connections: 1 x 4-pin CPU Fan Header, 1 x Front CMOS Jumper, 1 x FRONT Panel Header, 1 x M.2 Socket 3.1x Chassis Intrusion Header, 1x System Fan Header, 1x TPM Header, 4 x SATA 6GB Needed Additional brackets or connectors on the physical characteristics: 233mm x 198mm Packaging: Full box Retail Condition: Unused reclivative period - Complamination period: 36 months
