B760 DS3H GEN5 rev. 1.x

Варијанта:

− +

7 890 ден.

0 ден.

Не е достапен

Бренд:

Gigabyte
Шифра:

INS-38-10157-E
Достапност:

Достапно за нарачка (рок од 1 до 2 дена)
Број на физички јадра:

6 , 4
Chipset:

Intel B760
RAM type:

DDR5
m.2:

5
Капацитет:

256GB
USB Type-C ports:

1
Form Factor:

ATX
Dimensions:

305mm x 244mm
Note:

To use certain internal connectors, additional brackets or connectors on the housing are required
Warranty:

36 months
Supported technologies:

Smart Backup, Q-Flash Plus, GIGABYTE Control Center, AI PerfDrive

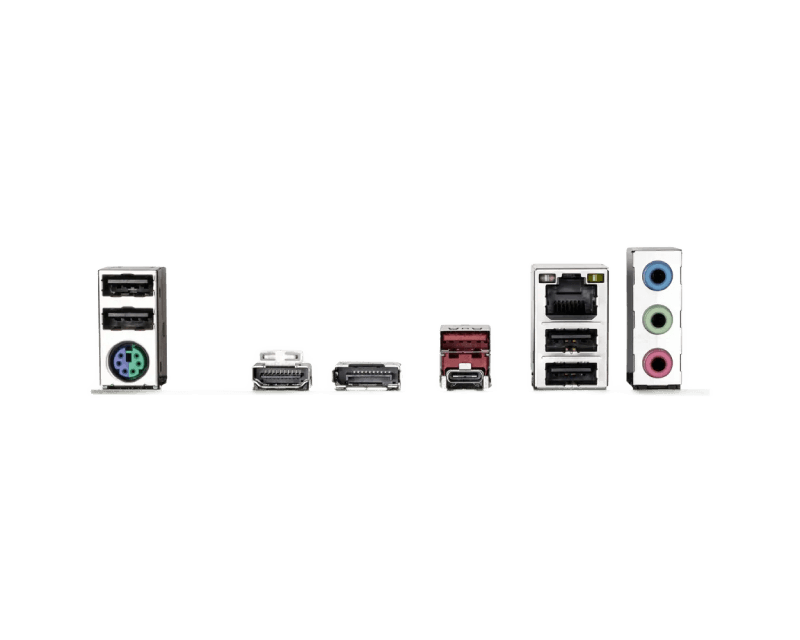

DisplayPort ports:

1x DisplayPort
HDMI connectors:

1x HDMI
Package:

Norton Internet Security, Lan Bandwidth Management Software
Model:

Realtek
Processor bearing (Socket):

Intel 1700
USB ports:

4x USB 2.0, 1x USB 10GBPS (3.2 GEN 2)
Audio:

1x Front Panel Audio, 1x S / PDIF output
Wired network standards:

1000Base-T (Gigabit)
USB:

2 x Support for 1 USB 2.0 port, 1 x Support for 1 USB 5Gbps port
USB-C ports:

1x USB 20GBPS (3.2 GEN 2x2)
Supported memory:

6,000MT/s (O.C.), 5,800MT/s (O.C.), 7,200MT/s (O.C.), 7,000MT/s (O.C.), 6,800MT/s (O.C.), 6,600MT/s (O.C.), 6,400MT/s (O.C.), 6,200MT/s (O.C.), 4,800MT/s, 7,600MT/s (O.C.), 7,400MT/s (O.C.), 5,600MT/s (O.C.), 5,200MT/s (O.C.), 4,000MT/s, 5,400MT/s (O.C.)
PCI Express x16 slot:

1x PCI Express 5.0 (x16 mode), 4x PCI Express 3.0 (x1 mode)
SATA ports:

SATA III 6GBPS
Raid:

Raid 0, Raid 1, Raid 5, Raid 10
Channel number:

2/4 / 5.1 / 7.1
PS / 2:

1 (keyboard or mouse)
Voltage connections:

1 x 24 PIN Main Power Connector, 1 x 8-pin ATX 12V Power Connector
USB-C:

1 x Support for 1 USB 5Gbps port
Supported M.2 formats:

1x 2280 (support for PCIe 4.0 x4/x2 mode)

Начин на испорака

Бесплатна достава во градско подрачје на Скопје за нарачка со вредност поголема од 15000 денари
Подигнување од нашата продавница

Начин на плаќање

Плаќање при подигнување
Фактурно плаќање

Сподели:

Basic features - Processor socket (socket): Intel 1700 Chipset: Intel B760 Memory - Memory type: DDR5 Memory slots: 4 Supported memories: 4,000MT/s, 4,800MT/s, 5,200MT/s (O.C.), 5,400MT/s (O.C.), 5,600MT/s (O.C.), 5,800MT/s (O.C.) (O.C.), 7,600MT/s (O.C.) Maximum total memory: 256GB Other features: Dual-channel memory mode, Support for ECC UDIMM memory, Support for Extreme Memory Profile (XMP), Support for Unbuffered ECC memory Slots - PCI Express x16 slot: 1x PCI Express 5.0 (x16 mode), 4x PCI Express 3.0 (x1 mode) PCI slot: 5 Storage interface - SATA ports (total): 4 SATA ports: SATA III 6Gbps Number of M.2 slots: 1 Supported M.2 formats: 1x 2280 (support for PCIe 4.0 x4/x2 mode) RAID: RAID 0,RAID 1,RAID 10,RAID 5 Network - Wired network (LAN): 1000Base-T (Gigabit) Model: Realtek Audio - Number of channels: 2/4/5.1/7.1 Model: Realtek Note: High Definition, Support for S/PDIF output Rear panel connections - Number of DisplayPort ports: 1 DisplayPort ports: 1x DisplayPort Number of HDMI ports: 1 HDMI ports: 1x HDMI PS/2: 1 (keyboard or mouse) Total USB ports: 6 Total USB-C ports: 1 USB-A ports: 1x USB 10Gbps (3.2 Gen 2),4x USB 2.0 USB-C connectors: 1x USB 20Gbps (3.2 Gen 2x2) RJ-45 (LAN): 1 Audio: 3x 3.5mm Internal connectors - Voltage connectors: 1 x 24 pin Main Power connector,1 x 8-pin ATX 12V power connector USB-A: 1 x support for 1 USB 5Gbps port,2 x support for 1 USB 2.0 port USB-C: 1 x support for 1 USB 5Gbps port Audio: 1x Front panel audio, 1x S/PDIF output Serial port: 1 Other connections: 1 x Clear CMOS jumper, 1 x CPU fan header, 1 x front panel header, 1 x Q-Flash Plus button, 1 x reset button, 1 x reset jumper, 1 x RGB LED strip header, 1 x serial port header, 1 x Trusted Platform Module (TPM), 1x CPU fan/water cooling pump header,1x system fan/water cooling pump header,2 x RGB LED strip headers,3x addressable RGB Gen2 LED strip headers,3x System Fan header Note: To use certain internal connectors, additional brackets or connectors on the case are required Other features - Supported technologies: AI PerfDrive,GIGABYTE Control Center,Q-Flash,Q-Flash Plus,Smart Backup Physical features - Format: ATX Dimensions: 305mm x 244mm Packaging: LAN bandwidth management software, Norton Internet Security Complaint period - Complaint period: 36 months
