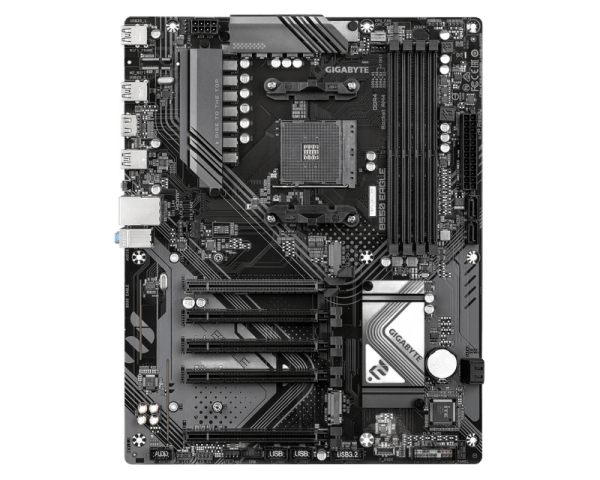

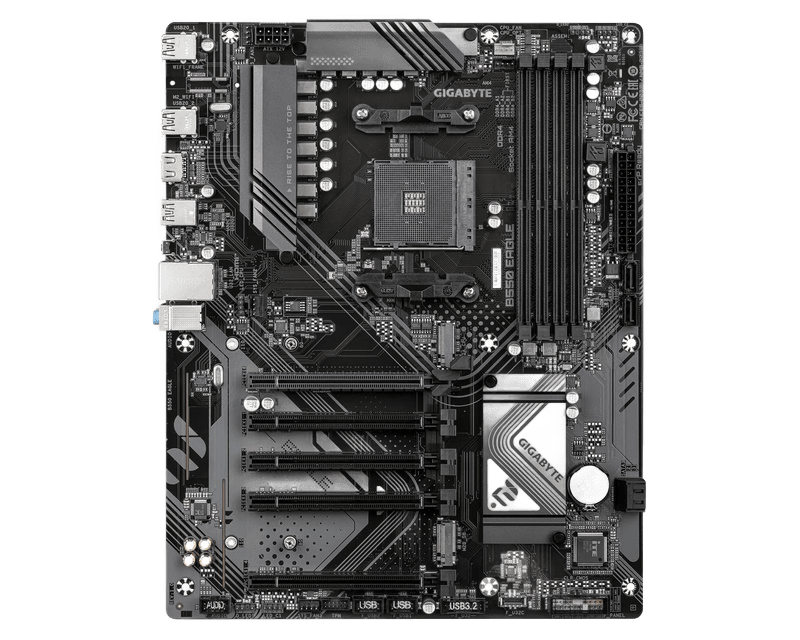

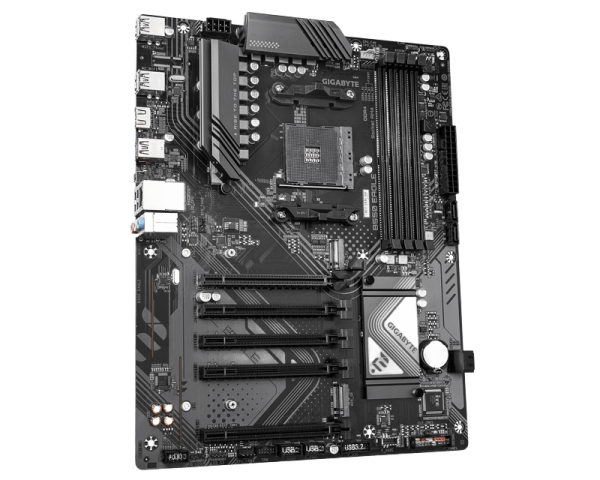

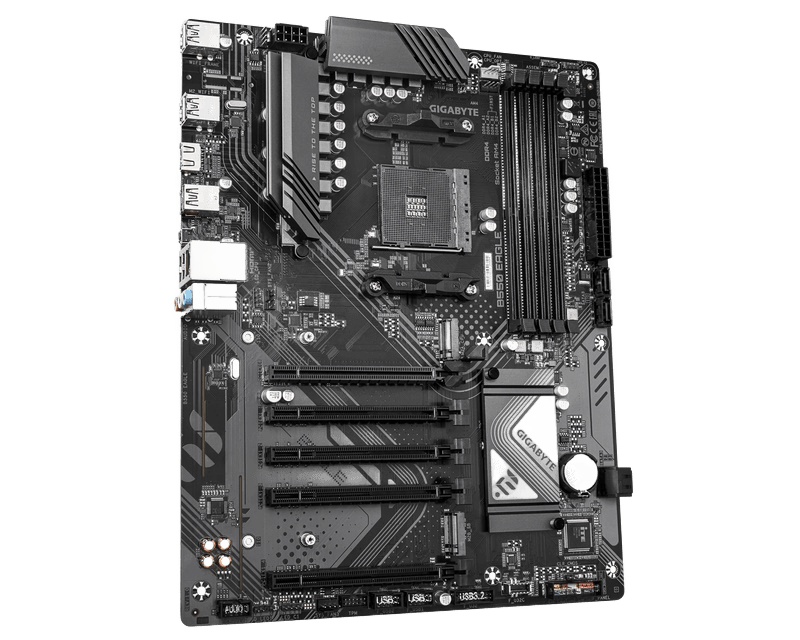

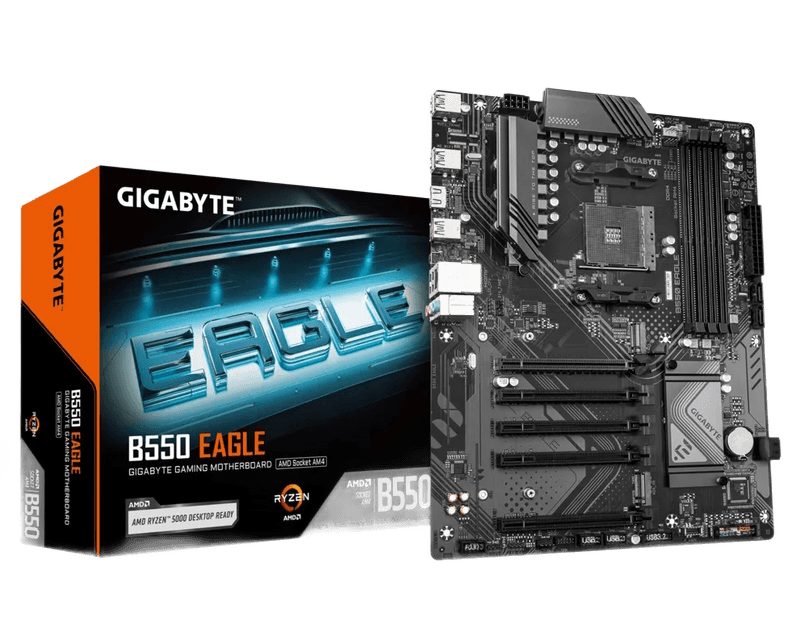

B550 EAGLE rev. 1.0

Варијанта:

− +

6 090 ден.

0 ден.

Не е достапен

Бренд:

Gigabyte
Шифра:

INS-38-7700-E
Лагер:

Не е достапен

Да
Достапност:

Достапно за нарачка (рок од 1 до 2 дена)
Тип на меморија:

DDR4
Број на физички јадра:

8 , 4
Chipset:

AMD B550
RAM DIMMs:

2
Капацитет:

128GB
USB Type-C ports:

1
Form Factor:

ATX
Dimensions:

305mm x 244mm
Note:

High Definition
Warranty:

36 months
Supported technologies:

Q-Flash Plus, Smart Backup, UEFI Bios, RGB Fusion, Easy Tune
HDMI connectors:

1x HDMI 2.1
Model:

Realtek
Processor bearing (Socket):

AMD AM4

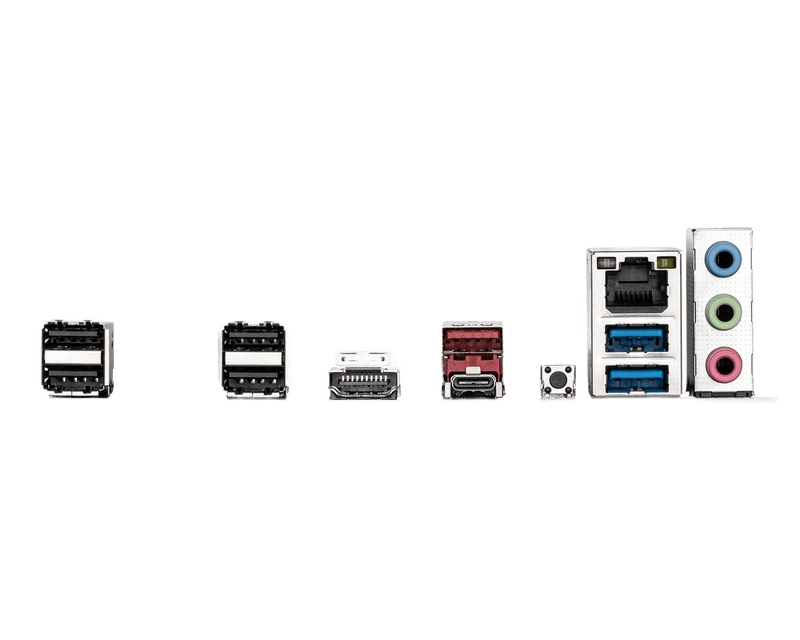

USB ports:

1x USB 10GBPS (3.2 GEN 2), 2x USB 5GBPS (3.2 GEN 1), 4x USB 2.0
Other traits:

Support for Unbuffered ECC memory, Extreme Memory Profile Support (XMP), Dual Channel (Dual-Channel) Memory mode, Support for non-ECC Udimm Memory
Audio:

1x Front Panel Audio
Wired network standards:

1000Base-T (Gigabit)
Other connections:

1 x Clear CMOS jumper, 1 x Trusted Platform Module (TPM), 2 x addressable LED strip headers, 4 x SATA 6Gb/s, 1 x CPU fan header, 2 x M.2 Socket 3, 1x CPU fan/water cooling pump header, 1 x CPU cooler LED strip/RGB LED strip header, 2 x RGB LED strip headers, 3 x system fan headers
USB:

2 x Support for 1 USB 2.0 port, 1 x Support for 1 USB 5Gbps port
USB-C ports:

1x USB 5Gbps (3.2 Gen 1)
Supported memory:

2.133MT/s, 2.933MT/s, 3.200MT/s, 2.400MT/s, 2.667MT/s
PCI Express x16 slot:

1x PCI Express 4.0 (X16 Mode), 4x PCI Express 3.0 (X1 Mode)
SATA ports:

SATA III 6GBPS
Raid:

Raid 0, Raid 1, Raid 10
Channel number:

8 (7.1)
Voltage connections:

1x 24-pin ATX Main Power Connector, 1 x 8-pin ATX 12V Power Connector
USB-C:

1 x Support for 1 USB 5Gbps port
Supported M.2 formats:

1x 2280 / 22110 (support for PCIe 4.0 x4/x2 mode), 1x 2280 / 22110 (support for PCIe 3.0 x4/x2 mode)

Начин на испорака

Бесплатна достава во градско подрачје на Скопје за нарачка со вредност поголема од 15000 денари
Подигнување од нашата продавница

Начин на плаќање

Плаќање при подигнување
Фактурно плаќање

Сподели:

Basic features - Processor socket (socket): AMD AM4 Chipset: AMD B550 Memory - Memory type: DDR4 Memory slots: 4 Supported memories: 2,133MT/s, 2,400MT/s, 2,667MT/s, 2,933MT/s, 3,200MT/s Maximum total memory: 128GB Other features: Dual-channel mode of operation memory, Support for Extreme Memory Profile (XMP), Support for non-ECC UDIMM memory, Support for Unbuffered ECC memory Slots - PCI Express x16 slot: 1x PCI Express 4.0 (x16 mode), 4x PCI Express 3.0 (x1 mode) Storage interface - SATA connectors (total): 4 SATA connectors: SATA III 6Gbps Number of M.2 slots: 2 Supported M.2 formats: 1x 2280 / 22110 (support for PCIe 3.0 x4/x2 mode),1x 2280 / 22110 (support for PCIe 4.0 x4/x2 mode) RAID: RAID 0,RAID 1,RAID 10 Network - Wired network (LAN): 1000Base-T (Gigabit) Model: Realtek Audio - Number of channels: 8 (7.1) Model: Note: High Definition Connections on the back panel - Number of HDMI ports: 1 HDMI ports: 1x HDMI 2.1 Total USB ports: 8 Total USB-C ports: 1 USB-A ports: 1x USB 10Gbps (3.2 Gen 2), 2x USB 5Gbps (3.2 Gen 1), 4x USB 2.0 USB-C ports: 1x USB 5Gbps (3.2 Gen 1) RJ-45 (LAN): 1 Audio: 3x 3.5mm Other connectors: 1x Q-Flash Plus button Internal connectors - Voltage connectors: 1 x 8-pin ATX 12V power connector, 1x 24-pin ATX main power connector USB-A: 1 x support for 1 USB 5Gbps port, 2 x support for 1 USB 2.0 port USB-C: 1 x support for 1 USB 5Gbps port Audio: 1x Front panel audio Others connectors: 1 x Clear CMOS jumper, 1 x CPU cooler LED strip/RGB LED strip header, 1 x CPU fan header, 1 x Trusted Platform Module (TPM), 1x CPU fan/water cooling pump header, 2 x addressable LED strip headers, 2 x M.2 Socket 3, 2 x RGB LED strip headers, 3 x system fan headers, 4 x SATA 6Gb/s Other features - Supported technologies: Easy Tune, Q-Flash, Q-Flash Plus, RGB Fusion, Smart Backup, UEFI Bios Physical characteristics - Format: ATX Dimensions: 305mm x 244mm Claim period - Claim period: 36 months
