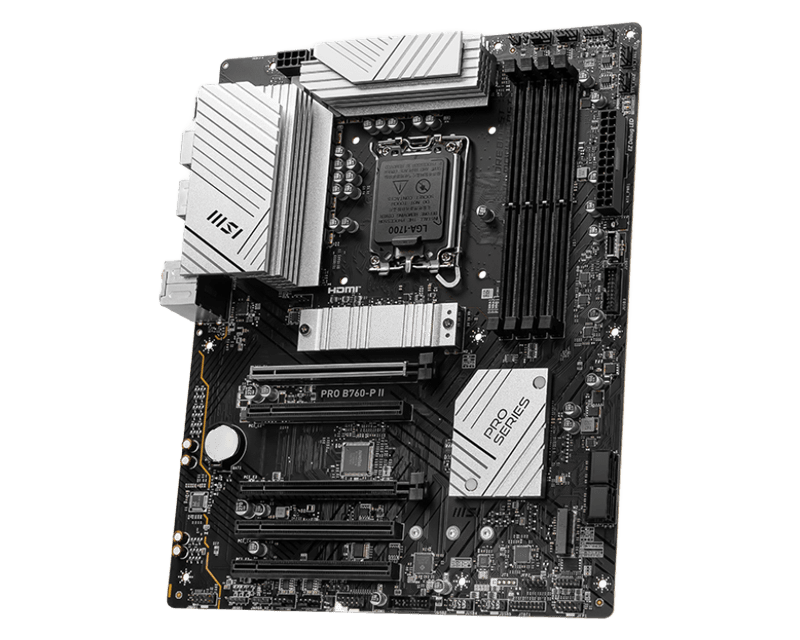

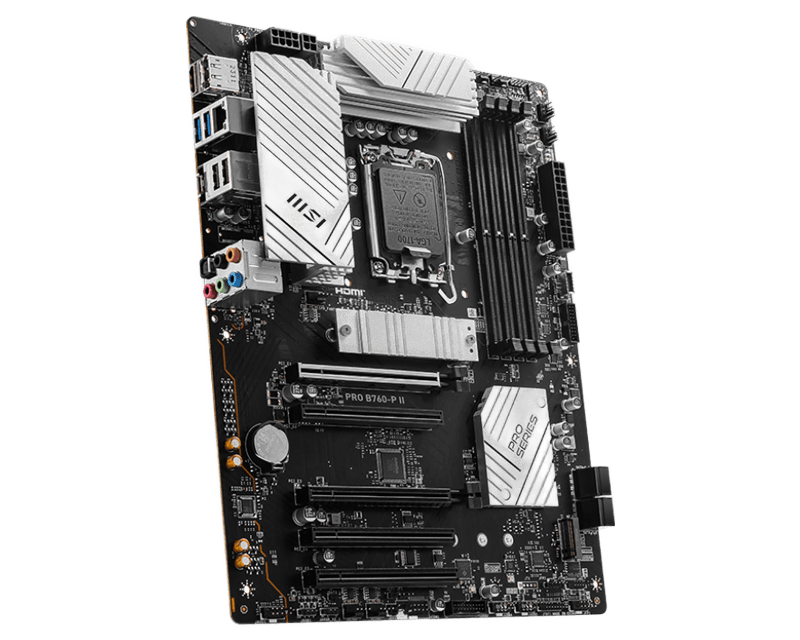

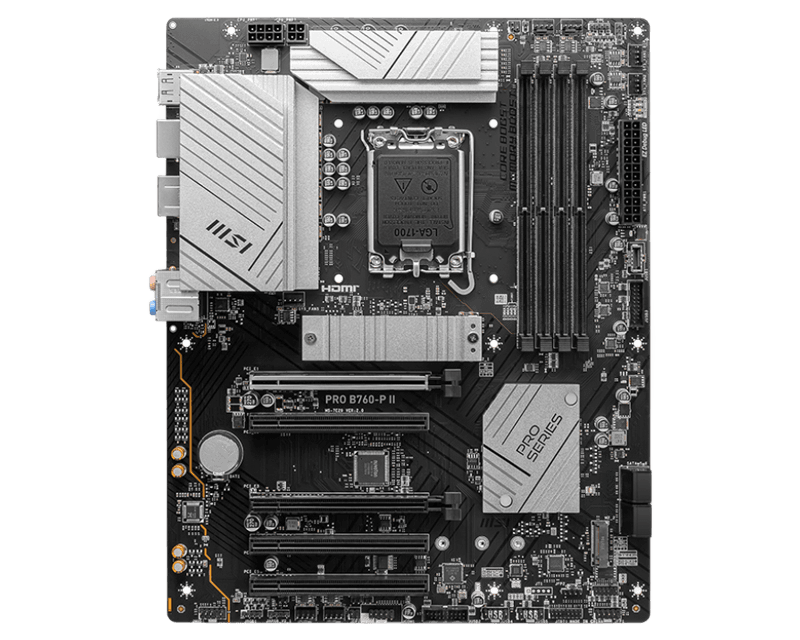

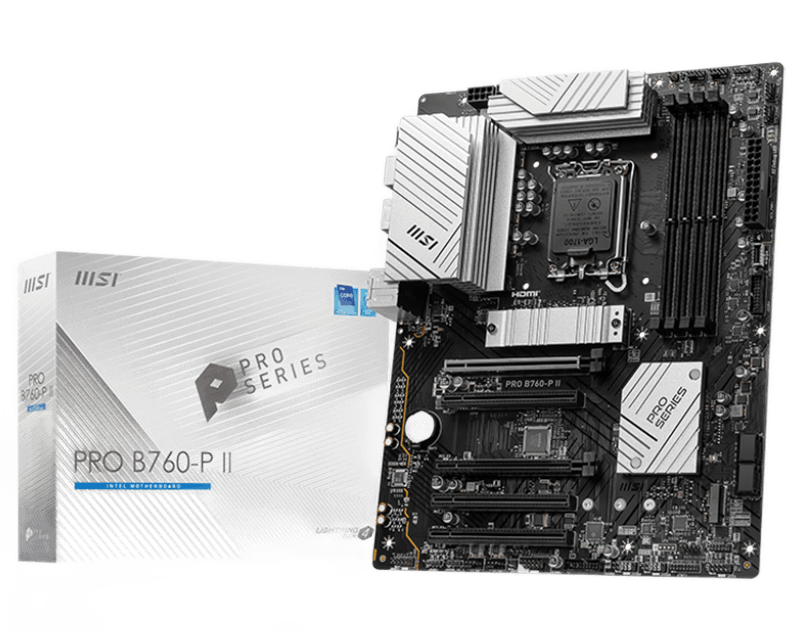

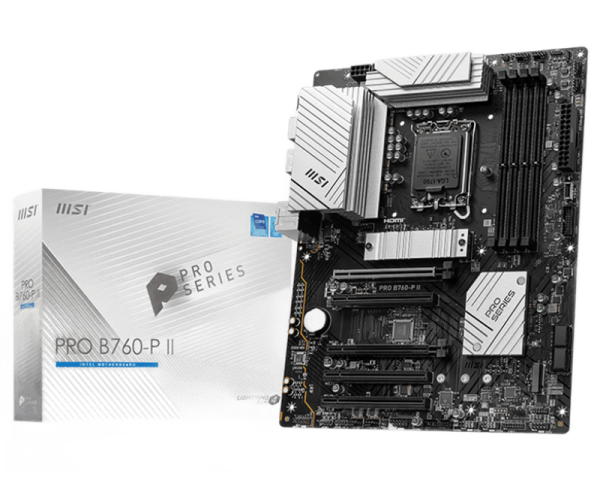

MB MSI PRO B760-P II

Варијанта:

− +

8 690 ден.

0 ден.

Не е достапен

Бренд:

MSI
Артикл:

INS-38-4454-E
Достапен за порачка:

Не е достапен

Да
Број на физички јадра:

4
Chipset:

Intel B760
RAM type:

DDR5
RAM DIMMs:

2
m.2:

5
Капацитет:

128GB
USB Type-C ports:

1
Модел:

Realtek ALC897 Codec
Подршка на матични плочи:

ATX
Dimensions:

304.8mm x 243.84mm
Note:

To use certain internal connectors, additional brackets or connectors on the housing are required
Warranty:

36 months
Supported technologies:

Audio Boost, Memory Boost
Package:

Screws, SATA cable, I / O shield, EZ M.2 CLIP
Graphics:

Using the processor graphics
Processor bearing (Socket):

Intel 1700
USB ports:

2x USB 2.0, 2x USB 5Gbps (3.2 Gen 1)
Other traits:

Support for Extreme Memory Profile (XMP), Support for non-ECC Udimm Memory, Dual Channel
Audio:

1x Front Panel Audio
Wired network standards:

2.5GBASE-T (Gigabit)
Other connections:

4 x EZ Debug Led, 1 x com Port Header, 1x Front Panel (JFP), 2x Chassis Intrusion (JCI), 2x Addressable V2 RGB LED CONNECTOR (JARGB_V2), 1x TPM PIN Header, 1 x CPU Fan Header, 1x TBT Connector (supports RTD3), 5x System Fan, 2x RGB LED Connector (JRGB)
USB:

4 x Support for 1 USB 5Gbps port
USB-C ports:

1x USB 10GBPS (3.2 GEN 2)
PCI Express x16 slot:

1x PCI Express 4.0 (X16 Mode), 1x PCI Express 4.0 (X4 Mode), 3x PCI Express 3.0 (X1 Mode)
SATA ports:

SATA III 6GBPS
Raid:

Raid 0, Raid 1, Raid 5, Raid 10
Channel number:

7.1
Voltage connections:

2x 8 PIN 12V Power Connector, 1 x 24 PIN ATX Power Connector
USB-C:

1 x Support for 1 USB 5Gbps port

Начин на испорака

Бесплатна достава во градско подрачје на Скопје за нарачка со вредност поголема од 10000 денари
Подигнување од нашата продавница

Начин на плаќање

Плаќање при подигнување
Фактурно плаќање

Сподели:

Basic characteristics - Socket: Intel 1700 Chipset: Intel B760 Graphics: Using graphics: DDR5 Memory slots: 4 Supported memory: 4.800mt / s, 5.000mt / s, 5,200mt / s, 5.400mt / s, 5.600mt / s, 5.800mt / s (O.c.), 6,000mt / s (o.c.), 6rd), 6.400mt / s (o.c.), 6.800mt / s (o.c.), 7.000mt / s + (o.c.) Maximum total memory: 128GB Other features: Dual Channel, Extreme Memory Support Profile (XMP), Non-ECC Support - PCI Express X16 Slot: 1x Express 4.0 (x4 Mode), 3x PCI Express 3.0 (X1 Mode) PCI Slot: 5 Storage Interface - SATA Connections (Total): SATA III 6GBPS Number M.2 Slots: 2 RAID: RAID 0, RAID 1, RAID 10, RAID 5 Network - Wired RTL8125BG Audio: Realtek Alc897 Codec Note: High Definition, S / PDIF Output Connections in the back panel - Number of DisplayPort ports: 1 Number HDMI connectors: 1 Total USB ports: 5 USB ports: 2x USB 2.0,2x USB-C ports: 1x USB 10Gbps (3.2 Gen 2) RJ-45 (LAN): 1 Audio: 1x 3.5mm Interior connectors - Voltage connections: 1 x 24 PIN ATX Power Connector, 2x 8 PIN 12V Power Connector USB: 1 x Support for 1 USB 5Gbps Port Audio: 1x Front Panel Header, 1 x CPO Fan Header, 1x Chassis Intrusion (JCI), 1x Pump Fan, 1x TBT Connector, 1x TPM Pin Header, 2x Addressable V2 RGB LED Connector (JARGB_V2), 2x Front Panel (JFP), 2x RGB LED CONNECTOR (JRGB), 4 X EZ Debug LED, 5x System Fan Note: For use of certain internal connectors, additional brackets or connections on the case are required: Audio Boost, Memory Boost Dimensions: 304.8mm X 243.84mm Packaging: EZ M.2 clip, I / O shield, SATA cable, screws advertising period - Complamination period: 36 months
