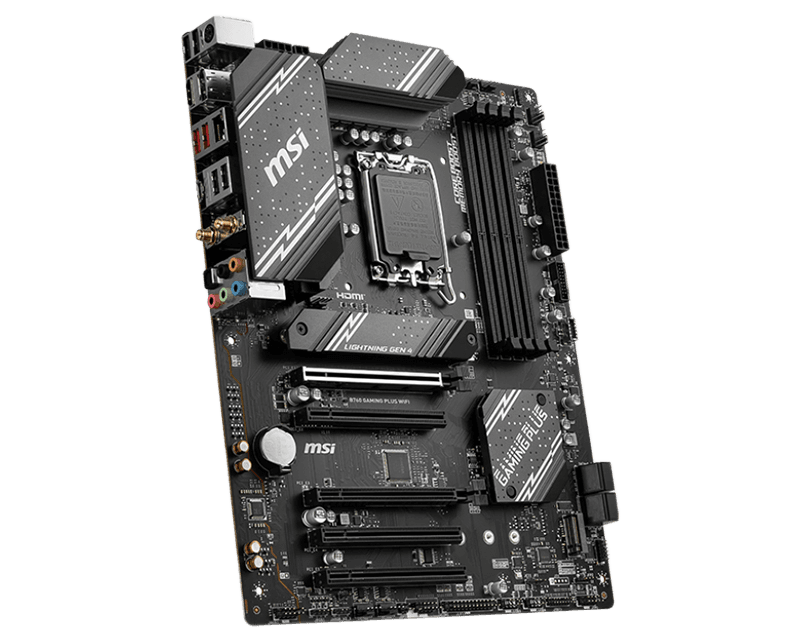

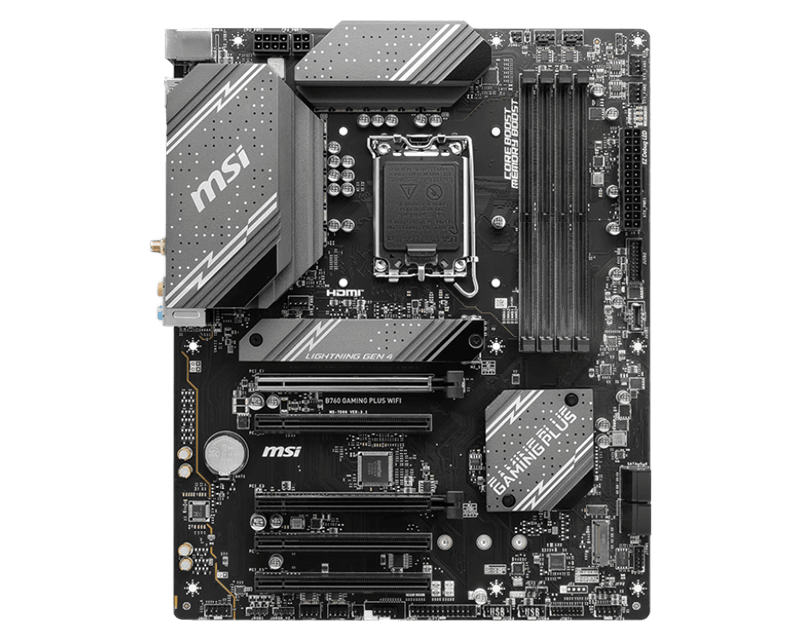

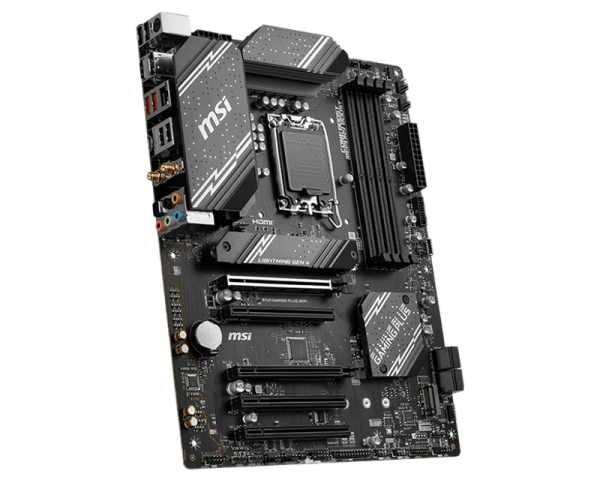

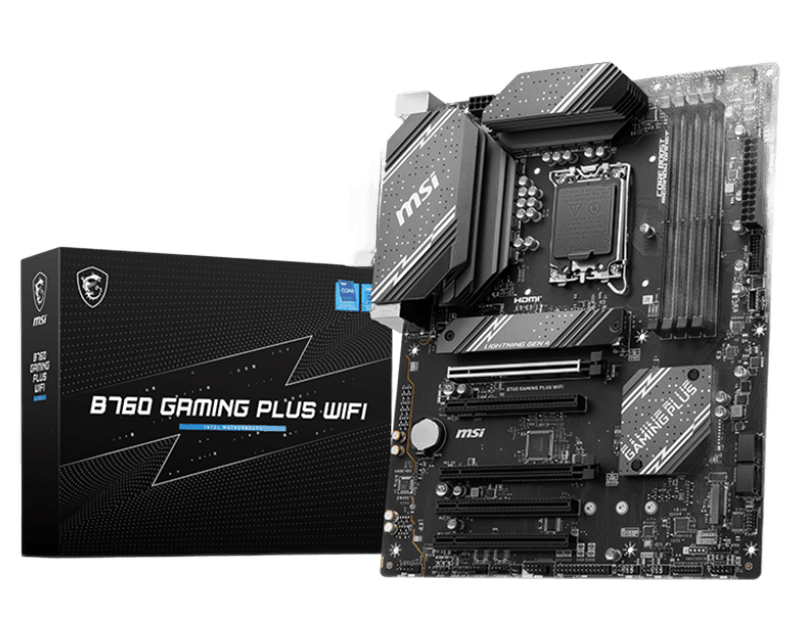

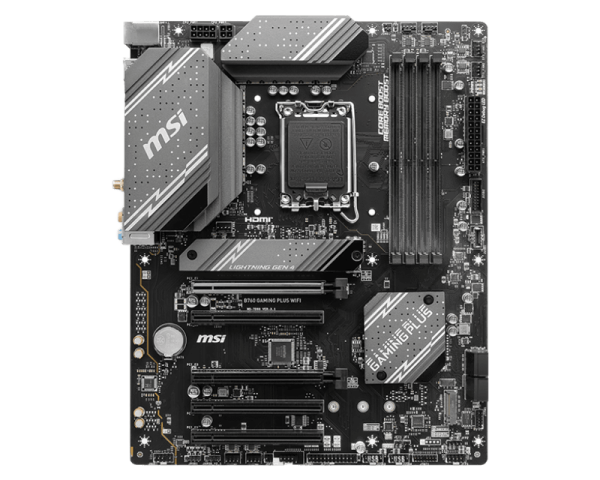

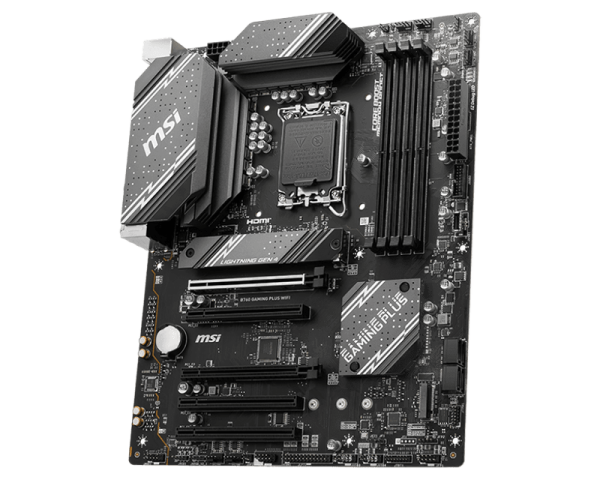

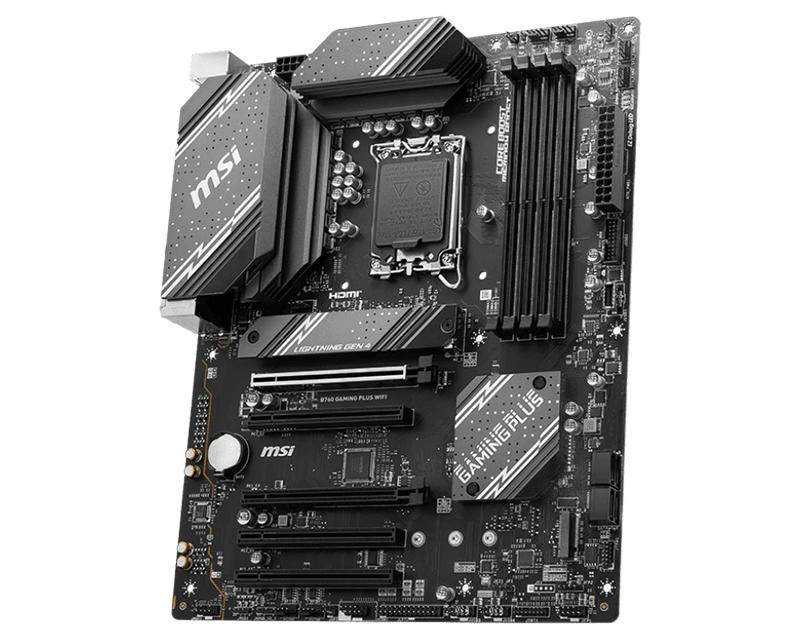

MB MSI B760 Gaming Plus WiFi

Варијанта:

− +

9 790 ден.

0 ден.

Не е достапен

Бренд:

MSI
Артикл:

INS-38-5812-E
Достапен за порачка:

Не е достапен

Да
Број на физички јадра:

4
Chipset:

Intel B760
RAM type:

DDR5
RAM DIMMs:

2
USB 3.x ports:

7
Капацитет:

256GB
USB Type-C ports:

1
Модел:

Realtek ALC897 Codec
Подршка на матични плочи:

ATX
Dimensions:

243.84mm x 304.8mm
Note:

To use certain internal connectors, additional brackets or connectors on the housing are required
Warranty:

36 months
Gaming:

Yeah
Processor bearing (Socket):

Intel 1700
USB ports:

2x USB 10GBPS (3.2 GEN 2), 4x USB 2.0
Other traits:

Support for Extreme Memory Profile (XMP), Support for non-ECC Udimm Memory, Dual Channel
Audio:

1x Front Panel Audio
Standards:

Wi-Fi 6 (802.11ax)
Wired network standards:

2.5GBASE-T (Gigabit)
Bluetooth version:

5.3
Other connections:

1x com Port Header, 1x Pump Fan, 1x Chassis Intrusion (JCI), 2x Addressable (JARGB_V2), 1x TPM Pin Header, 1 x 4-pin CPU Fan Conector, 1x TBT Connector (supports RTD3), 5x System Fan Connector, 1x Print Port Header, 2x Front Panel Connector, 1 x RGB LED Header
USB:

2 x Support for 1 USB 5Gbps port
USB-C ports:

1x USB 10GBPS (3.2 GEN 2)
Supported memory:

6,000mt / s (O.C.), 5.800mt / s (O.C.), 6.800mt / s (O.C.), 6.400mt / s (O.C.), 5,600 mt / s, 5.400mt / s, 5.200mt / S, 5.000mt / s, 4.800mt / s
PCI Express x16 slot:

1x PCI Express 4.0 (X16 Mode), 1x PCI Express 4.0 (X4 Mode), 3x PCI Express 3.0
SATA ports:

SATA III 6GBPS
Raid:

Raid 0, Raid 1, Raid 5, Raid 10
Channel number:

8 (7.1)
PS / 2:

1 (keyboard or mouse)
Voltage connections:

1 x 24 PIN ATX Power Connector, 2 x 8-pin EATX 8 V
USB-C:

1 x Support for 1 USB 5Gbps port

Начин на испорака

Бесплатна достава во градско подрачје на Скопје за нарачка со вредност поголема од 10000 денари
Подигнување од нашата продавница

Начин на плаќање

Плаќање при подигнување
Фактурно плаќање

Сподели:

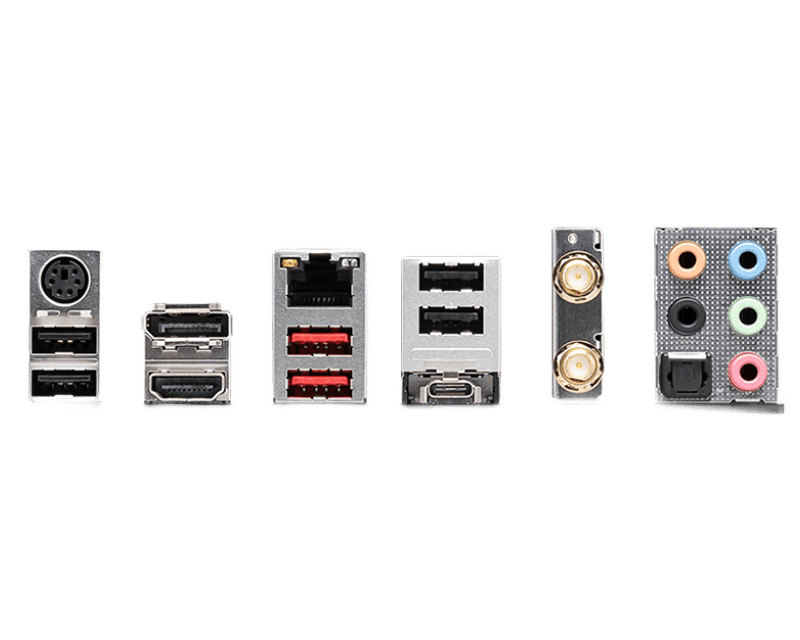

Basic characteristics - Socket: Intel 1700 Chipset: Intel B760 Memory: DDR5 Memory slots: 4 Supported memory: 4.800mt / s, 5.000mt / s, 5,200mt / s, 5.400mt / s, 5.600mt / s, 5.800mt / s (o.c.), 6,000mt / s (O.c.), 6-200mt / s (o.c.), 6.600mt / s (o.c.), 6.800mt / s (o.c.) Maximum total memory: 256GB Other features: Dual Channel, Extreme Memory Profile (XMP), Non-ECC support Udimm Memory Slots - PCI Express X16 Slot: 1x PCI Express 4.0 (X16 Mode), 1x PCI Express 3.0 Storage Interface: SATA III 6GBPS Number M.2, RAID 1, RAID 10, RAID 5 Network - Wired Network (LAN): 2.5GBase-T (Gigabit) Model: Realtek RTL8125BG Wi-Fi: Wi-Fi 6 (802.11ax) Bluetooth: Da Bluetooth Alc897 Codec Note: High Definition, S / PDIF Output Connections in Last Panel - Number of DisplayPort Connections: 1 Number of HDMI connectors: 1 PS / 2: 1 (keyboard or mouse) Total USB ports: 1 USB ports: 2x USB 10GBPS (3.0 USB-C Connections: 1x USB 10Gbps (3.2 Gen 2) RJ-45 (LAN): 1 Audio: 1x S / PDIF Optical, 5x 3.5mm Other connections: 2x SMA Antenna Connectors (2T2R) Internal connections - Voltage connections: 1 x 24 8-pin EATX 8 V USB: 2 USB 5GBPS port USB-C: 1 x Support for 1 USB 5GBPS PANEL Audio other ports: 1 x 4-pin CPU Fan Conector, 1x Chassis Intrusion (JCI), 1x com Port Header, 1x Pump Fan, 1x TBT Connector (supports RTD3), 1x TPM Pin Header, 2x Addressable V2 RGB LED CONNECTOR (Jargb_v2), 2x front panel connector, 5x System Fan Connector Note: For use of certain internal connectors, additional bracket are required on the physical characteristics - Format: ATX Dimensions: 243.84mm x 304.8mm Advertising period - Commercial period: 36 months
