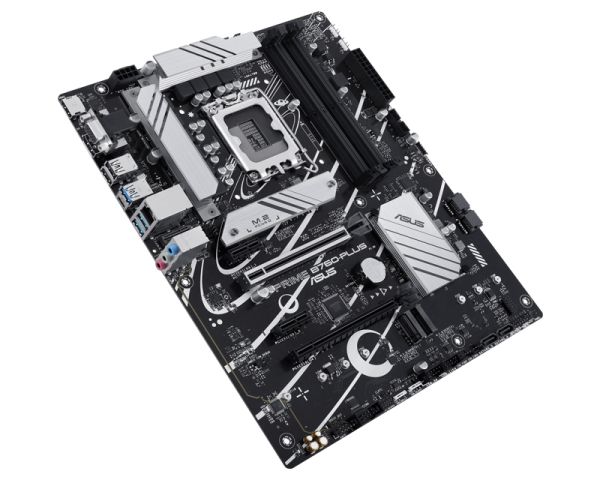

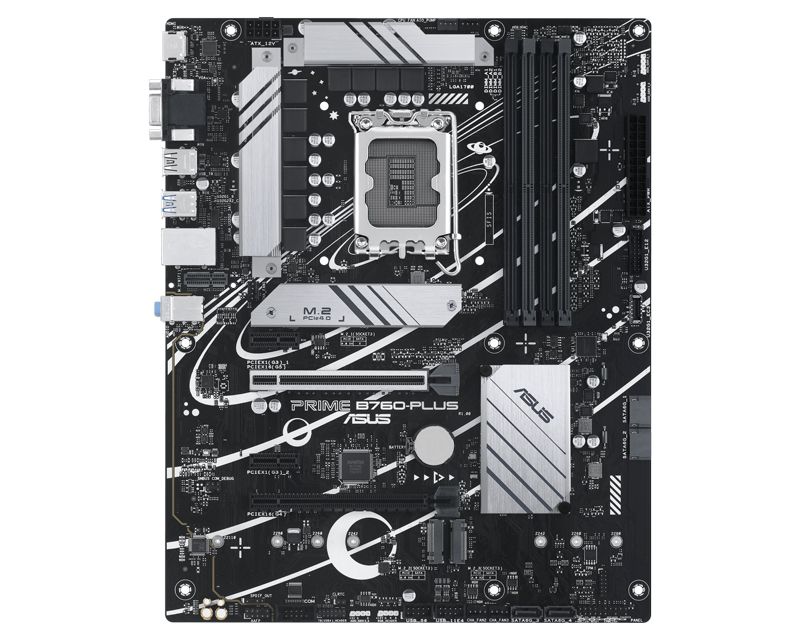

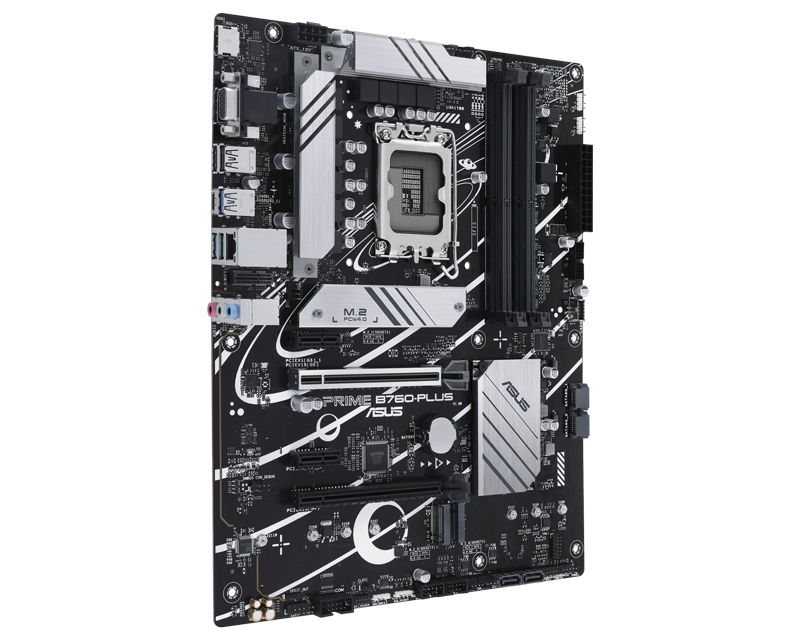

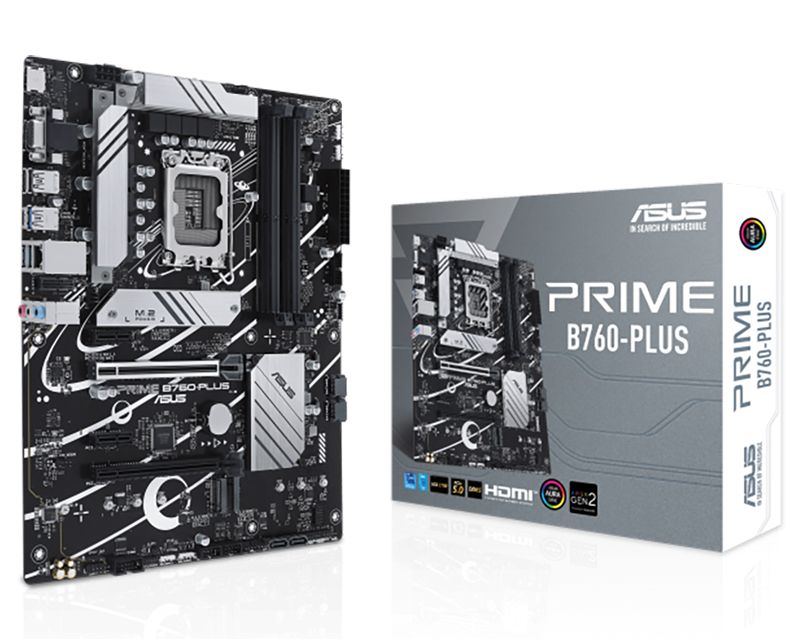

MB Asus PRIME B760-PLUS

Варијанта:

− +

8 390 ден.

0 ден.

Не е достапен

Бренд:

ASUS
Шифра:

INS-38-3282-E
Достапност:

Достапно за нарачка (рок од 1 до 2 дена)
Број на физички јадра:

6 , 4
Chipset:

Intel B760
RAM type:

DDR5
USB Type-C ports:

3 , 1
Form Factor:

ATX
Dimensions:

305mm x 244mm
Note:

To use certain internal connectors, additional brackets or connectors on the housing are required
Warranty:

36 months
Condition:

Unused
Model:

Realtek
Processor bearing (Socket):

Intel 1700
USB ports:

2x USB 2.0, 2x USB 10Gbps (3.2 Gen 2), 1x USB 5Gbps (3.2 Gen 1)
Other traits:

Support for Unbuffered ECC memory, Support for Extreme Memory Profile (XMP), Dual-channel memory mode, Support for non-ECC UDIMM memory, OptiMem II
Audio:

1x Front Panel Audio, 1x S / PDIF output
Wired network standards:

2.5GBASE-T (Gigabit)
Other connections:

4 x SATA 6Gb/s, 1 x 4-pin AIO Pump header, 3 x 4-pin Chassis Fan headers, 1 x 20-3 pin System Panel header with Chassis intrude function, 1 x 4-pin CPU Fan header, 1 x 14-1 pin SPI TPM header, 1 x Clear CMOS header, 3 x Addressable Gen 2 headers, 1 x COM Port header, 1 x AURA RGB header, 3 x M.2 slot (Key M), 1 x Thunderbolt™ (USB4®) header
PCI Express X1 Slot:

2x PCI Express 3.0
USB:

2 x Support for 4 USB 2.0 ports, 1 x Support for 2 USB 5GBPS ports
USB-C ports:

1x USB 20GBPS (3.2 GEN 2x2)
Maximum total memory:

192GB
PCI Express x16 slot:

1x PCI Express 5.0 (x16 mode), 1x PCI Express 4.0 (x4 mode)
SATA ports:

SATA III 6GBPS
Raid:

Raid 0, Raid 1, Raid 5, Raid 10
Channel number:

8 (7.1)
Voltage connections:

1 x 24 PIN ATX Power Connector, 1 x 8-pin ATX 12V Power Connector
USB-C:

1 x Support for 1 USB 5Gbps port

Начин на испорака

Бесплатна достава во градско подрачје на Скопје за нарачка со вредност поголема од 15000 денари
Подигнување од нашата продавница

Начин на плаќање

Плаќање при подигнување
Фактурно плаќање

Сподели:

Basic characteristics - Processoring tray (Socket): Intel 1700 Chipset: Intel B760 Memory: DDR5 Memory slots: 4 Supported memory: 4.800MHz, 5.400MHz, 5.600MHz, 5.800MHz (o.c.), 6,200MHz (O.c.), 6.400mhz (o.c.), 6.800mhz (o.c.), 7.000mhz (o.c.) Maximum total memory: 128GB Other features: Dual Channel, Extreme Memory Profile (XMP), Non-ECC support Udimm Memory Slots - PCI Express X16 Slot: 1x PCI Express 3.0 (X4 Mode), 1x PCI Express 5.0 (X16 Mode) PCI Express 4.0 Storage Interface - SATA Connections (Total): SATA III 6GBPS Number M.2, RAID 1, RAID 10, RAID 5 Network - Wired network (LAN): 1000Base-T (gigabit) Wi-Fi: Yes Wi-Fi Standard: Wi-Fi 6e (802.11ax) Bluetooth: 8.1) Model: Realtek Alc897 Codec Note: High Definition Connectors: 1 DisplayPort Connections: 1x DisplayPort 1.4 Number of HDMI connectors: 1 HDMI ports: 1x HDMI 2.1 Total USB connectors: 1 USB ports: 4x USB USB 2.0 USB-C Connections: 1x USB 20GBPS (3.2 GEN 2x2) RJ-45 (LAN): 1 Audio: 1x S / PDIF Optical, 2x 3.5mm Other connections: 1x Intel Wi - Fi 6e Internal connectors - Voltage connections: 1x Power Connector (CPU_PWR) USB 10GBPS port, 2 x 1 USB 5GBPS port audio: 1x front panel audio other ports: 1x Chassis Intrusion (JCI), 1x CPU Fan, 1x Front Pump Fan, 1x Tuning Header, 1x Tuning Controller Connector (JDash), 2x Addressable V2 RGB LED Connector, 2x Front Panel (JFP), 2x RGB LED CONNECTOR (JRGB), 5x System Fan Connector, TBT connector Note: For use of certain internal connectors, additional technologies are required - Supported technologies: Mu-Positions: ATX Dimensions: 304.8mm x 243.84mm Condition: Unused Commercial Period - Commercial Period: 36 months
