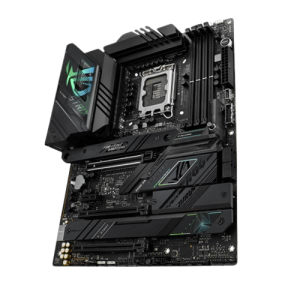

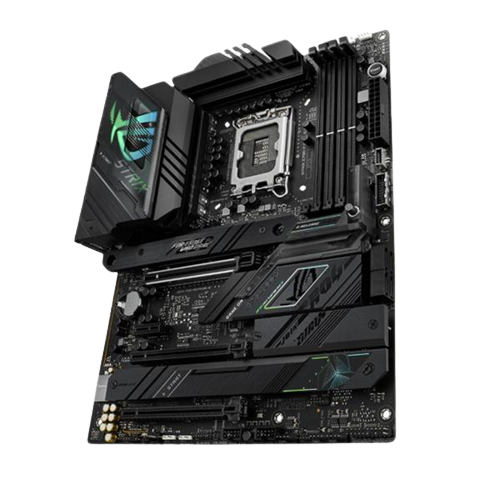

ASUS ROG STRIX Z790-F GAMING WIFI

ASUS ROG STRIX Z790-F GAMING WIFI
 CPU Intel Socket LGA1700 for 13th Gen Intel Core Processors & 12th Gen Intel Core
 Pentium Gold and Celeron Processors
 Chipset: Intel Z790 Chipset
 Memory: 4 x DIMM
 Max. 128GB
 DDR5
 7800+(OC)/7600(OC)/7400(OC)/ 7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC
 Un-buffered Memory
 Dual Channel Memory Architecture
 Graphics: 1 x DisplayPort
 1 x HDMI port
 Expansion Slots: Intel 13th & 12th Gen Processors
 1 x PCIe 5.0 x16 slot
 Intel Z790 Chipset
 2 x PCIe 4.0 x16 slots (support x4 mode)
 1 x PCIe 3.0 x1 slot
 Storage: Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports
 Intel 13th & 12th Gen Processors: M.2_1 slot (Key M)
 type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
 Intel Z790 Chipset: M.2_2 slot (Key M)
 type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
 M.2_3 slot (Key M)
 type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
 M.2_4 slot (Key M)
 type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) 4 x SATA 6Gb/s ports
 Ethernet: 1 x Intel 2.5Gb Ethernet
 Wireless & Bluetooth: Wi-Fi 6E
 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
 Supports 2.4/5/6GHz frequency band
 Bluetooth v5.3
 USB: Rear USB (Total 12 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
 3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C)
 4 x USB 3.2 Gen 1 ports (4 x Type-A)
 4 x USB 2.0 ports (4 x Type-A)
 Front USB (Total 7 ports): 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C with up to 30W PD Fast-charge)
 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
 2 x USB 2.0 headers supports 4 additional USB 2.0 ports
 Back Panel I/O Ports: 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
 3 x USB 3.2 Gen 2 ports (2 x Type-A
 1 x USB Type-C)
 4 x USB 3.2 Gen 1 ports (4 x Type-A)
 2 x USB 2.0 ports (2 x Type-A)
 1 x DisplayPort
 1 x HDMI port
 1 x Wi-Fi Module
 1 x Intel 2.5Gb Ethernet port
 5 x Gold-plated audio jacks
 1 x Optical S/PDIF out port
 1 x BIOS FlashBack button
 1 x Clear CMOS button
 90MB1CP0-M0EAY0
