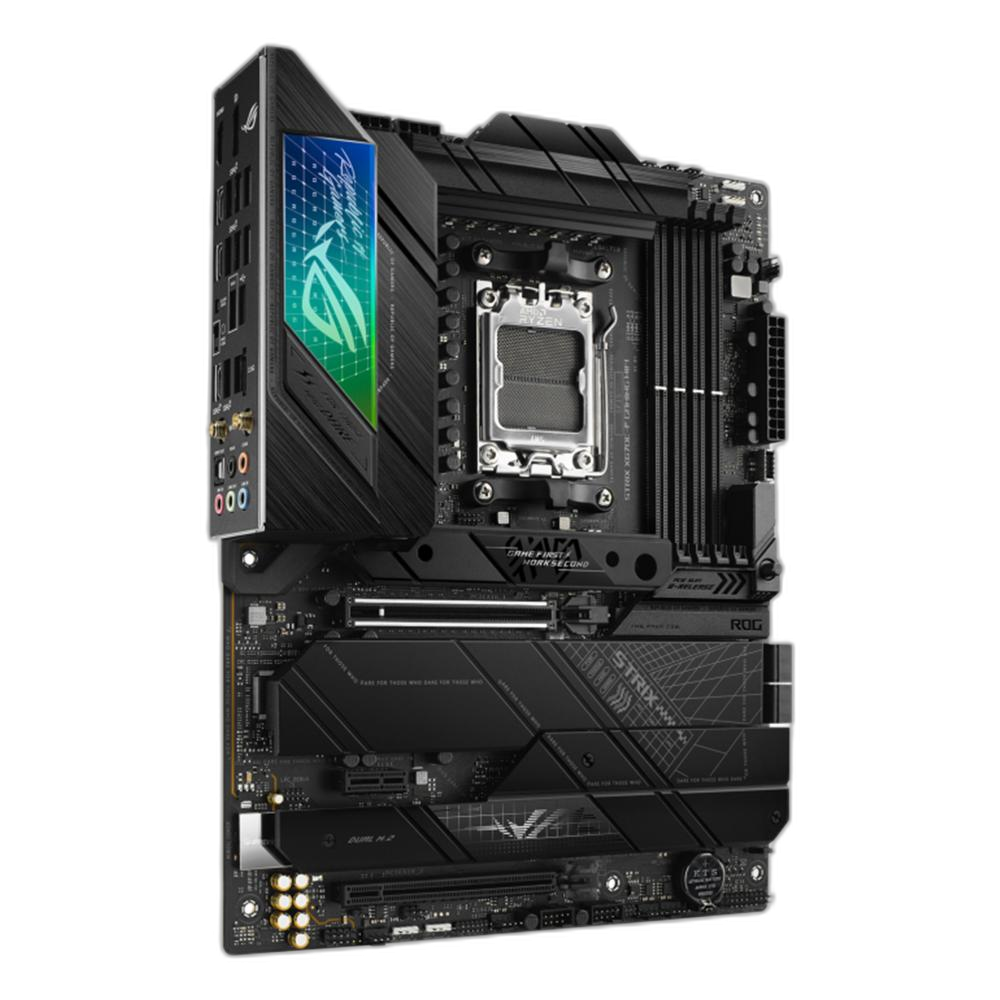

ASUS ROG STRIX X670E-F GAMING WIFI

ASUS ROG STRIX X670E-F GAMING WIFI
 CPU AMD Socket AM5 for AMD Ryzen 7000 Series Desktop Processors
 Chipset: AMD X670
 Memory: 4 x DIMM
 Max. 128GB
 DDR5 6400+(OC)/6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC and Non-ECC
 Un-buffered Memory
 Dual Channel Memory Architecture
 On-Die ECC function
 Graphics: 1 x DisplayPort
 1 x HDMI port
 Expansion Slots: AMD Ryzen 7000 Series Desktop Processors
 1 x PCIe 5.0 x16 slots (supports x16 mode)
 AMD X670 Chipset
 1 x PCIe 4.0 x16 slot (supports x4 mode)
 1 x PCIe 3.0 x1 slot
 Storage: Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports
 AMD Ryzen 7000 Series Desktop Processors: M.2_1 slot (Key M)
 type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
 M.2_2 slot (Key M)
 type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
 AMD X670 Chipset: M.2_3 slot (Key M)
 type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
 M.2_4 slot (Key M)
 type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
 4 x SATA 6Gb/s ports
 AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10
 Ethernet: 1 x Intel 2.5Gb Ethernet
 ASUS LANGuard
 Wireless & Bluetooth: Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
 Supports 2.4/5/6GHz frequency band
 Bluetooth v5.2
 USB: Rear USB (Total 12 ports)
 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
 9 x USB 3.2 Gen 2 ports (7 x Type-A + 2 x USB Type-C)
 2 x USB 2.0 ports
 Front USB (Total 7 ports): 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C)
 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
 2 x USB 2.0 headers support additional 4 USB 2.0 ports
 Audio: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
 Back Panel I/O Ports: 1 x USB 3.2 Gen 2x2 port (1 x Type-C)
 9 x USB 3.2 Gen 2 ports (7 x Type-A
 2 xUSB Type-C)
 2 x USB 2.0 ports
 1 x DisplayPort
 1 x HDMI port
 1 x Wi-Fi Module
 1 x Intel 2.5Gb Ethernet port
 5 x Gold-plated audio jacks
 1 x Optical S/PDIF out port
 1 x BIOS FlashBack button
 1 x Clear CMOS button
