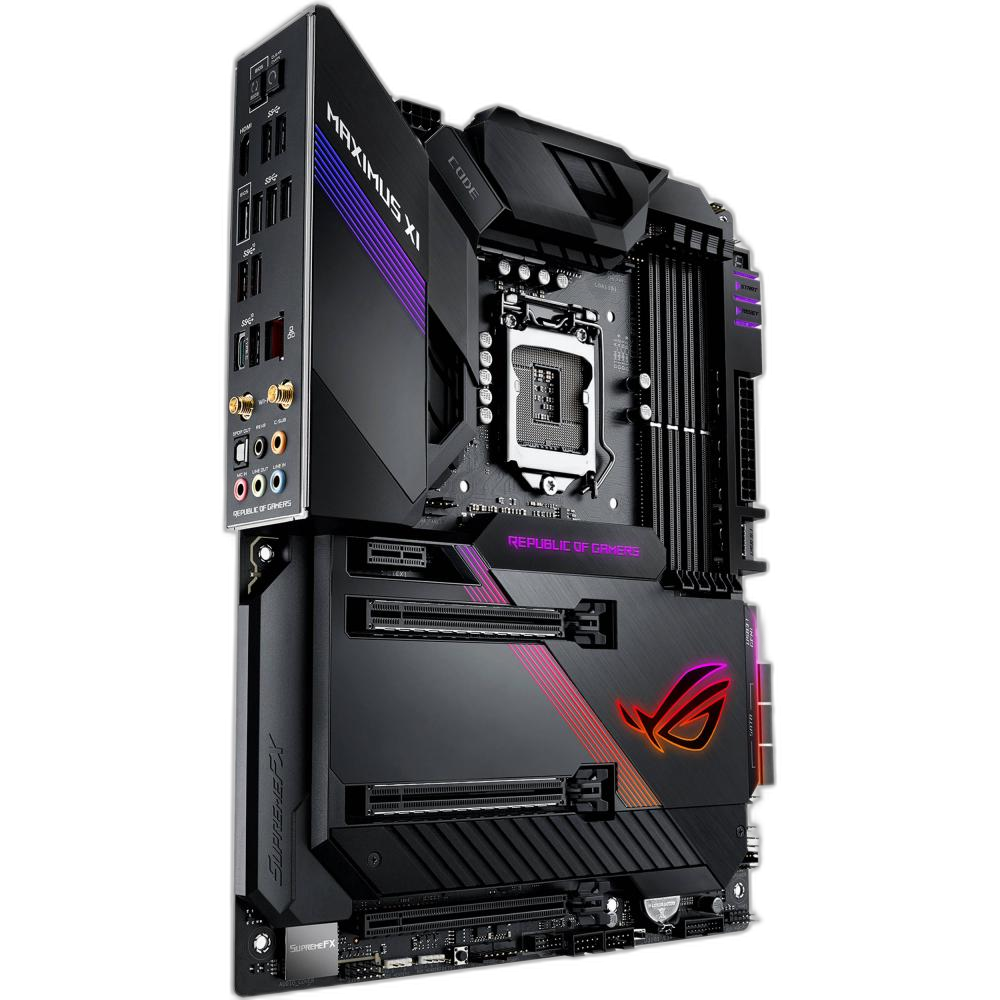

ASUS ROG MAXIMUS XI CODE

ASUS ROG MAXIMUS XI CODE
 CPU Intel Socket 1151 9th / 8th Gen Intel Core
 Pentium Gold and Celeron Processors
 Supports Intel 14 nm CPU
 Supports Intel Turbo Boost Technology 2.0
 * The Intel Turbo Boost Technology 2.0 support depends on the CPU types
 Chipset: Build in Intel Z390
 Memory: 4 x DIMM
 Max. 64GB
 DDR4 4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/ 3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133 MHz Non-ECC
 Un-buffered Memory Dual Channel Memory Architecture
 Supports Intel Extreme Memory Profile (XMP)
 * Hyper DIMM support is subject to the physical characteristics of individual CPUs
 Graphic: Integrated Graphics Processor- Intel UHD Graphics support
 VGA output support : HDMI port
 Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 30 Hz
 Multi-GPU Support
 Supports NVIDIA 2-Way SLI Technology
 Supports AMD 3-Way CrossFireX Technology
 Expansion Slots: Socket 1151 for 9th / 8th Gen Intel Core
 Pentium Gold and Celeron processors
 2 x PCIe 3.0 x16 (x16
 x8/x8
 or x8/x4+x4)
 Intel Z390 Chipset: 1 x PCIe 3.0 x16 (max at x4 mode) *
 1 x PCIe 3.0 x16
 Storage: Socket 1151 for 9th / 8th Gen Intel Core
 Pentium Gold and Celeron processors : 1 x M.2 Socket 3
 with M key
 type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*2
 1 x M.2 Socket 3
 with M key
 type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
 6 x SATA 6Gb/s port(s)
 Intel Optane Memory Ready
 LAN: Intel I219V
 Anti-surge LANGuard
 ROG GameFirst V Technology
 Wireless Data Network
 Intel Wireless-AC 9560
 Wi-Fi 802.11 b/g/n/ac
 Supports dual band frequency 2.4/5 GHz
 Supports channel bandwidth: HT20/HT40/HT80/HT160
 Bluetooth: Bluetooth 5.0
 Audio: ROG SupremeFX 8-Channel High Definition Audio CODEC S1220
 Impedance sense for front and rear headphone outputs
 Supports : Jack-detection
 Multi-streaming
 Front Panel Jack-retasking
 High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
 SupremeFX Shielding Technology
 ESS ES9023P
 Supports up to 32-Bit/192kHz playback *3
 Audio Feature : Optical S/PDIF out port(s) at back panel
 USB Ports: Intel Z390 Chipset : 1 x USB 3.1 Gen 2 front panel connector port(s)
 Intel Z390 Chipset : 4 x USB 3.1 Gen 2 port(s)
 Intel Z390 Chipset : 8 x USB 3.1 Gen 1 port(s)
 Intel Z390 Chipset : 4 x USB 2.0 port(s)
 ASMedia USB 3.1 Gen 1 controller : 2 x USB 3.1 Gen 1 port(s)
 Back I/O Ports: 1 x HDMI
 4 x USB 3.1 Gen 2
 6 x USB 3.1 Gen 1
 1 x Optical S/PDIF out
 1 x Clear CMOS button(s)
 1 x USB BIOS Flashback Button(s)
 1 x ASUS Wi-Fi Module
 5 x Gold-plated audio jacks
 Anti-surge LAN (RJ45) port
