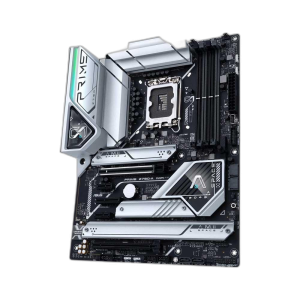

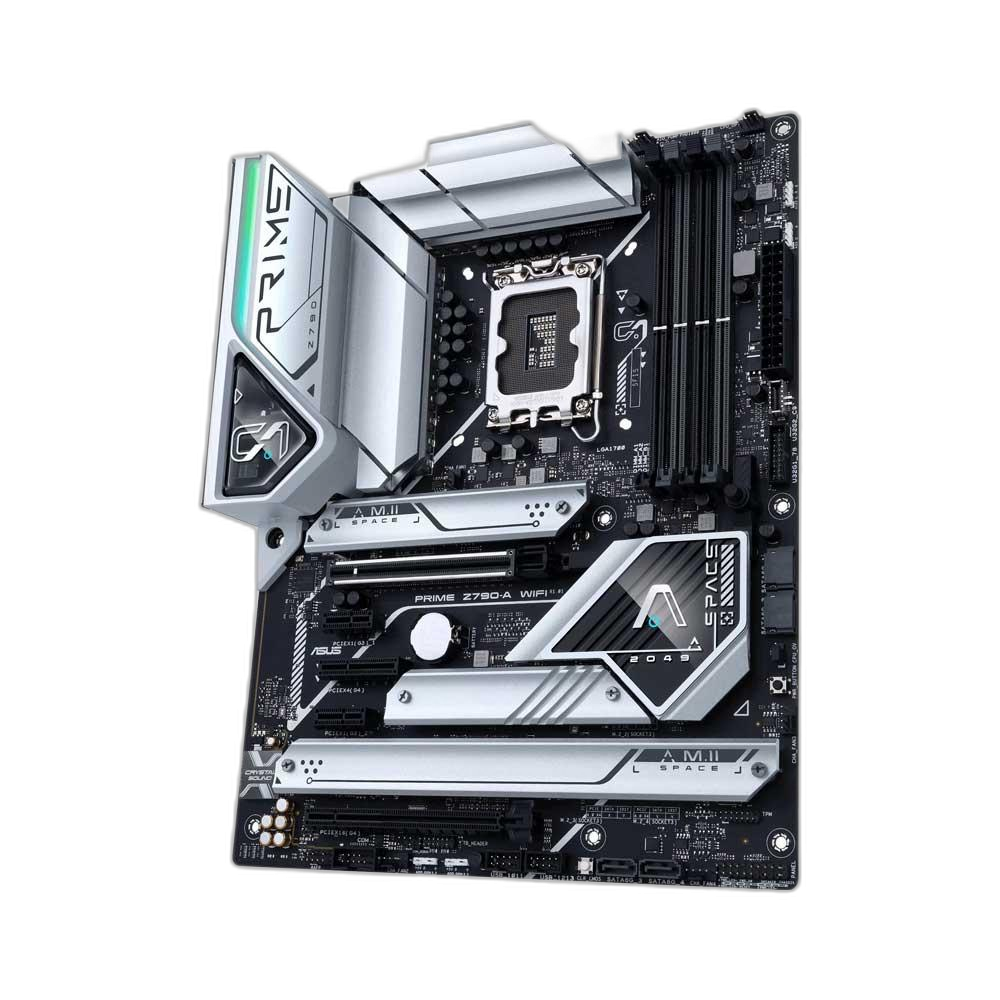

ASUS PRIME Z790-A WIFI

ASUS PRIME Z790-A WIFI
 Intel Socket LGA1700 for 13th Gen Intel Core Processors & 12th Gen Intel Core
 Pentium Gold and Celeron Processors
 Intel Z790 Chipset
 Memory: 4 x DIMM
 Max. 128GB
 DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800
 Dual Channel Memory Architecture
 Supports Intel Extreme Memory Profile (XMP)
 Graphics: 1 x DisplayPort
 1 x HDMI port
 * Graphics specifications may vary between CPU types
 Expansion Slots: Intel 13th & 12th Gen Processors: 1 x PCIe 5.0 x16 slot
 Intel Z790 Chipset: 1 x PCIe 4.0 x16 slot (supports x4 mode)
 1 x PCIe 4.0 x4 slot
 2 x PCIe 3.0 x1 slots
 Storage: Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports
 Intel 13th & 12th Gen Processors: M.2_1 slot (Key M)
 type 2242/2260/2280/22110 (support PCIe 4.0 x4 mode)
 Intel Z790 Chipset: M.2_2 slot (Key M)
 type 2242/2260/2280 (supports PCIe 4.0 x4)
 M.2_3 slot (Key M)
 type 2242/2260/2280/22110 (supports PCIe 4.0 x4)
 M.2_4 slot (Key M)
 type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
 4 x SATA 6Gb/s ports
 Ethernet: 1 x Intel 2.5Gb Ethernet
 ASUS LANGuard
 Wireless & Bluetooth: Wi-Fi 6E
 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
 Bluetooth v5.3**
 USB: Rear USB (Total 8 ports)
 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
 3 x USB 3.2 Gen 2 ports (2 x Type-A
 1 x USB Type-C)
 4 x USB 3.2 Gen 1 ports (4 x Type-A)
 Front USB (Total 7 ports)
 1 x USB 3.2 Gen 2 connector (supports USB Type-C)
 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
 2 x USB 2.0 headers support additional 4 USB 2.0 ports
 Audio: Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC*
 Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
 Back Panel I/O Ports: 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
 3 x USB 3.2 Gen 2 ports (2 x Type-A
 1 x Type-C)
 4 x USB 3.2 Gen 1 ports (4 x Type-A)
 1 x DisplayPort
 1 x HDMI port
 1 x Wi-Fi Module
 1 x Intel 2.5Gb Ethernet port
 3 x Audio jacks
