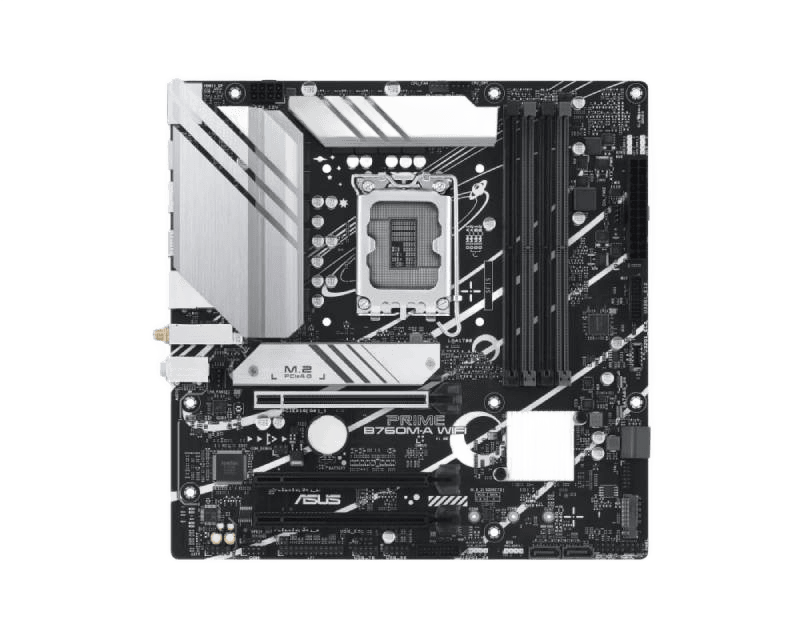

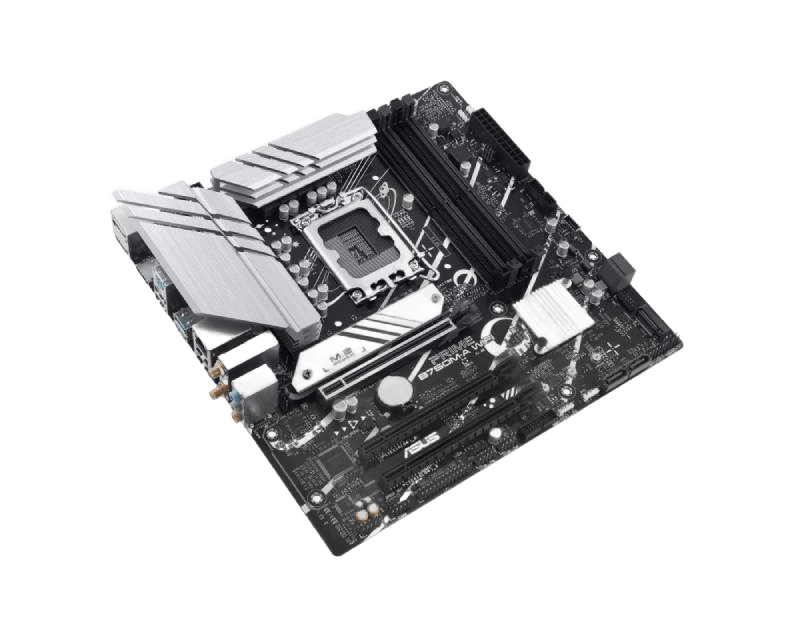

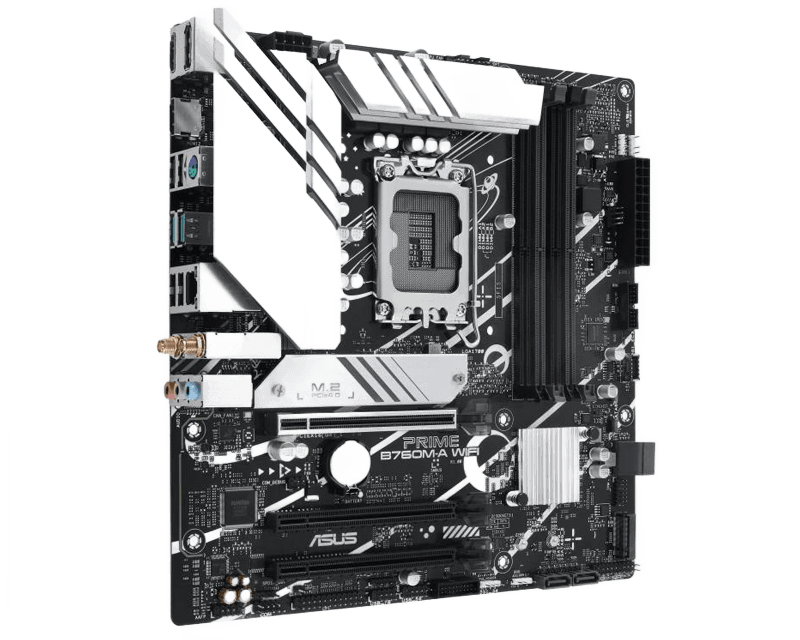

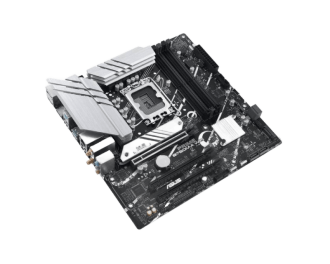

ASUS PRIME B760M WIFI

Варијанта:

− +

8 890 ден.

0 ден.

Не е достапен

Бренд:

ASUS
Шифра:

INS-38-3696-E
Достапен за порачка:

Не е достапен

Да
Број на физички јадра:

6 , 4
Chipset:

Intel B760
RAM type:

DDR5
RAM DIMMs:

2
Капацитет:

128GB
USB Type-C ports:

3 , 1
Dimensions:

244mm x 244mm
Format:

Microatx
Note:

To use certain internal connectors, additional brackets or connectors on the housing are required
Warranty:

36 months
Supported technologies:

Digi + Vrm, Languard, Overvoltage Protection, Q-Led Core, Aura RGB Header, Safeslot Core +, Procol, Vrm Heatsink Design, Addressable Gen 2 Headers, M.2 Heatsink, Stainless-Steel Back I / O
Gaming:

Yeah
DisplayPort ports:

1x DisplayPort 1.4
HDMI connectors:

2x HDMI 2.1
Condition:

Unused
Package:

Screws, 2 x SATA 6GB / s Cable, 1 x ASUS Wi-Fi antenna
Graphics:

Using the processor graphics
Model:

Realtek
Processor bearing (Socket):

Intel 1700
USB ports:

2x USB 10GBPS (3.2 GEN 2), 4x USB 2.0
Audio:

1x Front Panel Audio, 1x S / PDIF output
Standards:

Wi-Fi 6 (802.11ax)
Wired network standards:

2.5GBASE-T (Gigabit)
Bluetooth version:

5.2
Other connections:

1 x 4-pin CPU OPT Fan Header, 1 x 20-3 Pin System Panel Header With Chassis Intrude Fan Header, 1 x 4-pin CPU Fan Header, 1 x 14-1 Pin Spi TPM Header, 1 x Clear CMOS Header, 3 x Addressable Gen 2 Headers, 1 X Aura RGB Header, 1 X LPT Header
USB:

1 x Support for 1 USB 2.0 port, 2 x Support for 4 USB 2.0 ports, 2 x Support for 4 USB 5Gbps ports
PCI Express x16 slot:

1x PCI Express 4.0 (X16 Mode), 1x PCI Express 4.0 (X4 Mode), 1x PCI Express 4.0 (X1 Mode)
SATA ports:

SATA III 6GBPS
Raid:

Raid 0, Raid 1, Raid 5, Raid 10
Channel number:

8 (7.1)
PS / 2:

1 (keyboard or mouse)
Voltage connections:

1 x 24 PIN Main Power Connector, 1 x 8-pin ATX 12V Power Connector
USB-C:

1 x Support for 1 USB 5Gbps port
Other slots:

2x M.2 Slot, 4x SATA III

Начин на испорака

Бесплатна достава во градско подрачје на Скопје за нарачка со вредност поголема од 10000 денари
Подигнување од нашата продавница

Начин на плаќање

Плаќање при подигнување
Фактурно плаќање

Сподели:

Basic characteristics - Socket: Intel 1700 Chipset: Intel B760 Graphics: Using the Memory Processor - Memory type: 4 Supported memory: 4.800MHz, 5.400MHz, 5.600MHz, 5.800MHz (o.c.), 6,000MHz (O.c.), 6,200MHz (O.C.), 6.600MHz (O.C.), 6.800MHz (O.C.), 7.8mhz (O.C.), 7,300MHz (O.C.) Maximum total memory: 128GB Other features: Double-channel Memory mode, OPTIMEM II, Extreme Memory Profile (XMP), Support for non-ECC Udimm Memory Slots: 1x PCI Express 4.0 (X1 Mode), 1x PCI Express 4.0 (X4 Mode) PCI Slot: 3 Other slots: 2x M.2 Slot, 4x SATA III Storage Interface - SATA ports (Total): 4 hours: SATA III 6GBPS Number M.2, RAID 1, RAID 10, RAID 5 Network - Wi-Fi: Da Wi-Fi 6 (802.11ax) Bluetooth: Da Bluetooth Version: 5.2 Audio - Number Channels: 8 (7.1) Model: Realtek Note: Dedicated audio PCB layers, jack-detection, multi-streaming, premium audio capacitors, supports up to 24-bit / 192 KHz Playback Connections - Number of DisplayPort Connections: 1x DisplayPort 1.4 HDMI connections: 2 HDMI 2.1 PS / 2: 1 (Keyboard or Mouse) Total USB ports: 2x USB 10GBPS (3.2 Gen 2), 4x USB 2.0 RJ: 3x 3.5mm Other connections: 1 x Asus Wi-Fi module Internal Connections - Voltage connections: 1 x 24 PIN Main Power Connector, 1 x Support for 1 USB 2.0 port, 2 x Support for 4 USB 5Gbps ports USB-C: 1 x Support for 1 USB 5Gbps Port Audio: 1x Front Panel Audio, 1x S / PDIF Output Serial Port: 1 Other connections: 1 x 14-1 PIN SPI TPM Header Header with Chassis Intrude Function, 1 x 4-pin Chassis Fan Header, 1 x 4-pin CPU OPT Fan Header, 1 x Aura RGB Header, 1 X Clear CMOS Header, 1 x LPT Header, 3 x Addressable Gen 2 Headers Note Additional brackets or accessories on housing Other characteristics - Supported technologies: Addressable Gen 2 Headers, Digi + Vrm, Languard, M.2 Heatsink, Overvoltage Protection, Procool, Q-Dimm, Q-Led Core, Q-Slot, Safeslot Core +, Stainless-Steel Back I / O, Vrm Heatsink: Microatx Dimensions: 244mm X 244m Pack: 1 x ASUS Wi-Fi, 2 x SATA 6GB / s Cable, screws Care: Unused Complaint period - Complaint period: 36 months
