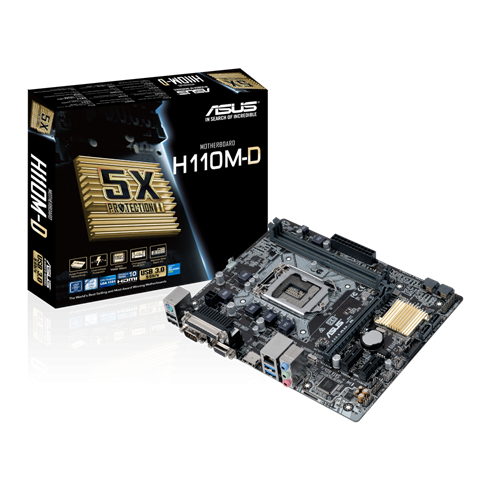

Asus H110M-D motherboard

GENERAL

• Packaged Quantity:  1

• Chipset Type:  Intel H110 Express

• Compatible Processors:  Pentium, Celeron, Core i5, Core i3, Core i7

• Processor Socket:  LGA1151 Socket

• Max Processors Qty:  1

• Manufacturer:  Asus

PROCESSOR / CHIPSET

• Chipset Type:  Intel H110 Express

• Processor Socket:  LGA1151 Socket

EXPANSION / CONNECTIVITY

• Expansion Slots

1 x CPU
2 x DIMM 288-pin
1 x PCIe 3.0 x16
2 x PCIe 2.0 x1

• Storage Interfaces

SATA-600 -connectors: 4 x 7pin Serial ATA - 4 devices

• Internal Interfaces

4 x USB 2.0 - header
2 x USB 3.0 - header
1 x audio - header
1 x SPDIF out - header

• Power Connectors

4-pin ATX12V connector, 24-pin main power connector

PROCESSOR

• Max Supported Qty:  1

• Installed Qty:  0

MEMORY

• Max Allocated RAM Size:  1024 MB

INTERFACE PROVIDED

• Qty:  1, 2

• Type:  HDMI, LAN (Gigabit Ethernet), PS/2 keyboard / mouse, USB 2.0, USB 3.0, VGA, audio line-in, audio line-out, microphone, parallel, serial
• Connector Type:  mini-jack

• Data Link Protocol:  Ethernet, Fast Ethernet, Gigabit Ethernet

• Network Controller:  Realtek RTL8111H

• Network:  Gigabit Ethernet

PROCESSOR / MEMORY / STORAGE

• Max Supported Qty:  1

AUDIO

• Audio Codec:  Realtek ALC887-VD2

• Compliant Standards:  High Definition Audio

MISCELLANEOUS

• Product Type:  motherboard

• Included Accessories:  I/O back plate

VIDEO

• Video Output:  graphics adapter (CPU required)

RAM

• Features:  Intel Extreme Memory Profiles (XMP)

• Max Supported Size:  32 GB

AUDIO OUTPUT

• Compliant Standards:  High Definition Audio

• Type:  sound card

• Audio:  High Definition Audio (8-channel)

GRAPHICS

• Max Allocated RAM Size:  1024 MB

AUDIO & VIDEO

• Max Allocated RAM Size:  1024 MB

• Audio Codec:  Realtek ALC887-VD2

LAN

• Network Interfaces:  Gigabit Ethernet

• Network Controller:  Realtek RTL8111H

SUPPORTED RAM

• Bus Clock:  2133 MHz

• Features:  Intel Extreme Memory Profiles (XMP)

• Registered or Buffered:  Unbuffered

• Max Size:  32 GB

• Technology:  DDR4

• Supported RAM Integrity Check:  Non-ECC

HEADER

• Brand:  ASUS

• Product Line:  ASUS

• Model:  H110M-D

• Packaged Quantity:  1

• Compatibility:  PC

SOFTWARE

• Software Included:  ASUS AI Charger, ASUS AI Suite III, ASUS EZ Flash 3, ASUS EZ Update, Antivirus (OEM version), Media Streamer, Mobo Connect, drivers & utilities

MAINBOARD

• Form Factor:  micro ATX

• Processor Socket:  LGA1151 Socket

• Compatible Processors:  Celeron, Core i3, Core i5, Core i7, Pentium

• Chipset Type:  Intel H110 Express

• Supported RAM Technology:  DDR4 SDRAM

• Supported RAM Speed:  2133 MHz

• Supported RAM Integrity Check:  non-ECC

• Supported RAM (Registered or Buffered):  unbuffered

• RAM Slots:  2 DIMM slots

• Power Connectors:  24-pin main power connector, 4-pin ATX12V connector

DIMENSIONS & WEIGHT

• Width:  8.9 in

• Depth:  7.3 in

INTERFACES

• Storage:  Serial ATA-600

• Storage Ports:  4 x SATA-600

• USB 3.0 / FireWire:  USB 3.0

• USB / FireWire Ports Configuration (Active):  2 x USB 3.0 + 2 x USB 2.0

CABLE DETAILS

• Type:  Serial ATA cable

• Included Qty:  2

EXPANSION SLOTS

• Total Qty:  1, 2

• Type:  CPU, DIMM 288-pin, PCIe 2.0 x1, PCIe 3.0 x16

VIDEO MEMORY

• Max Allocated RAM Size:  1024 MB

STORAGE INTERFACES

• Interface:  Serial ATA-600

• Connector(s):  4 x 7pin Serial ATA
• Supported Devices Qty:  4

INTERNAL INTERFACES

• Type:  SPDIF out, USB 2.0, USB 3.0, audio

• Connector Type:  header

• Qty:  1, 2, 4
